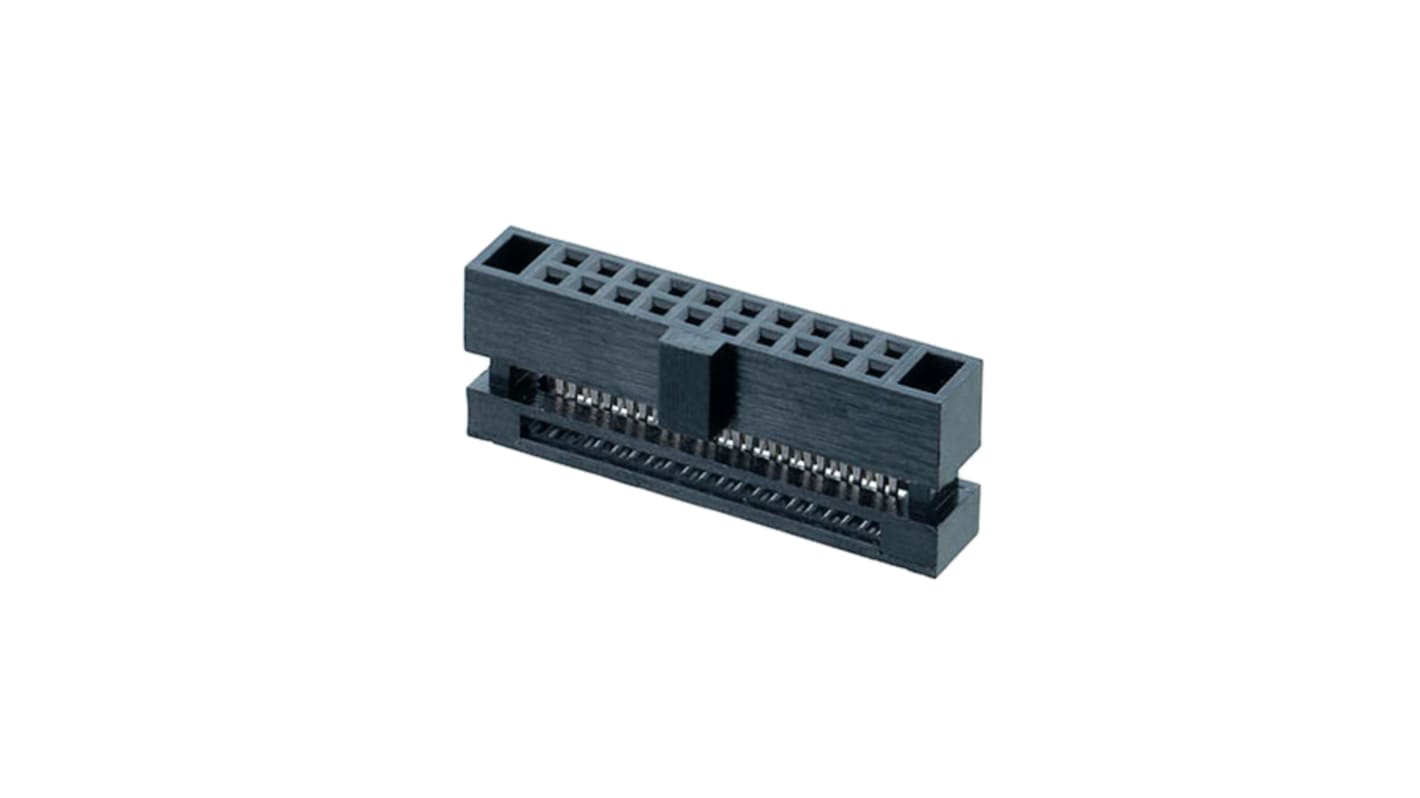

HARWIN 20-Way IDC Connector Female for Cable, 2 Row

Name: HARWIN 20-Way IDC Connector Female for Cable, 2 Row
Brand: HARWIN
SKU: 161-3637
Price: 3.64 GBP
Availability: InStock

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 1 unit)*

£3.03

(exc. VAT)

£3.64

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	HARWIN
	Number of Contacts	20
	Product Type	IDC Connector
	Number of Rows	2
	Current	1A
	Pitch	1.27mm
	Connector Gender	Female
	Shrouded/Unshrouded	Shrouded
	Voltage	1kV ac
	Mount Type	Cable
	Orientation	Straight
	Contact Plating	Gold, Tin over Nickel
	Series	Archer M50
	Minimum Operating Temperature	-40°C
	Termination Type	Crimp
	Maximum Operating Temperature	105°C
	Contact Gender	Female
	Standards/Approvals	No
	Housing Material	Polybutylene Terephthalate
	Contact Material	Phosphor Bronze

	Select all
	Brand HARWIN
	Number of Contacts 20
	Product Type IDC Connector
	Number of Rows 2
	Current 1A
	Pitch 1.27mm
	Connector Gender Female
	Shrouded/Unshrouded Shrouded
	Voltage 1kV ac
	Mount Type Cable
	Orientation Straight
	Contact Plating Gold, Tin over Nickel
	Series Archer M50
	Minimum Operating Temperature -40°C
	Termination Type Crimp
	Maximum Operating Temperature 105°C
	Contact Gender Female
	Standards/Approvals No
	Housing Material Polybutylene Terephthalate
	Contact Material Phosphor Bronze

Double Row Female IDC connector with polarisation - 20 contacts (10+10).

Gold finish on contact area, Tin finish on termination.

For use with 0.635mm pitch, 30AWG ribbon cable.
