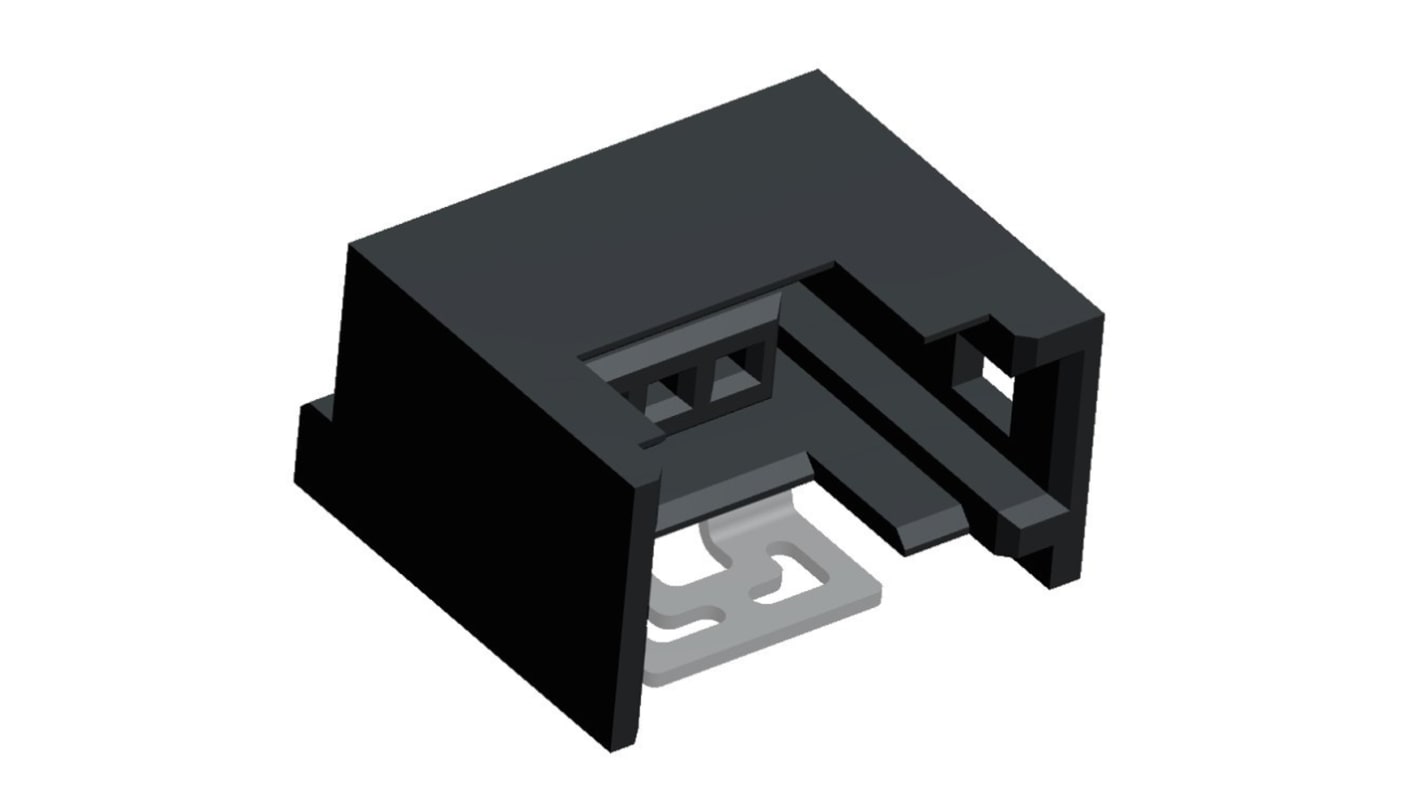

TE Connectivity 3-Way RITS Connector Male for PCB, 1 Row

RS Stock No.:: 144-0580
Mfr. Part No.:: 1565994-3
Brand:: TE Connectivity

TE Connectivity 3-Way RITS Connector Male for PCB, 1 Row

Bulk discount available

Subtotal (1 unit)*

£2.63

(exc. VAT)

£3.16

(inc. VAT)

Add 20 units to get free delivery

Orders below £50.00 (exc. VAT) cost £6.95.

Temporarily out of stock

Shipping from 10 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£2.63
10 - 24	£2.52
25 - 49	£2.31
50 - 99	£2.19
100 +	£2.11

*price indicative

RS Stock No.:: 144-0580
Mfr. Part No.:: 1565994-3
Brand:: TE Connectivity

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Number of Contacts	3
	Product Type	RITS Connector
	Number of Rows	1
	Current	3A
	Pitch	2mm
	Mount Type	PCB
	Connector Gender	Male
	Shrouded/Unshrouded	Shrouded
	Voltage	32.0 V dc
	Orientation	Straight
	Contact Plating	Gold
	Minimum Operating Temperature	-30°C
	Series	1565994
	Termination Type	Solder
	Contact Gender	Female
	Maximum Operating Temperature	75°C
	Standards/Approvals	No
	Housing Material	Thermoplastic
	Contact Material	Copper Alloy

	Select all
	Brand TE Connectivity
	Number of Contacts 3
	Product Type RITS Connector
	Number of Rows 1
	Current 3A
	Pitch 2mm
	Mount Type PCB
	Connector Gender Male
	Shrouded/Unshrouded Shrouded
	Voltage 32.0 V dc
	Orientation Straight
	Contact Plating Gold
	Minimum Operating Temperature -30°C
	Series 1565994
	Termination Type Solder
	Contact Gender Female
	Maximum Operating Temperature 75°C
	Standards/Approvals No
	Housing Material Thermoplastic
	Contact Material Copper Alloy

TE Connectivity RITS PCB Header Connectors

RITS (Remote Input/Output Terminal System) PCB header connectors with a high density 2.0 mm centreline designed for use as the standard Interface connector for sensors. These RITS PCB headers are designed to mate with the RITS cable mount plug connectors. Polarization features provide correct alignment to the mating plug and a secure connection is provided by a retention latch. The vertical mounting RITS headers feature solder retention pegs for a secure connection to the PCB. The right angle SMT headers (part numbers x-1565994-x) feature mounting bosses

Features and Benefits

• Space saving 2 mm pitch

• Stackable design

• Polarization features to prevent mismating

• Retention latch for secure mating connection

• Solder pegs for secure retention to PCB

Product Application Information

These RITS connectors are the standard Interface connector for sensors and are used in a wide range of factory automation (FA) applications. These applications include industrial control IPC/PLC, HMI (Human Machine Interfaces), robotics, Semiconductor and LCD manufacturing machines, material handling and conveyor systems, elevators and escalators

2.0mm Tyco RITS™ Connector System

The RITS connector (Remote I/O Terminal System) from Tyco Electronics is the new termination standard developed in Japan to solve non-compatibility issue when terminating sensors to Programmable Logic Controllers (PLC). RITS is a quick and highly reliable wire-to-board and wire-to-wire connection system that reduces installation time by up to 80% in Factory Automation applications. Chisel Press Contact termination technology enables larger contact by the chisel shaped contact which pierces into the cable and secures a larger contact area. The retention mechanism retains the cable at higher retention force than IDC connectors. The press function will keep the contact pressure for the life of the connection.
