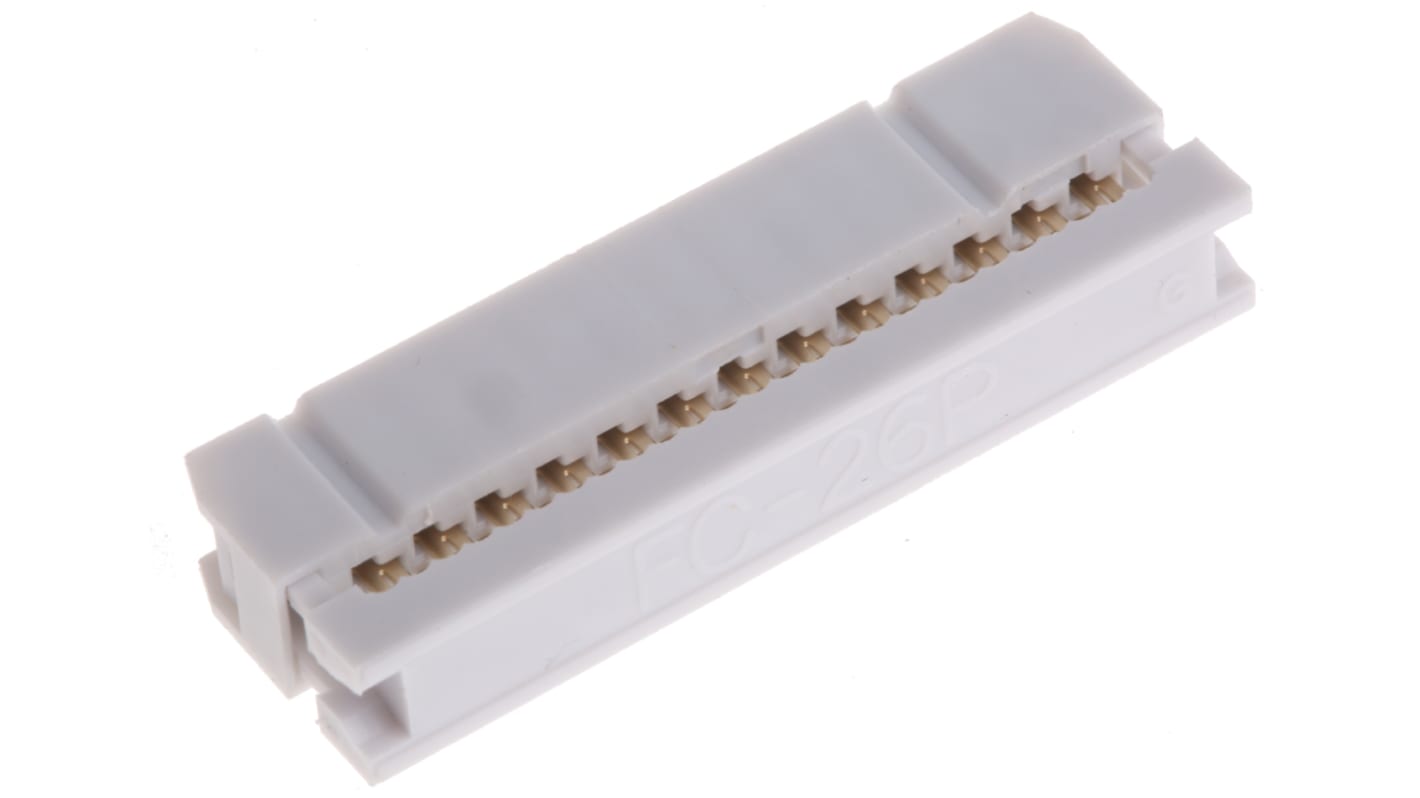

RS PRO 26-Way IDC Connector Socket for Cable Mount, 2-Row
- RS Stock No.:
- 471-222
- Distrelec Article No.:
- 304-04-284
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£3.33
(exc. VAT)
£4.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 826 unit(s) shipping from 27 October 2025
- Plus 37 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £3.33 |
| 25 - 74 | £2.93 |
| 75 - 199 | £2.65 |
| 200 - 399 | £2.36 |
| 400 + | £2.15 |
*price indicative
- RS Stock No.:
- 471-222
- Distrelec Article No.:
- 304-04-284
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 26 | |
| Number of Rows | 2 | |
| Gender | Female | |
| Pitch | 2.54mm | |
| Mounting Type | Cable Mount | |
| Body Orientation | Straight | |
| Termination Method | IDC | |
| Current Rating | 1A | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -45.0°C | |
| Maximum Operating Temperature | 105.0°C | |
| Housing Material | Glass Fibre Reinforced PET | |
| Contact Material | Phosphor Bronze | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 26 | ||
Number of Rows 2 | ||
Gender Female | ||
Pitch 2.54mm | ||
Mounting Type Cable Mount | ||
Body Orientation Straight | ||
Termination Method IDC | ||
Current Rating 1A | ||
Contact Plating Gold | ||
Minimum Operating Temperature -45.0°C | ||
Maximum Operating Temperature 105.0°C | ||
Housing Material Glass Fibre Reinforced PET | ||
Contact Material Phosphor Bronze | ||
- COO (Country of Origin):
- TW
RS PRO Universal PCB Box Headers and ICD Ribbon Cable Sockets
This Range of RS PRO 2.54mm pitch PCB mount box headers and IDC ribbon cable sockets are compatible with connectors conforming to BS9525-F0023. They feature grey UL94V rated glass filled polyester housings and gold flash plated contacts and terminations and are fully shrouded with long ejection latches either side.
The 2.54mm universal IDC ribbon cable sockets have no centre bump, have an open design making them a versatile component suitable for daisy chaining and are supplied part assembled with a strain relief for rapid cable insertion.
The 2.54mm universal IDC ribbon cable sockets have no centre bump, have an open design making them a versatile component suitable for daisy chaining and are supplied part assembled with a strain relief for rapid cable insertion.
Applications
These RS PRO Universal PCB Box Headers and ICD Ribbon Cable Sockets can be used for many versatile applications.
Prototype development
Medical equipment
Consumer electronics
Data storage devices
Industrial automation
Prototype development
Medical equipment
Consumer electronics
Data storage devices
Industrial automation
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Approvals
UL recognised
Approvals
Sockets UL (E153329); headers UL (E119708)
Standards
IDC
