WAGO 3-Way IDC Connector for PCB, 1 Row
- RS Stock No.:
- 220-979
- Mfr. Part No.:
- 893-269
- Brand:
- WAGO
Subtotal (1 box of 50 units)*
£803.46
(exc. VAT)
£964.15
(inc. VAT)
Stock information currently inaccessible - Please check back later
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £803.46 | £16.069 |
*price indicative
- RS Stock No.:
- 220-979
- Mfr. Part No.:
- 893-269
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 3 | |
| Product Type | IDC Connector | |
| Number of Rows | 1 | |
| Current | 3A | |
| Voltage | 5V | |
| Mount Type | PCB | |
| Contact Plating | Tin | |
| Termination Type | IDC | |
| Minimum Operating Temperature | -35°C | |
| Series | WINSTA IDC | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | IEC/EN 60664-1 | |
| Contact Material | Copper Alloy | |
| Housing Material | Polyamide 66 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 3 | ||
Product Type IDC Connector | ||
Number of Rows 1 | ||
Current 3A | ||
Voltage 5V | ||
Mount Type PCB | ||
Contact Plating Tin | ||
Termination Type IDC | ||
Minimum Operating Temperature -35°C | ||
Series WINSTA IDC | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals IEC/EN 60664-1 | ||
Contact Material Copper Alloy | ||
Housing Material Polyamide 66 | ||
- COO (Country of Origin):
- CH

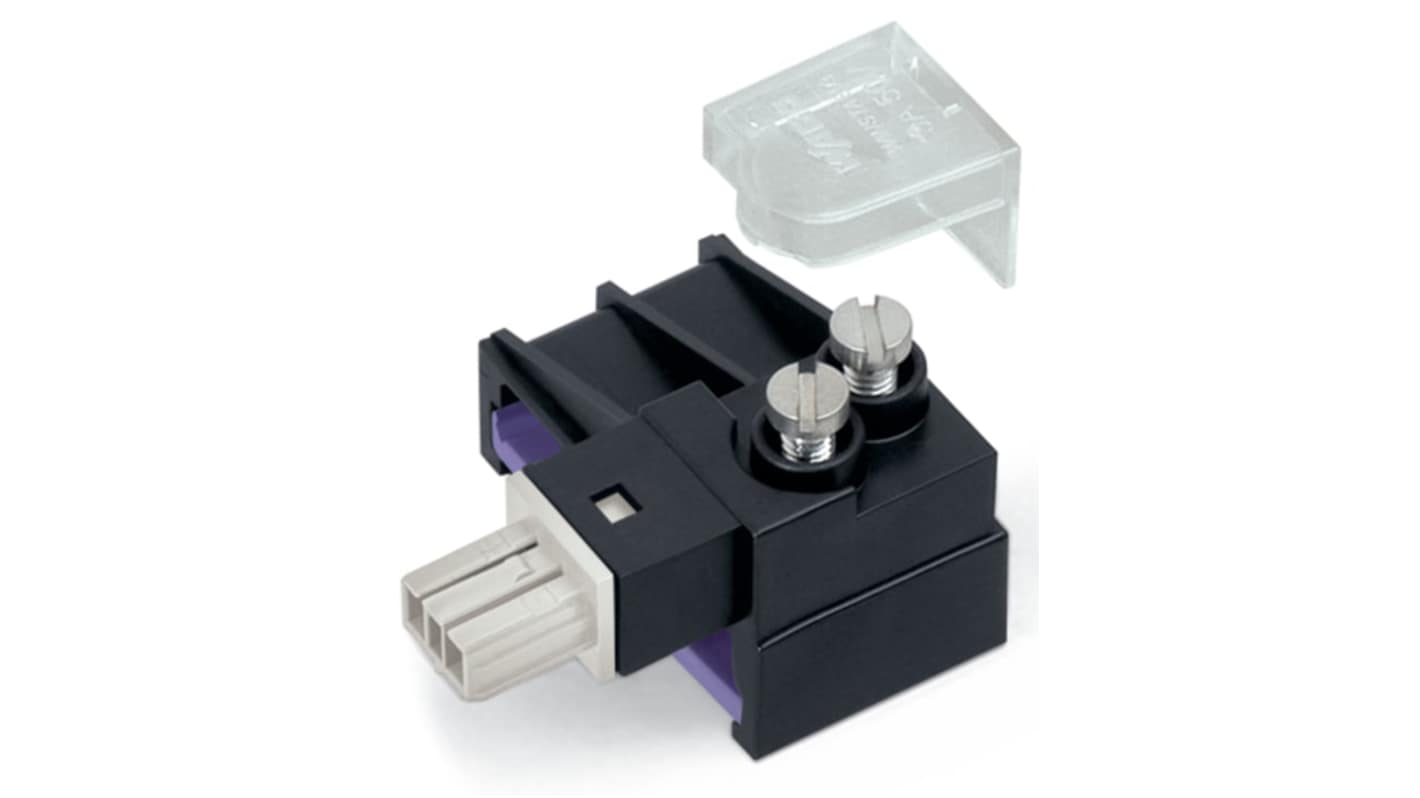

The Wago Tap off module revolutionises your electrical connections with its efficient design and exceptional functionality. This innovative module is tailored for flat cables, accommodating various conductor sizes for flexible applications. Fitted with insulation material of high quality polyamide, it ensures durability while preventing mismating with effective coding mechanisms. The advanced design not only enhances installation speed but also curtails the risk of errors, making it an ideal choice for both new builds and retrofits.
High quality materials ensure longevity and reliability
Easy integration reduces installation time for electrical connections
Fully compliant with RoHS standards for environmental safety
Rated for a continuous operating temperature range suitable for diverse environments
Robust retention force guarantees secure plug in connections
