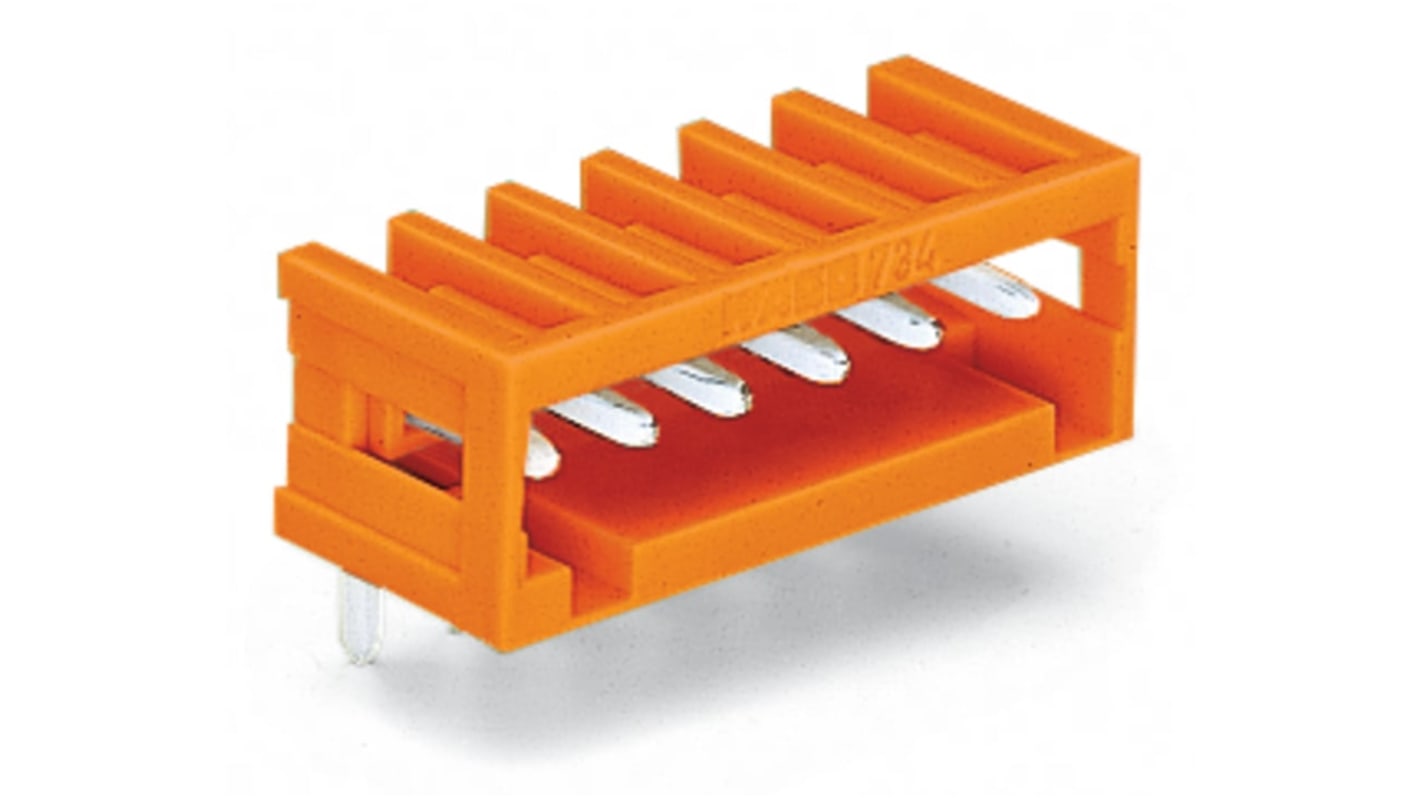

WAGO 734 Series Angled Through Hole Header, 9 Contact(s), 3.5 mm Pitch, 1 Row, Shrouded
- RS Stock No.:
- 222-754
- Mfr. Part No.:
- 734-269
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£207.05
(exc. VAT)
£248.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £207.05 | £2.071 |
*price indicative
- RS Stock No.:
- 222-754
- Mfr. Part No.:
- 734-269
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 734 | |
| Product Type | Header | |
| Pitch | 3.5mm | |
| Current | 10A | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 9 | |
| Number of Rows | 1 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | MCS | |
| Contact Material | Electrolytic Copper | |
| Contact Plating | Tin | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 60°C | |
| Row Pitch | 3.5mm | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.8mm | |
| Contact Gender | Male | |
| Mating Pin Length | 3.8mm | |
| Standards/Approvals | DIN EN 61984 | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 734 | ||
Product Type Header | ||
Pitch 3.5mm | ||
Current 10A | ||
Housing Material Polyamide 66 | ||
Number of Contacts 9 | ||
Number of Rows 1 | ||
Orientation Angled | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System MCS | ||
Contact Material Electrolytic Copper | ||
Contact Plating Tin | ||
Termination Type Solder | ||
Minimum Operating Temperature 60°C | ||
Row Pitch 3.5mm | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.8mm | ||
Contact Gender Male | ||
Mating Pin Length 3.8mm | ||
Standards/Approvals DIN EN 61984 | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Wago THT Male Header is a versatile connection solution, designed with precision and reliability in mind. Featuring a compact 9 pole configuration, this connector ensures robust performance with enhanced protection against mismating. The angled solder pins allow for efficient space utilisation, making it suitable for both horizontal and vertical PCB mounting. With a pin spacing of 3.81 mm, this durable component is crafted to withstand demanding applications while delivering consistent electrical connectivity.
Anti rotation protection ensures stable connections in dynamic environments
Constructed from high quality polyamide material for added durability
Connector supports both horizontal and vertical mounting configurations
Compliant with RoHS standards for a safer environmental impact
Lightweight design facilitates easy handling and installation
