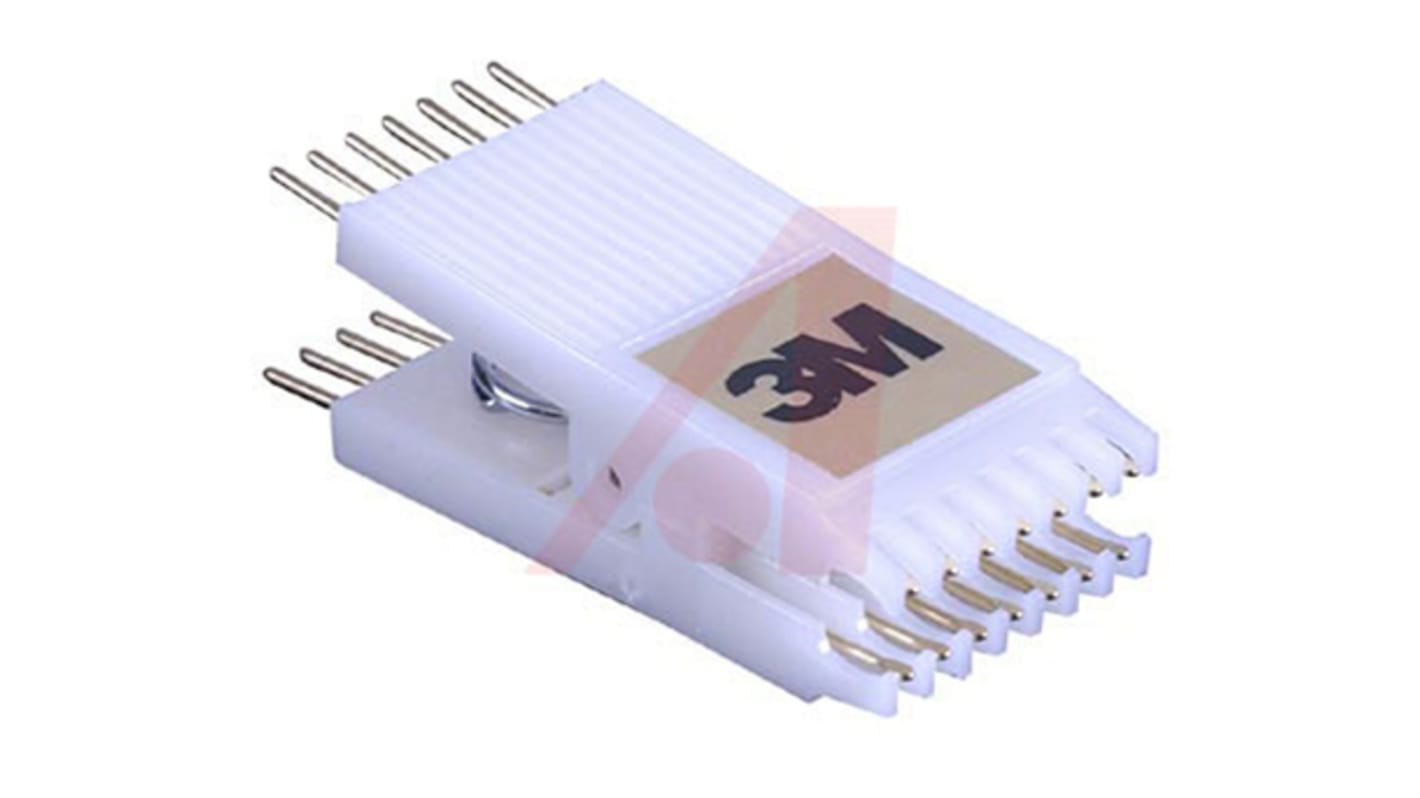

3M IC Test Clip, 14 Way, DIP

  • RS Stock No. 842-0629
  • Mfr. Part No. 923739-14
  • Brand 3M
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

IC Test Clips - 3M

Professional IC test clips with nickel silver alloy contacts in a high grade thermoplastic moulding
Features are wiping action ’duck bill’ contacts for optimum electrical reliability, heavy duty spring for firm uniform contact pressure, and an open nose design that permits probe access directly at the Dual-In-Line (DIP) package pins.
The contact comb fits between DIP package leads to eliminate electrical shorting hazards
The test clips can be used with standard DIP packages up to 14, 16, 20, 24, 28 and 40 pins
Body material High Grade Thermoplastic, Gold plating
Contact Material Nickel Silver Alloy
Operating Temperature -55°C to +165°C
Flammability UL 94 V-0
Current rating 2A

Specifications
Attribute Value
Number of Ways 14
Contact Plating Gold
Package Style DIP
Available to back order for despatch 13/11/2020
Price Each (In a Pack of 25)
£ 22.283
(exc. VAT)
£ 26.74
(inc. VAT)
Units
Per unit
Per Pack*
25 +
£22.283
£557.075
*price indicative
