Yamaichi 0.65mm Pitch 80 Way SMT QFP Test IC Socket
- RS Stock No.:
- 432-0651
- Mfr. Part No.:
- IC51-0804-956-2
- Brand:
- Yamaichi

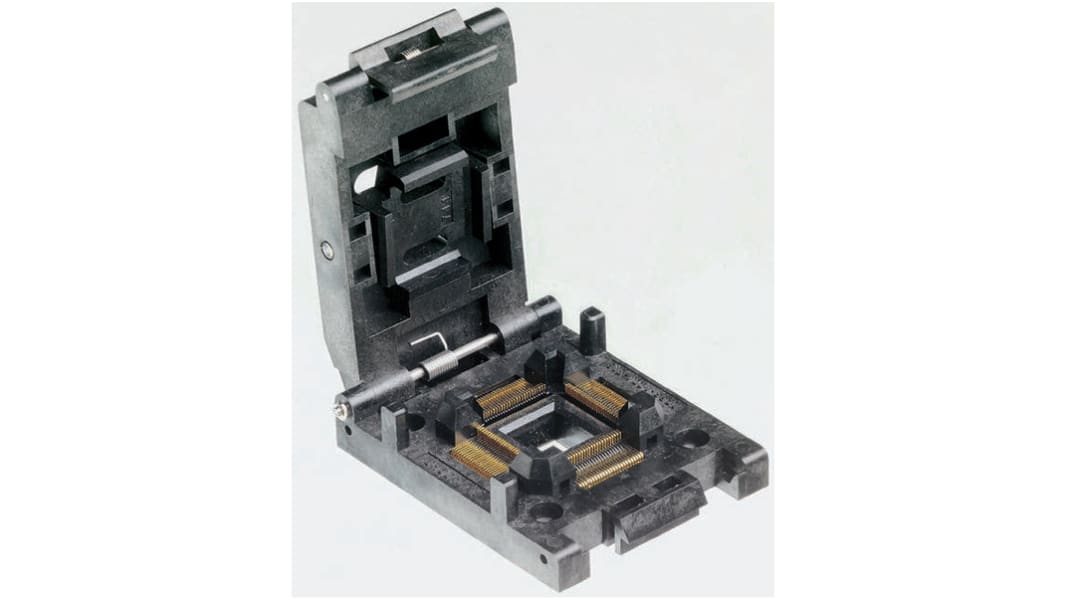

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£188.37
(exc. VAT)
£226.04
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £188.37 |
| 25 - 74 | £183.28 |
| 75 - 199 | £178.39 |
| 200 - 399 | £173.86 |
| 400 + | £169.54 |
*price indicative
- RS Stock No.:
- 432-0651
- Mfr. Part No.:
- IC51-0804-956-2
- Brand:
- Yamaichi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Yamaichi | |
| IC Socket Type | Test Socket | |
| Package Type | QFP | |
| Gender | Female | |
| Number of Contacts | 80 | |
| Pitch | 0.65mm | |
| Body Orientation | Straight | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel | |
| Socket Mounting Type | Surface Mount | |
| Termination Method | Solder | |
| Housing Material | PEI, PES, PSU | |
Select all | ||
|---|---|---|
Brand Yamaichi | ||
IC Socket Type Test Socket | ||
Package Type QFP | ||
Gender Female | ||
Number of Contacts 80 | ||
Pitch 0.65mm | ||
Body Orientation Straight | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel | ||
Socket Mounting Type Surface Mount | ||
Termination Method Solder | ||
Housing Material PEI, PES, PSU | ||
QFP Test Sockets - Clamshell
Clamshell test sockets for QFP's
Spring loaded hinged lid latches to retain ICs
Easy, repeatable access for test purposes
High reliability, durability and temperature range
Range supports a variety of pitches
Body material Glass Filled PES; Glass Filled PEI
Contact material Beryllium Copper
Contact plating Gold
Insulation Resistance 1000 MΩ (At 500 Vdc)
Contact resistance 30mΩ (at 10mA)
Operating temperature -55°C to 170°C
Durability 10000 insertions
Spring loaded hinged lid latches to retain ICs
Easy, repeatable access for test purposes
High reliability, durability and temperature range
Range supports a variety of pitches
Body material Glass Filled PES; Glass Filled PEI
Contact material Beryllium Copper
Contact plating Gold
Insulation Resistance 1000 MΩ (At 500 Vdc)
Contact resistance 30mΩ (at 10mA)
Operating temperature -55°C to 170°C
Durability 10000 insertions
