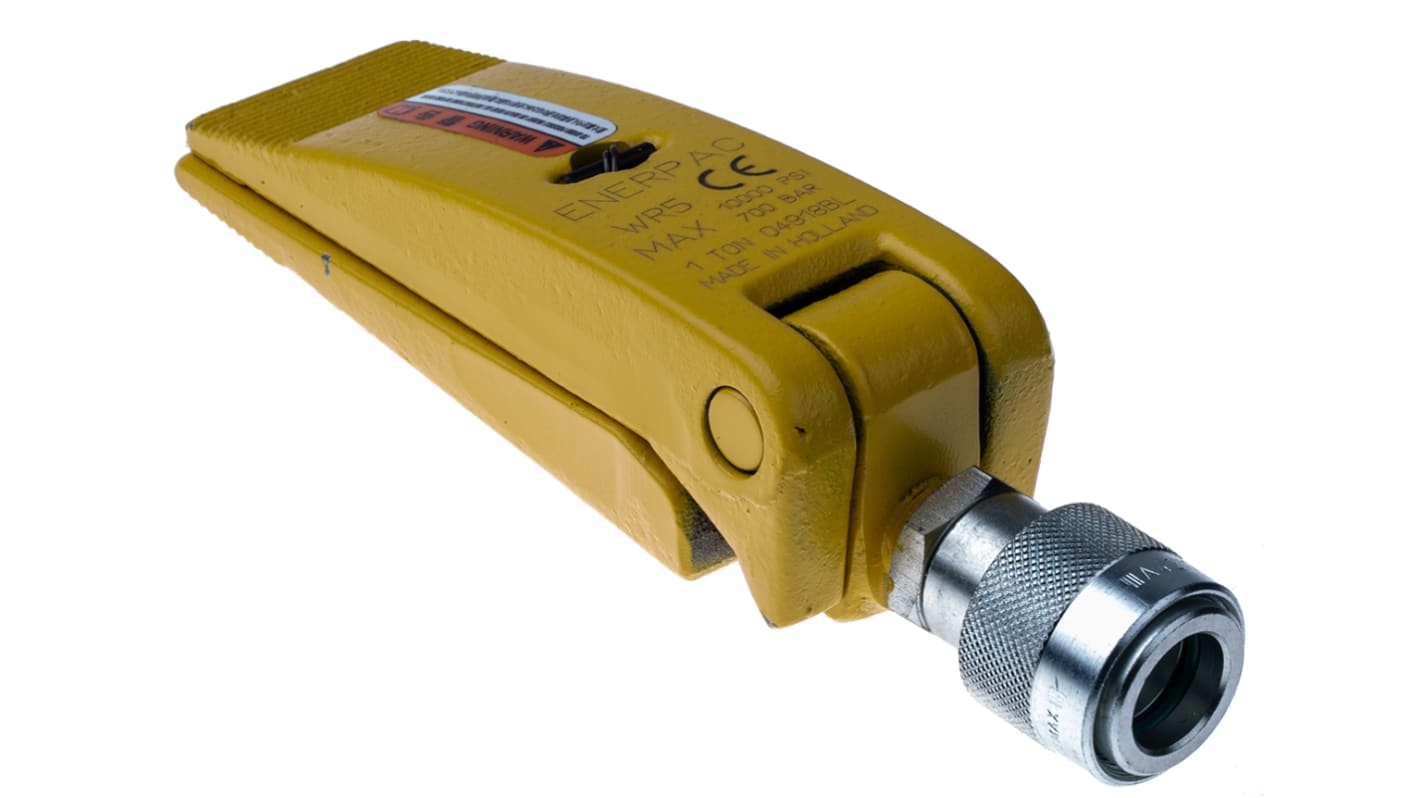

Enerpac Hydraulic Wedge Cylinder, 700 bar 1 t 3/8-18 WR
- RS Stock No.:
- 311-1579
- Mfr. Part No.:
- WR5
- Brand:
- Enerpac
Subtotal (1 unit)*
£419.61
(exc. VAT)
£503.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 42 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £419.61 |
*price indicative
- RS Stock No.:
- 311-1579
- Mfr. Part No.:
- WR5
- Brand:
- Enerpac
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Enerpac | |
| Product Type | Hydraulic Wedge Cylinder | |
| Maximum Spread | 94mm | |
| Sub Type | Spread Cylinder | |
| Maximum Height | 51mm | |
| Maximum Operating Pressure | 700 bar | |
| Thread Standard | NPTF | |
| Thread Size | 3/8-18 | |
| Cylinder Capacity | 1t | |
| Tip Clearance | 12.8mm | |
| Standards/Approvals | No | |
| Weight | 2.3kg | |
| Minimum Height | 51mm | |
| Series | WR | |
| Select all | ||
|---|---|---|
Brand Enerpac | ||
Product Type Hydraulic Wedge Cylinder | ||
Maximum Spread 94mm | ||
Sub Type Spread Cylinder | ||
Maximum Height 51mm | ||
Maximum Operating Pressure 700 bar | ||
Thread Standard NPTF | ||
Thread Size 3/8-18 | ||
Cylinder Capacity 1t | ||
Tip Clearance 12.8mm | ||
Standards/Approvals No | ||
Weight 2.3kg | ||
Minimum Height 51mm | ||
Series WR | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
Hydraulic Wedge Cylinder
Single acting, spring return
For use when positioning and lifting heavy loads in confined working areas
Fitted with a female high flow coupler
Requires a high pressure pump and hose link, available separately
