RS PRO Steel Female Hydraulic Quick Connect Coupling, BSP 1 Female
- RS Stock No.:
- 745-4729
- Brand:
- RS PRO
Subtotal (1 unit)*
£47.13
(exc. VAT)
£56.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 34 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £47.13 |
*price indicative
- RS Stock No.:
- 745-4729
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Thread | BSP 1 Female | |
Coupling Gender | Female | |
Material | Steel | |
Compatible With | Faster ANV Series, Hansen HA 15000 (Gromelle), Intertraco A Series, Safeway S565, Stucchi BIR Series | |
Type | Union | |
Locking Style | Ball Lock | |
Finish | Yellow Passivated, Zinc Plated | |
Seal Material | Nitrile Rubber | |
Thread Standard | BSP | |
Thread Gender | Female | |
Maximum Operating Pressure | 230 bar | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Thread BSP 1 Female | ||
Coupling Gender Female | ||
Material Steel | ||
Compatible With Faster ANV Series, Hansen HA 15000 (Gromelle), Intertraco A Series, Safeway S565, Stucchi BIR Series | ||
Type Union | ||
Locking Style Ball Lock | ||
Finish Yellow Passivated, Zinc Plated | ||
Seal Material Nitrile Rubber | ||
Thread Standard BSP | ||
Thread Gender Female | ||
Maximum Operating Pressure 230 bar | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -25°C | ||
Non Compliant
- COO (Country of Origin):
- TR

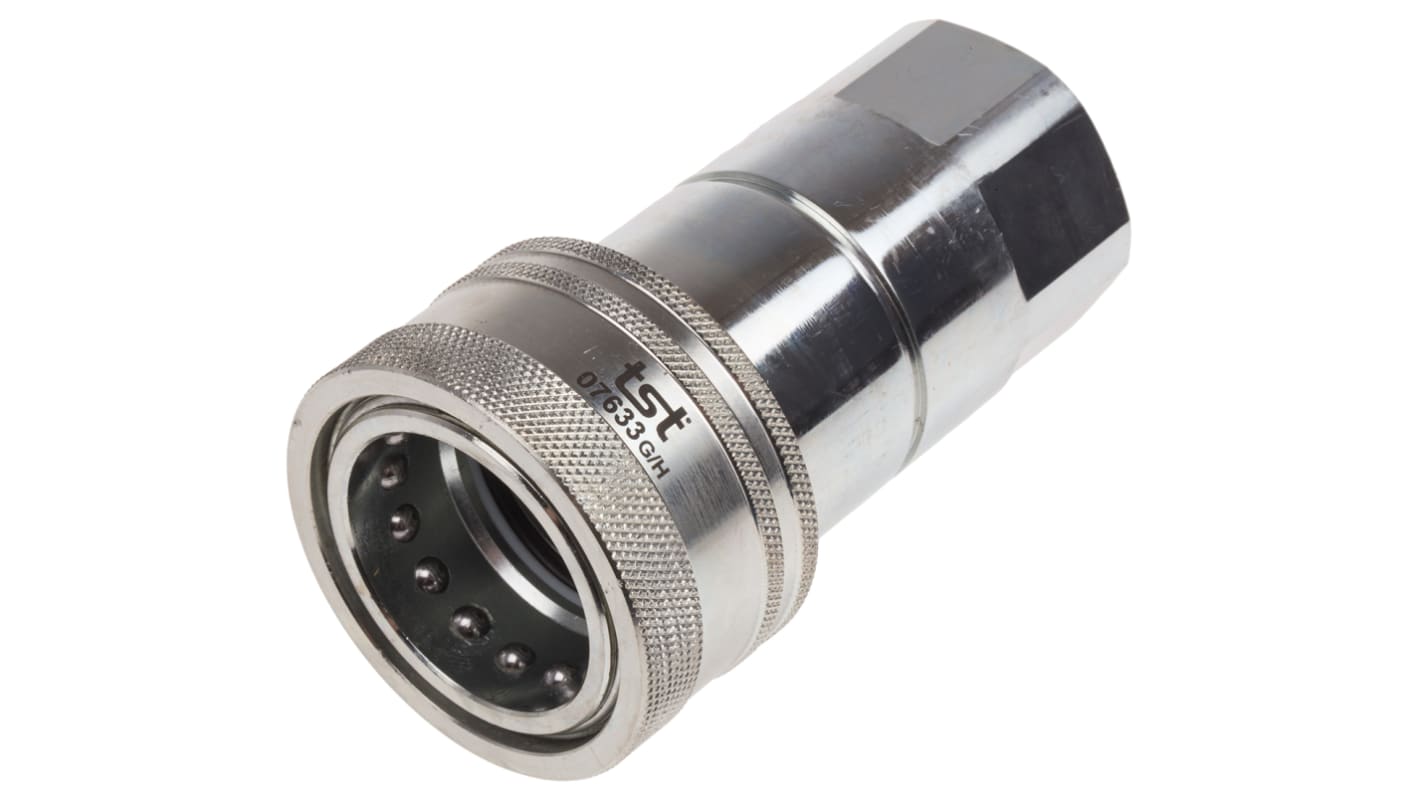

RS PRO Steel Female Hydraulic Quick Connect Coupling, BSP 1 Female
This female hydraulic quick coupling from RS PRO has a built-in valve to immediately shut the fluid flow off when disconnected, preventing the leak of hydraulic fluid, including at low pressures. They are built with ball bearings inside the collar to allow a plug to freely rotate inside the socket, even when under pressure. This ensures the hoses don't get twisted and preventing damage. The collar also allows for a quick disconnect of the couplers without the need for any tools.
The coupler is designed to be resilient which, along with the wide supported pressure and temperature range, makes it ideal for use in industrial or agricultural applications. This socket should be used on the supply side of the system, due to the design of the seal on the male connector.
The coupler is designed to be resilient which, along with the wide supported pressure and temperature range, makes it ideal for use in industrial or agricultural applications. This socket should be used on the supply side of the system, due to the design of the seal on the male connector.
Features and Benefits
• Compatible with Faster ANV Series, Hansen HA 15000 (Gromelle), Intertraco A Series, Safeway S565, Stucchi BIR Series
• Female coupling gender
• Yellow passivated, zinc-plated finish
• Ball-lock locking style
• Steel material
• Maximum operating pressure of 230 bar
• Operating temperature range of -25°C to +125°C
• Nitrile rubber seal material
• Female thread
• Thread standard is BSP (British Standard Pipe)
• Union type
• Female coupling gender
• Yellow passivated, zinc-plated finish
• Ball-lock locking style
• Steel material
• Maximum operating pressure of 230 bar
• Operating temperature range of -25°C to +125°C
• Nitrile rubber seal material
• Female thread
• Thread standard is BSP (British Standard Pipe)
• Union type
