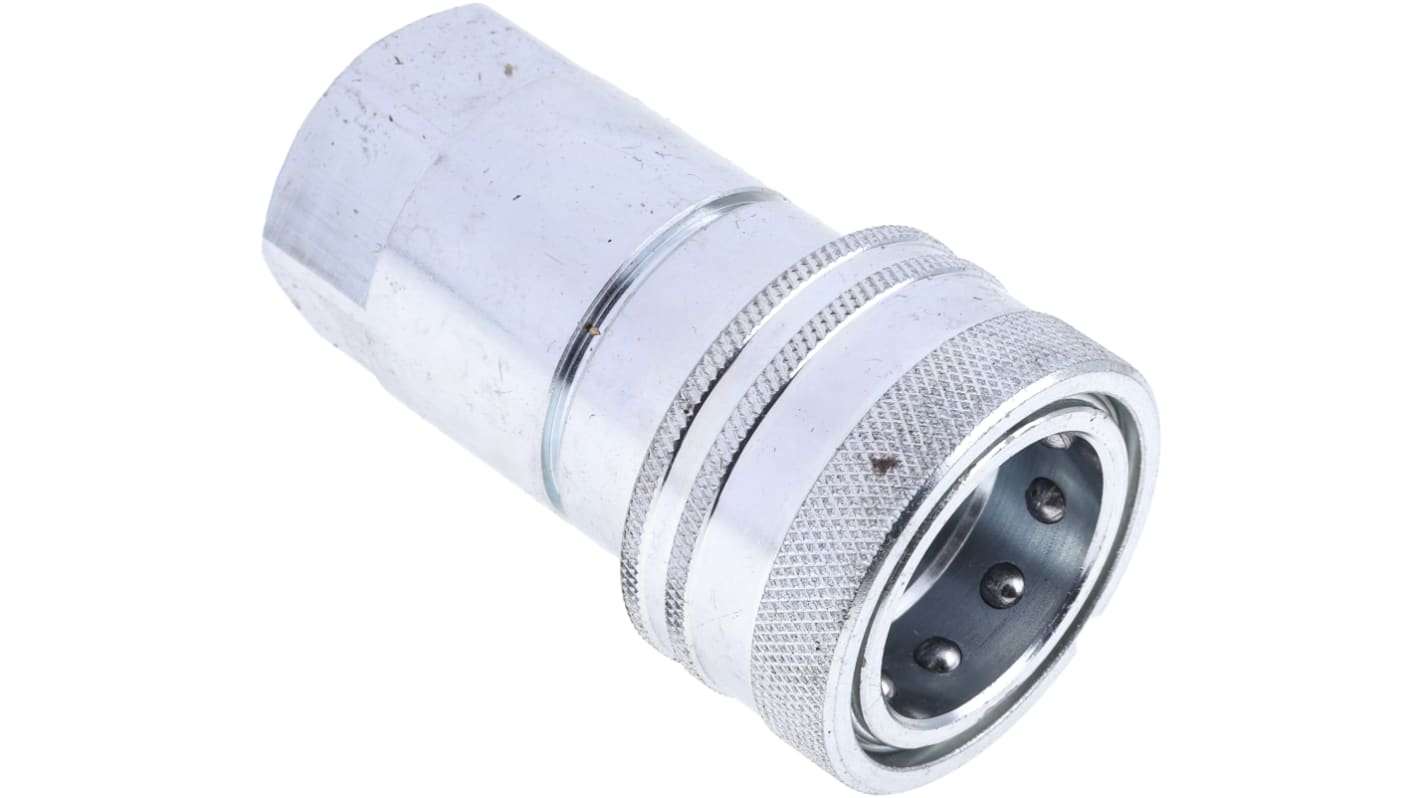

RS PRO Steel Hydraulic Quick Connect Coupling Female BSP 3/4 in, 250 bar
- RS Stock No.:
- 745-4697
- Brand:
- RS PRO
Subtotal (1 unit)*
£29.41
(exc. VAT)
£35.29
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 45 unit(s) ready to ship
- Plus 24 unit(s) ready to ship from another location
- Plus 40 unit(s) shipping from 17 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £29.41 |
*price indicative
- RS Stock No.:
- 745-4697
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hydraulic Quick Connect Coupling | |
| Thread Size | 3/4 in | |
| Material | Steel | |
| Lock Type | Ball Lock | |
| Sub Type | Union | |
| Finish | Passivated Zinc Plated | |
| Minimum Operating Temperature | -25°C | |
| Thread Standard | BSP | |
| Thread Gender | Female | |
| Maximum Operating Pressure | 250 bar | |
| Standards/Approvals | ANSI/ESD S20.20:2014 | |
| Maximum Operating Temperature | 125°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hydraulic Quick Connect Coupling | ||
Thread Size 3/4 in | ||
Material Steel | ||
Lock Type Ball Lock | ||
Sub Type Union | ||
Finish Passivated Zinc Plated | ||
Minimum Operating Temperature -25°C | ||
Thread Standard BSP | ||
Thread Gender Female | ||
Maximum Operating Pressure 250 bar | ||
Standards/Approvals ANSI/ESD S20.20:2014 | ||
Maximum Operating Temperature 125°C | ||
Non Compliant
- COO (Country of Origin):
- TR
RS PRO Steel Female Hydraulic Quick Connect Coupling, BSP 3/4 Female
This quick coupler from RS PRO is compatible with various existing standards to allow it to work with the systems you already have. The connector has a built-in shut-off valve to prevent leakage of the hydraulic fluid when the connection is released. This female socket has a quick release collar so you can disconnect it from the plug without requiring any tools.
The wide pressure and temperature ratings coupled with a tough and resilient design make this connector ideal for industrial and agricultural applications. Due to the design of the seal on the matching connector, this socket should be used on the supply side of the hydraulic system. The barrel of the connector contains a ring of ball bearings to ensure that the couplers can easily rotate, even when the system is pressurised, ensuring that the connecting hoses are protected from twisting.
Features and Benefits
• Compatible with Faster ANV Series, Hansen HA 15000 (Gromelle), Intertraco A Series, Safeway S565, Stucchi BIR Series
• Female coupling gender
• Yellow passivated, zinc-plated finish
• Ball-lock locking style
• Steel material
• Maximum operating pressure of 250 bar
• Operating temperature range of -25°C to +125°C
• Nitrile rubber seal material
• 3/4 in female thread
• Thread standard is BSP (British Standard Pipe)
• Union type
