RS PRO Steel Male Hydraulic Quick Connect Coupling, BSP 3/8 Male
- RS Stock No.:
- 745-4722
- Brand:
- RS PRO
185 In stock - FREE next working day delivery available
30 available from Europe for delivery within 1 working day(s).
Added
Price Each
£7.47
(exc. VAT)
£8.96
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £7.47 |
| 5 - 9 | £7.23 |
| 10 + | £7.01 |
- RS Stock No.:
- 745-4722
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- TR
Product Details

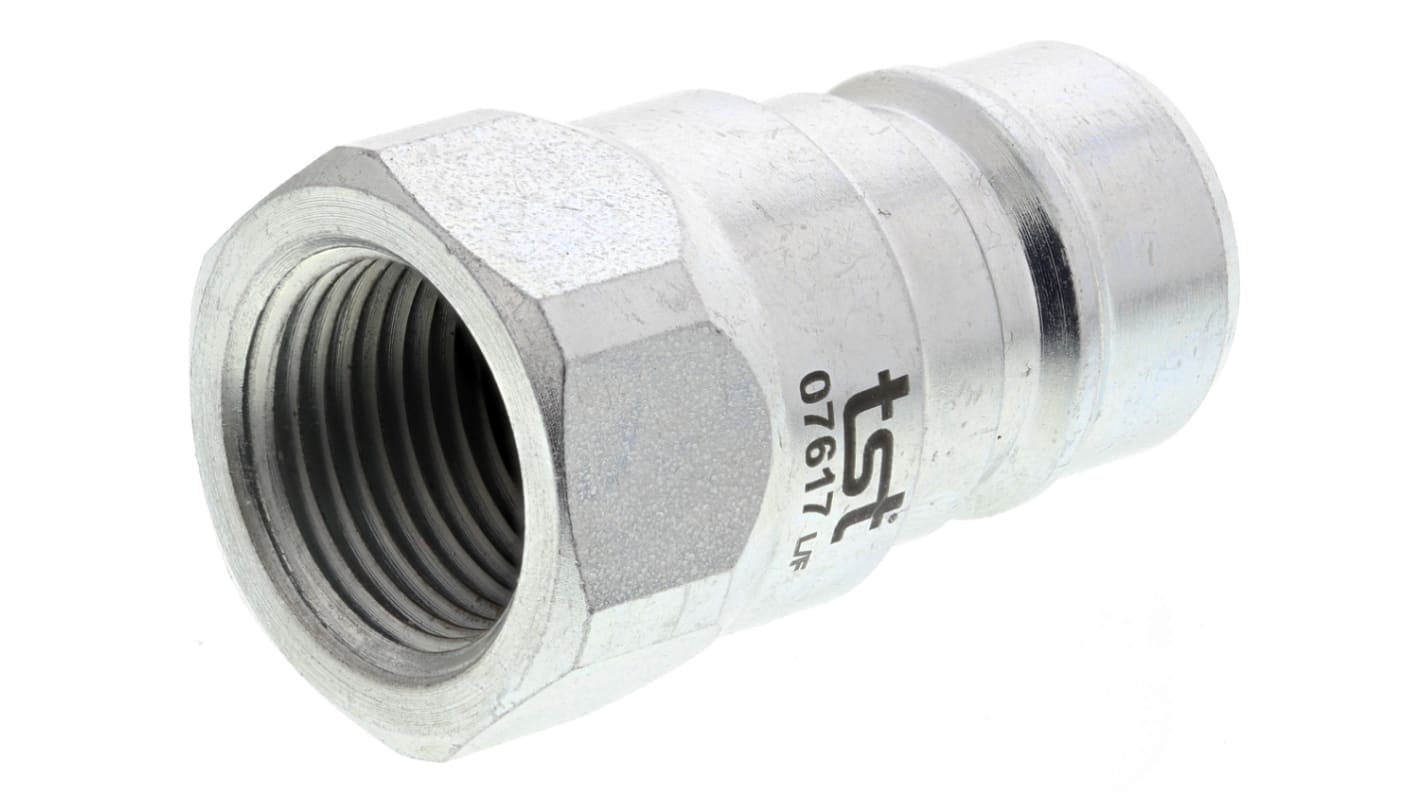

RS PRO Steel Male Hydraulic Quick Connect Coupling, BSP 3/8 Male
Need a durable hose fitting that's compatible with your existing hydraulic system? Choose this male quick-connect coupling from RS PRO.
This connector is made from durable steel with yellow passivated zinc plating, so it's strong and hard-wearing with excellent resistance to corrosion. It's also compatible with a wide range of international standard fittings, meaning you can use it with the equipment you already have in place.
The male coupling features quick release technology, allowing you to connect or disconnect it easily without additional tools. The built-in shut-off valve automatically seals the hose when there's no pressure, meaning it won't leak when it's not in use.
This connector is made from durable steel with yellow passivated zinc plating, so it's strong and hard-wearing with excellent resistance to corrosion. It's also compatible with a wide range of international standard fittings, meaning you can use it with the equipment you already have in place.
The male coupling features quick release technology, allowing you to connect or disconnect it easily without additional tools. The built-in shut-off valve automatically seals the hose when there's no pressure, meaning it won't leak when it's not in use.
Features and Benefits
- Compatible with Faster ANV Series, Hansen HA 15000 (Gromelle), Intertraco A Series, Safeway S565, Stucchi BIR Series
- Male coupling gender
- Yellow passivated, zinc-plated finish
- Ball-lock locking style
- Steel material
- Maximum operating pressure of 300 bar
- Operating temperature range of -25°C to +125°C
- Nitrile rubber seal material
- 3/8 in male thread
- Thread standard is BSP (British Standard Pipe)
- Union type
Specifications
Attribute | Value |
|---|---|
| Thread | BSP 3/8 Male |
| Coupling Gender | Male |
| Thread Size | 3/8in |
| Material | Steel |
| Compatible With | Faster ANV Series, Hansen HA 15000 (Gromelle), Intertraco A Series, Safeway S565, Stucchi BIR Series |
| Type | Union |
| Locking Style | Ball Lock |
| Finish | Yellow Passivated, Zinc Plated |
| Seal Material | Nitrile Rubber |
| Thread Standard | BSP |
| Thread Gender | Male |
| Maximum Operating Pressure | 300 bar |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -25°C |
