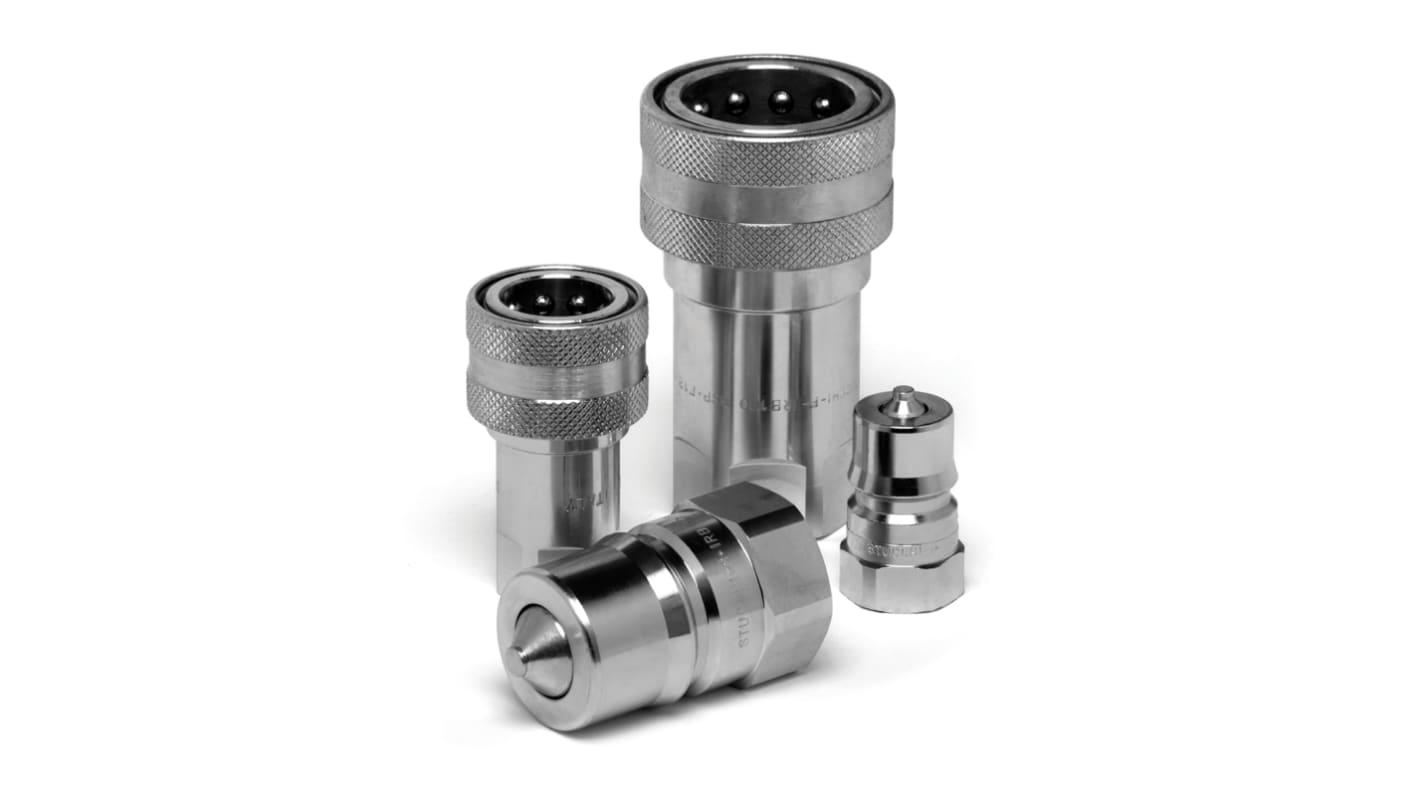

RS PRO Carbon Steel Hydraulic Quick Connect Coupling Male BSP 3/8 in, 300 bar
- RS Stock No.:
- 733-5583
- Brand:
- RS PRO
Subtotal (1 unit)*
£8.35
(exc. VAT)
£10.02
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 197 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.35 |
*price indicative
- RS Stock No.:
- 733-5583
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hydraulic Quick Connect Coupling | |
| Thread Size | 3/8 in | |
| Material | Carbon Steel | |
| Series | RS | |
| Lock Type | Ball Lock | |
| Sub Type | Union | |
| Minimum Operating Temperature | -20°C | |
| Thread Standard | BSP | |
| Thread Gender | Male | |
| Standards/Approvals | RoHS | |
| Maximum Operating Pressure | 300 bar | |
| Maximum Operating Temperature | 100°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hydraulic Quick Connect Coupling | ||
Thread Size 3/8 in | ||
Material Carbon Steel | ||
Series RS | ||
Lock Type Ball Lock | ||
Sub Type Union | ||
Minimum Operating Temperature -20°C | ||
Thread Standard BSP | ||
Thread Gender Male | ||
Standards/Approvals RoHS | ||
Maximum Operating Pressure 300 bar | ||
Maximum Operating Temperature 100°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
ISO B - Steel Male Tip / Female Body Couplers
Resistance to high temperatures (-25 → +125 °C)
Suited to general industrial and agricultural applications
Nitrile seal material
Steel body construction
Complies with standard ISO 7241-1, 'B'
Ball Locking
Couplings manufactured to ISO standards and fitted with NBR (Nitrile) seals, with secondary PTFE seals for backup purposes. Suitable for working environments within -25 to 125°C.
Warning
Do not connect under pressure.
Standards
ISO 7241-1, 'B'
