RS PRO Carbon Steel Hydraulic Quick Connect Coupling Male BSP 1/4 in, 350 bar
- RS Stock No.:
- 733-5574
- Brand:
- RS PRO
Subtotal (1 unit)*
£8.00
(exc. VAT)
£9.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 526 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.00 |
*price indicative
- RS Stock No.:
- 733-5574
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hydraulic Quick Connect Coupling | |
| Thread Size | 1/4 in | |
| Material | Carbon Steel | |
| Series | RS | |
| Sub Type | Union | |
| Lock Type | Ball Lock | |
| Minimum Operating Temperature | -20°C | |
| Thread Standard | BSP | |
| Thread Gender | Male | |
| Standards/Approvals | RoHS | |
| Maximum Operating Pressure | 350 bar | |
| Maximum Operating Temperature | 100°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hydraulic Quick Connect Coupling | ||
Thread Size 1/4 in | ||
Material Carbon Steel | ||
Series RS | ||
Sub Type Union | ||
Lock Type Ball Lock | ||
Minimum Operating Temperature -20°C | ||
Thread Standard BSP | ||
Thread Gender Male | ||
Standards/Approvals RoHS | ||
Maximum Operating Pressure 350 bar | ||
Maximum Operating Temperature 100°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT

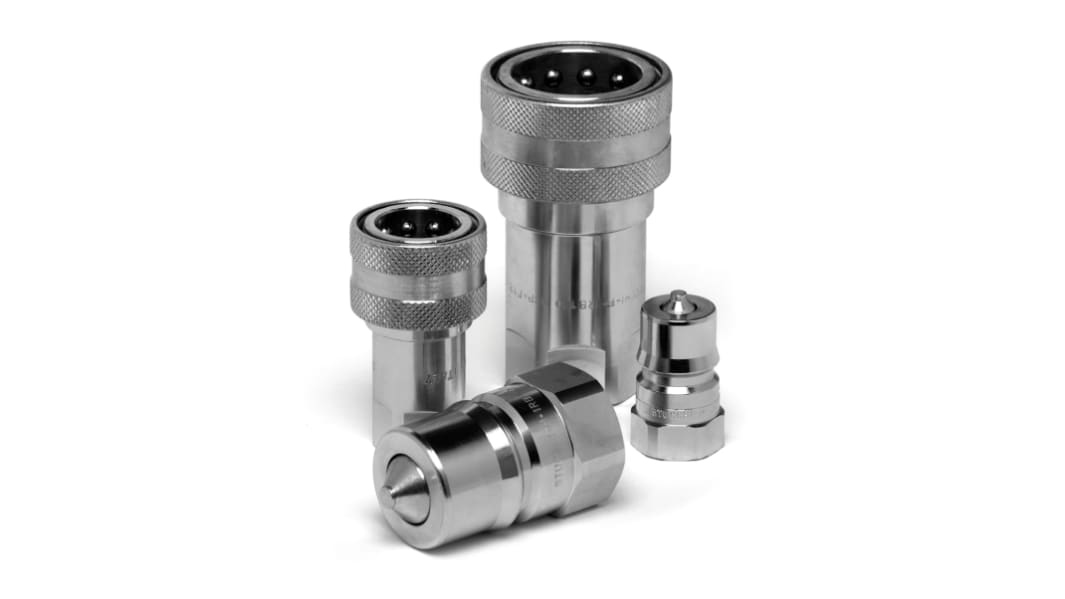

RS PRO Steel Male Hydraulic Quick Connect Coupling, RS 1/4 Male
This hydraulic coupling from RS PRO is designed to screw onto the end of an existing hose. The built-in 1/4 inch thread allows it to be connected to a matching socket. The male connector has a built-in valve that prevents any fluids from leaking out when it's disconnected but will be opened by the pressure from the supply side. For this reason, this connector needs to be used on the downstream side of the connection.
The matching female socket includes a quick release ring allowing the coupling to be easily disconnected when it's no longer required. The high-pressure rating of 500 bar and +125°C high-temperature tolerance means that this connector is suitable for use in industrial settings, for example with a hydraulic system or other fluid supplies. Note that the connector is intended to only be connected or disconnected when the system is depressurised.
Features and Benefits
• Compatible with ISO (International Organization for Standardization) 7241-1-B
• Male coupling gender
• Ball-lock locking style
• Steel material
• Maximum operating pressure of 500 bar
• Operating temperature range of -25°C to +125°C
• Nitrile rubber seal material
• 1/4 in male thread
• RS thread standard
• Union type
