RS PRO Carbon Steel Male Hydraulic Quick Connect Coupling, BSP 3/8 Male
- RS Stock No.:
- 733-5625
- Brand:
- RS PRO
6 In stock - FREE next working day delivery available
12 available from Europe for delivery within 1 working day(s).
Added
Price Each
£11.20
(exc. VAT)
£13.44
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £11.20 |
| 5 - 9 | £10.81 |
| 10 + | £10.44 |
- RS Stock No.:
- 733-5625
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- IT
Product Details

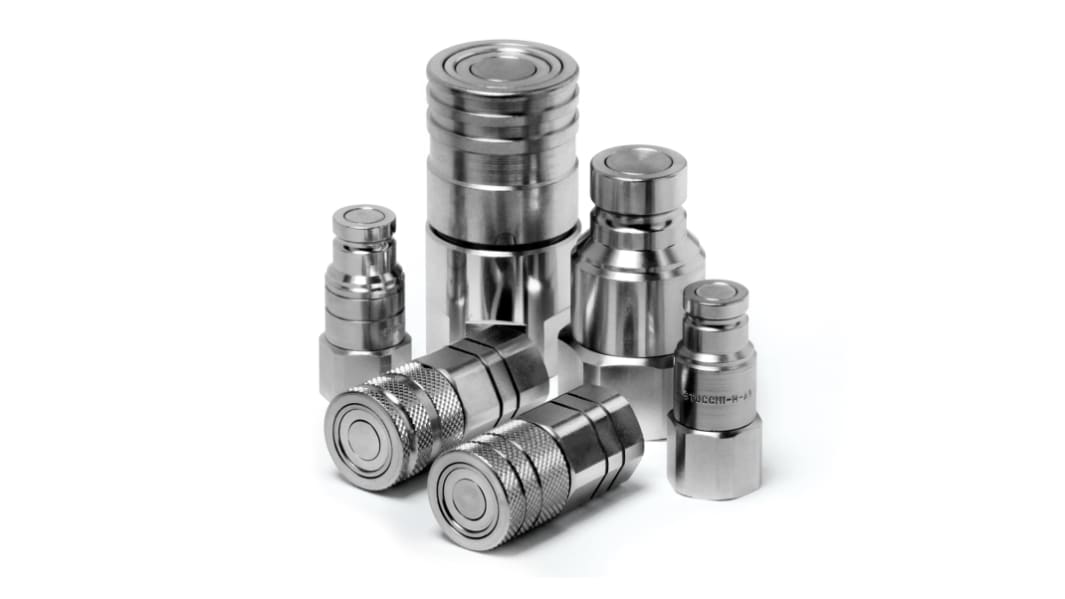

Carbon Steel Male Tip / Female Flat Face Coupler
Connection via hand or tool under maximum working pressure
Withstands high static pressures
Maximum flow rate maintained should light unscrewing of the sleeve occur
Large operating temperature range -25 → +100 °C
Nitrile seal material
Carbon steel body construction
Withstands high static pressures
Maximum flow rate maintained should light unscrewing of the sleeve occur
Large operating temperature range -25 → +100 °C
Nitrile seal material
Carbon steel body construction
Standards
ISO-DIS 16028
Warning
Do not connect couplings under pressure.
Screw Locking
Couplings manufactured to ISO standards and fitted with NBR (Nitrile) or VITON® seals, with secondary PTFE seals for backup purposes. Suitable for working environments within -25 to 100°C (+125°C for PVVM and VVS series), and -10 to +200°C for VITON-seal screw couplings.
Specifications
Attribute | Value |
|---|---|
| Thread | BSP 3/8 Male |
| Coupling Gender | Male |
| Thread Size | 3/8in |
| Material | Carbon Steel |
| Series | RS |
| Compatible With | ISO-DIS 16028 |
| Type | Union |
| Locking Style | Screw Lock |
| Finish | Yellow Passivated, Zinc Plated |
| Seal Material | Nitrile Rubber |
| Thread Standard | BSPP |
| Thread Gender | Male |
| Maximum Operating Pressure | 350 bar |
| Maximum Operating Temperature | +100°C |
| Minimum Operating Temperature | -25°C |
