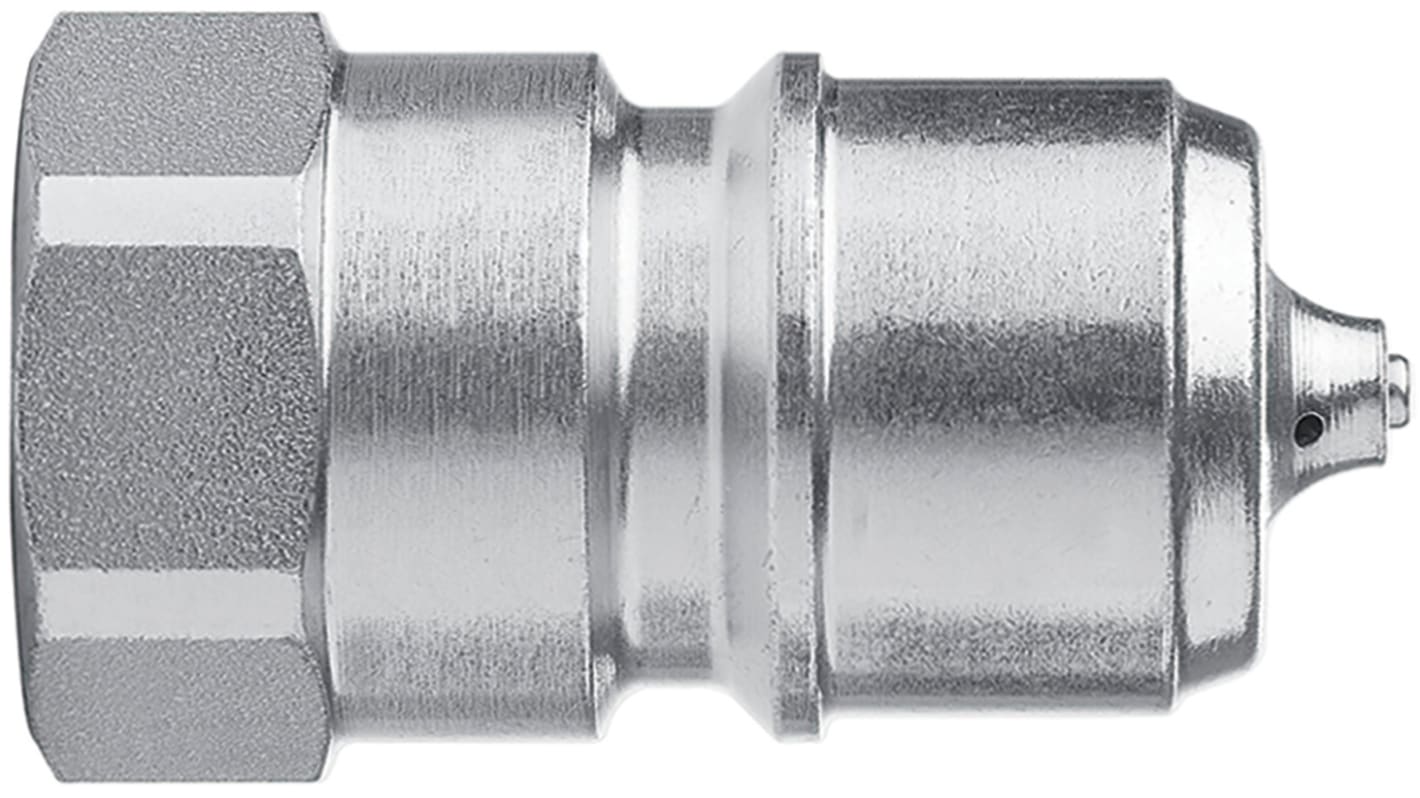

CEJN Steel Hydraulic Quick Connect Coupling Male G 1/2 in, 300 bar
- RS Stock No.:
- 189-1743
- Mfr. Part No.:
- C105256235
- Brand:
- CEJN
Subtotal (1 unit)*
£32.09
(exc. VAT)
£38.51
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £32.09 |
*price indicative
- RS Stock No.:
- 189-1743
- Mfr. Part No.:
- C105256235
- Brand:
- CEJN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CEJN | |
| Product Type | Hydraulic Quick Connect Coupling | |
| Thread Size | 1/2 in | |
| Material | Steel | |
| Series | 525 | |
| Sub Type | Nipple | |
| Lock Type | Screw Lock | |
| Finish | Zinc Plated | |
| Thread Standard | G | |
| Minimum Operating Temperature | -20°C | |
| Thread Gender | Male | |
| Maximum Operating Pressure | 300 bar | |
| Standards/Approvals | RoHS | |
| Maximum Operating Temperature | 205°C | |
| Select all | ||
|---|---|---|
Brand CEJN | ||
Product Type Hydraulic Quick Connect Coupling | ||
Thread Size 1/2 in | ||
Material Steel | ||
Series 525 | ||
Sub Type Nipple | ||
Lock Type Screw Lock | ||
Finish Zinc Plated | ||
Thread Standard G | ||
Minimum Operating Temperature -20°C | ||
Thread Gender Male | ||
Maximum Operating Pressure 300 bar | ||
Standards/Approvals RoHS | ||
Maximum Operating Temperature 205°C | ||
- COO (Country of Origin):
- SE
Series 525 is a family of quick couplings for hydraulic systems. A manually-operated locking ring provides extra security against involuntary disconnection. Series 525 couplings and nipples have a pressure eliminator as an extra feature for evacuating residual pressure during connection. Both components are made of steel with Zinc-Nickel surface for maximum durability in tough applications and environments. The Series is also available in four other sizes: DN 6.3 (1/4"), DN 10 (3/8"), DN 20 (3/4") and DN 25 (1"). For a stainless steel version see Series 526. Available are also a version with viton seals and a free flow version (without valve package).
Manual locking ring for extra security
High durability
Optional pressure eliminator
