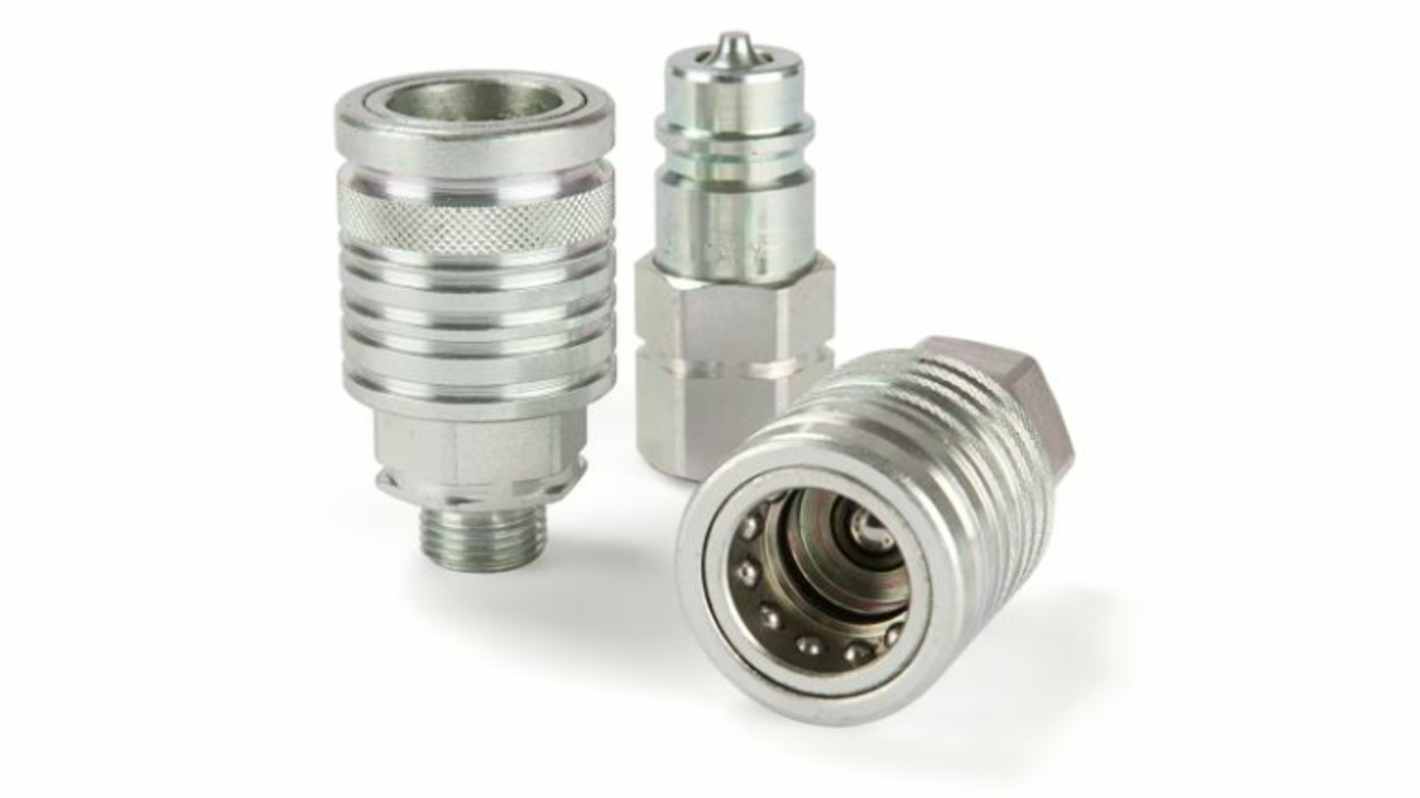

Parker Steel Hydraulic Quick Connect Coupling Female 1/2 in, 300 bar
- RS Stock No.:
- 241-568
- Mfr. Part No.:
- 4V14G4X4-D
- Brand:
- Parker
Subtotal (1 unit)*
£12.07
(exc. VAT)
£14.48
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 3 left, ready to ship
- Plus 40 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.07 |
*price indicative
- RS Stock No.:
- 241-568
- Mfr. Part No.:
- 4V14G4X4-D
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Parker | |
| Product Type | Hydraulic Quick Connect Coupling | |
| Thread Size | 1/2 in | |
| Material | Steel | |
| Series | 2000 | |
| Lock Type | Ball Lock | |
| Sub Type | Plug | |
| Finish | Zinc, Chrome Free Plated Steel | |
| Minimum Operating Temperature | -25°C | |
| Thread Gender | Female | |
| Standards/Approvals | DIN 3852, DIN 2353 | |
| Maximum Operating Pressure | 300 bar | |
| Maximum Operating Temperature | 230°C | |
| Select all | ||
|---|---|---|
Brand Parker | ||
Product Type Hydraulic Quick Connect Coupling | ||
Thread Size 1/2 in | ||
Material Steel | ||
Series 2000 | ||
Lock Type Ball Lock | ||
Sub Type Plug | ||
Finish Zinc, Chrome Free Plated Steel | ||
Minimum Operating Temperature -25°C | ||
Thread Gender Female | ||
Standards/Approvals DIN 3852, DIN 2353 | ||
Maximum Operating Pressure 300 bar | ||
Maximum Operating Temperature 230°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The Parker Hydraulic Quick Coupling meets the requirements of ISO 7241-1 Series A. This series can be connected with other products complying with the same standard. It stands out for its modular construction with a broad choice of end configurations (variety of threads such as BSPP and metric).
NBR seal
Steel material
