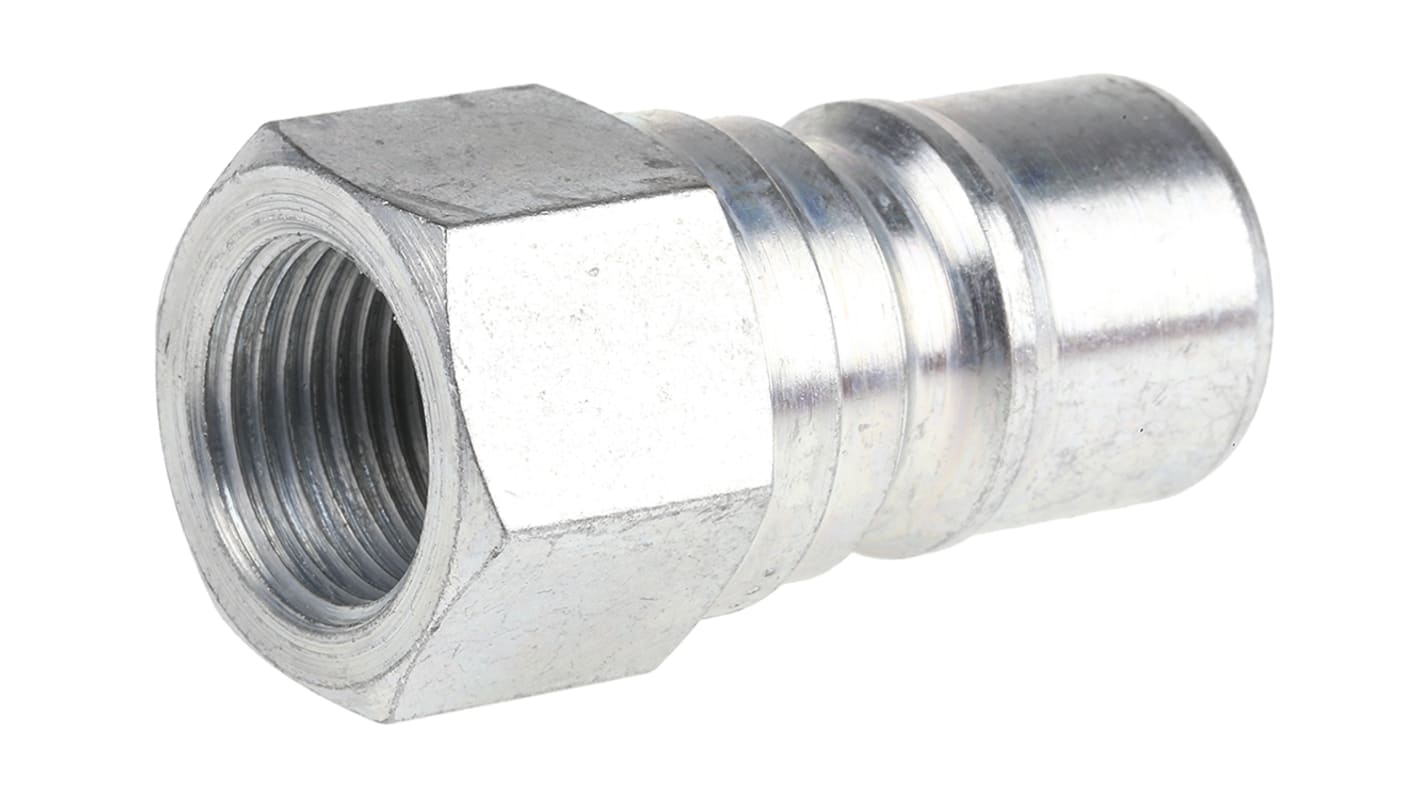

Parker Steel Male Hydraulic Quick Connect Coupling, G 3/8 Female
- RS Stock No.:
- 110-781
- Mfr. Part No.:
- H3-63-BSPP
- Brand:
- Parker
Subtotal (1 unit)*
£34.26
(exc. VAT)
£41.11
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 31 October 2025
- Plus 20 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £34.26 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£63.75
(exc. VAT)
£76.50
(inc. VAT)
- RS Stock No.:
- 110-781
- Mfr. Part No.:
- H3-63-BSPP
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Parker | |
Thread | G 3/8 Female | |
Coupling Gender | Male | |
Thread Size | 3/8in | |
Material | Steel | |
Series | 60 | |
Compatible With | CEJN 320/410, ISO 7241-1-B, Rectus 25/27 | |
Type | Nipple | |
Locking Style | Ball Lock | |
Finish | Yellow Chromated, Zinc Plated | |
Seal Material | Nitrile Rubber | |
Thread Standard | G | |
Thread Gender | Female | |
Maximum Operating Pressure | 28 MPa | |
Maximum Operating Temperature | +110°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Parker | ||
Thread G 3/8 Female | ||
Coupling Gender Male | ||
Thread Size 3/8in | ||
Material Steel | ||
Series 60 | ||
Compatible With CEJN 320/410, ISO 7241-1-B, Rectus 25/27 | ||
Type Nipple | ||
Locking Style Ball Lock | ||
Finish Yellow Chromated, Zinc Plated | ||
Seal Material Nitrile Rubber | ||
Thread Standard G | ||
Thread Gender Female | ||
Maximum Operating Pressure 28 MPa | ||
Maximum Operating Temperature +110°C | ||
Minimum Operating Temperature -40°C | ||
RoHS Status: Exempt
Zinc Plated/Yellow Chromate Steel
Parker 60 series quick connect couplings for hydraulic applications. The 60 series is a double shut off coupling that is suitable for various hydraulic applications where hoses are frequently connected and disconnected.
Features and Benefits
BSPP Thread sizes
Hardened nipples and sleeves
High flow capacity
High pressure seal design
Captive valve seal
Durable ball locking mechanism
Temperature range: -40 to +80°C
Hardened nipples and sleeves
High flow capacity
High pressure seal design
Captive valve seal
Durable ball locking mechanism
Temperature range: -40 to +80°C
Applications
Industrial hydraulic lines
Food and chemical processing
Water and coolant lines
Mobile Equipment
Food and chemical processing
Water and coolant lines
Mobile Equipment
Standards
ISO 7241-B
Standards
ISO 7241-B
Parker 60 Series
