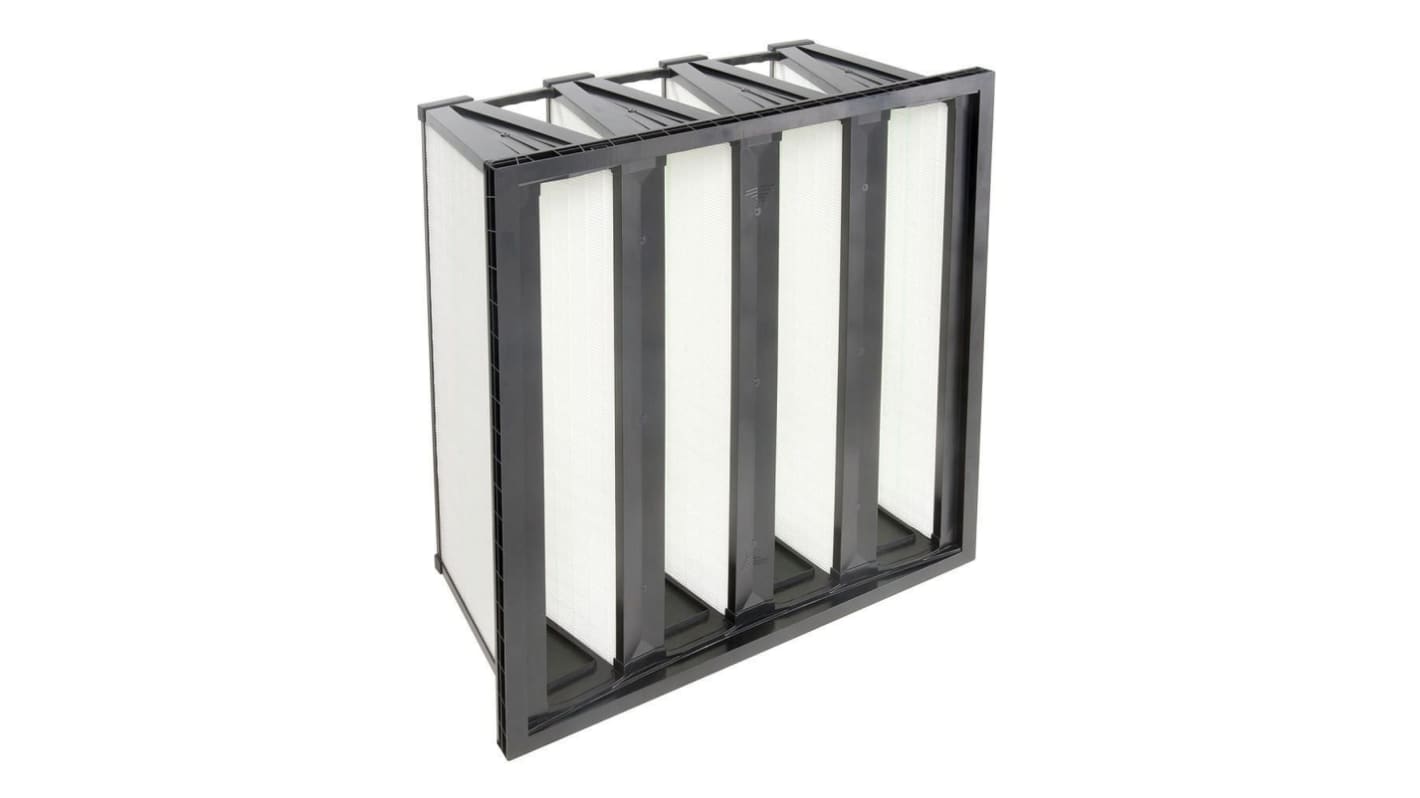

Camfil Opakfil ES Series Glass Fibre Compact V-Type Filter, F9 Grade, 592 x 592 x 296mm
- RS Stock No.:
- 880-2450
- Mfr. Part No.:
- 2511.17.5001
- Brand:
- Camfil
Subtotal (1 unit)*
£148.56
(exc. VAT)
£178.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship from another location
- Plus 999,999,992 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £148.56 |
*price indicative
- RS Stock No.:
- 880-2450
- Mfr. Part No.:
- 2511.17.5001
- Brand:
- Camfil
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Camfil | |
Filter Type | Compact V-Filter | |
Nominal Dimensions | 592 x 592 x 296mm | |
Actual Dimensions | 592 x 592 x 296mm | |
Media Area | 17m² | |
Filter Grade | F9 | |
Maximum Air Flow | 3400m³/h | |
Initial Pressure Drop | 90Pa | |
Final Pressure Drop | 450Pa | |
Colour | White | |
Case Material | ABS, Polypropylene | |
Media Material | Glass Fibre | |
Actual Depth | 296mm | |
Series | Opakfil ES | |
Actual Height | 592mm | |
Actual Width | 592mm | |
Select all | ||
---|---|---|
Brand Camfil | ||
Filter Type Compact V-Filter | ||
Nominal Dimensions 592 x 592 x 296mm | ||
Actual Dimensions 592 x 592 x 296mm | ||
Media Area 17m² | ||
Filter Grade F9 | ||
Maximum Air Flow 3400m³/h | ||
Initial Pressure Drop 90Pa | ||
Final Pressure Drop 450Pa | ||
Colour White | ||
Case Material ABS, Polypropylene | ||
Media Material Glass Fibre | ||
Actual Depth 296mm | ||
Series Opakfil ES | ||
Actual Height 592mm | ||
Actual Width 592mm | ||
RoHS Status: Exempt
Opakfil ES Compact Bag Filters
Camfil Opakfil ES compact bag filters provide high efficiency filtration combined with very low energy consumption and compact size. Opakfil ES can be used in any air conditioning application including preparatory filtration in cleanrooms and is also especially suitable for low-energy buildings.
High efficiency
Low energy costs
Compact size
Long operating life
Light and robust
Less filter changes
Aerodynamic radial design
Incinerable
Polypropylene and ABS frame; flange thickness 25 mm
Glass fibre media
Hot melt bead separators
Polyurethane sealant
Efficiency EN779:2012
Filter class: M6, F7, F8, F9
Recommended final pressure drop: 450 Pa (suggested economical change point 300 Pa)
Temperature: 70ºC maximum in continuous service
Low energy costs
Compact size
Long operating life
Light and robust
Less filter changes
Aerodynamic radial design
Incinerable
Polypropylene and ABS frame; flange thickness 25 mm
Glass fibre media
Hot melt bead separators
Polyurethane sealant
Efficiency EN779:2012
Filter class: M6, F7, F8, F9
Recommended final pressure drop: 450 Pa (suggested economical change point 300 Pa)
Temperature: 70ºC maximum in continuous service
Standards
Tested in accordance with EN779:2012
Eurovent Certified
Eurovent Certified
ISO 16890 Class: ePM1 80%
Weight: 5 kg
Weight: 5 kg
