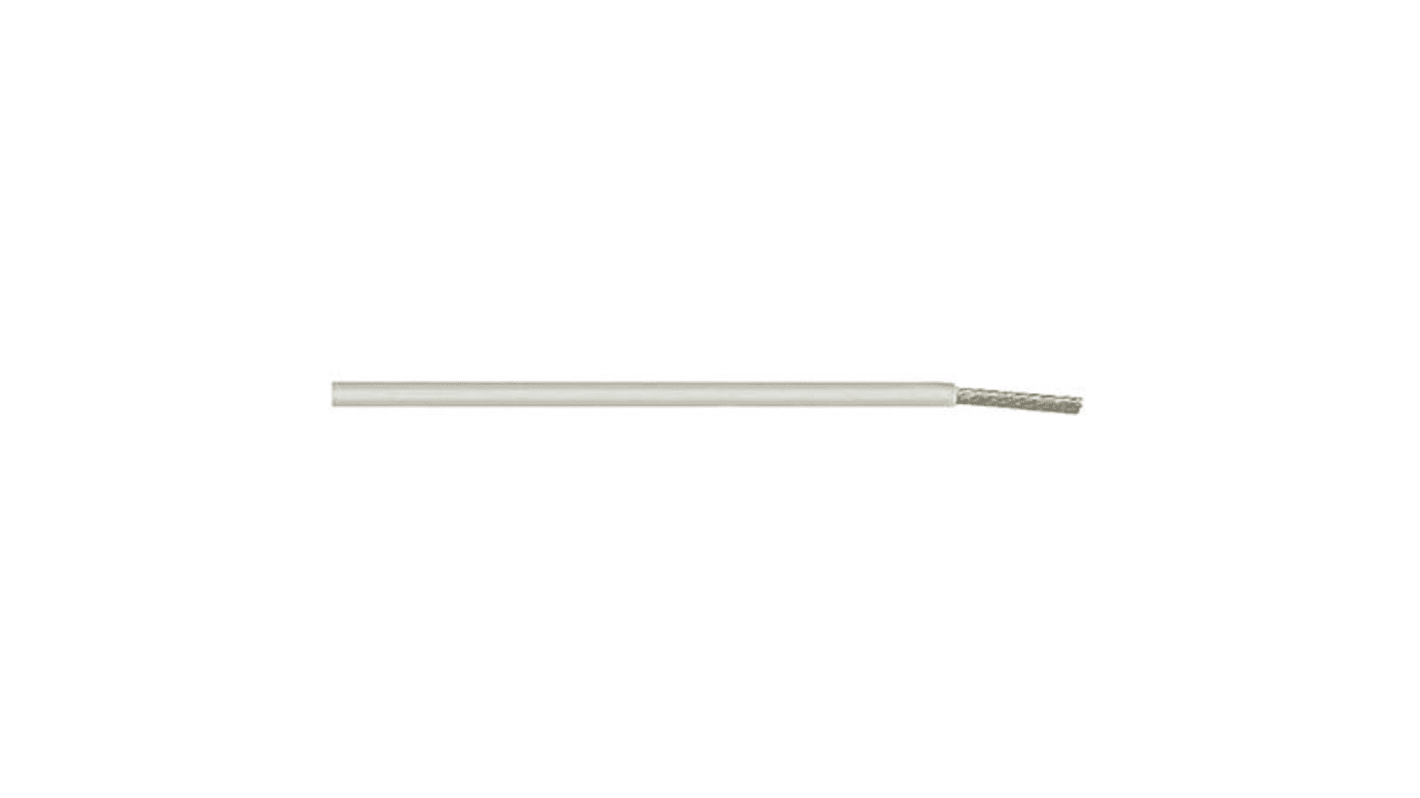

TE Connectivity 55A Series White 3.31 mm² Hook Up Wire, 12 AWG, 37/28 AWG, 100m, ETFE, Fluoropolymer Insulation
- RS Stock No.:
- 918-5232
- Mfr. Part No.:
- 55A0111-12-9
- Brand:
- TE Connectivity
1 In stock - FREE next working day delivery available
Added
Price 1 Reel of 100 Metre(s)
£326.49
(exc. VAT)
£391.79
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 + | £326.49 | £3.265 |
*price indicative |
- RS Stock No.:
- 918-5232
- Mfr. Part No.:
- 55A0111-12-9
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
Type 55®
Type 55® wire is insulated with modified radiation cross-linked ETFE polymer. The dual wall Airframe construction of type 55® wire is used on numerous aircraft programmes. Also for industrial applications where high temperature rating is required. Dual wall has a 0.25mm total wall thickness & a contrasting core colour (blue) to act as a damage indicator.
Features & Benefits
• Single or dual wall construction
• Small size, ultra lightweight
• Mechanically rugged
• Exceptional resistance to most chemicals & electrical arc tracking
• Excellent shop handling, scrape abrasion & flexibility
• Not susceptible to UV & moisture degradation
• High quality scrape abrasion
• Cut through characteristics
• Single or dual wall construction
• Small size, ultra lightweight
• Mechanically rugged
• Exceptional resistance to most chemicals & electrical arc tracking
• Excellent shop handling, scrape abrasion & flexibility
• Not susceptible to UV & moisture degradation
• High quality scrape abrasion
• Cut through characteristics
Applications:
• Commercial wiring
• Avionics
• Satellites
• Aircraft
• Helicopters
• High performance military systems
• Avionics
• Satellites
• Aircraft
• Helicopters
• High performance military systems
Specifications
Attribute | Value |
---|---|
Cross Sectional Area | 3.31 mm² |
Sheath Colour | White |
Cable Shape | Single Core |
American Wire Gauge | 12 AWG |
Core Strands | 37/28 AWG |
Length | 100m |
Insulation Material | ETFE, Fluoropolymer |
Outer Diameter | 2.62mm |
Voltage Rating | 600 V |
Minimum Operating Temperature | -65°C |
Maximum Operating Temperature | +150°C |
Conductor Material | Copper |
Cable Type | Harsh Environment |
Fire Behaviour | Flame Retardant |
Series | 55A |
Number of Strands | 37 |
Size of Strands | 28 AWG |
