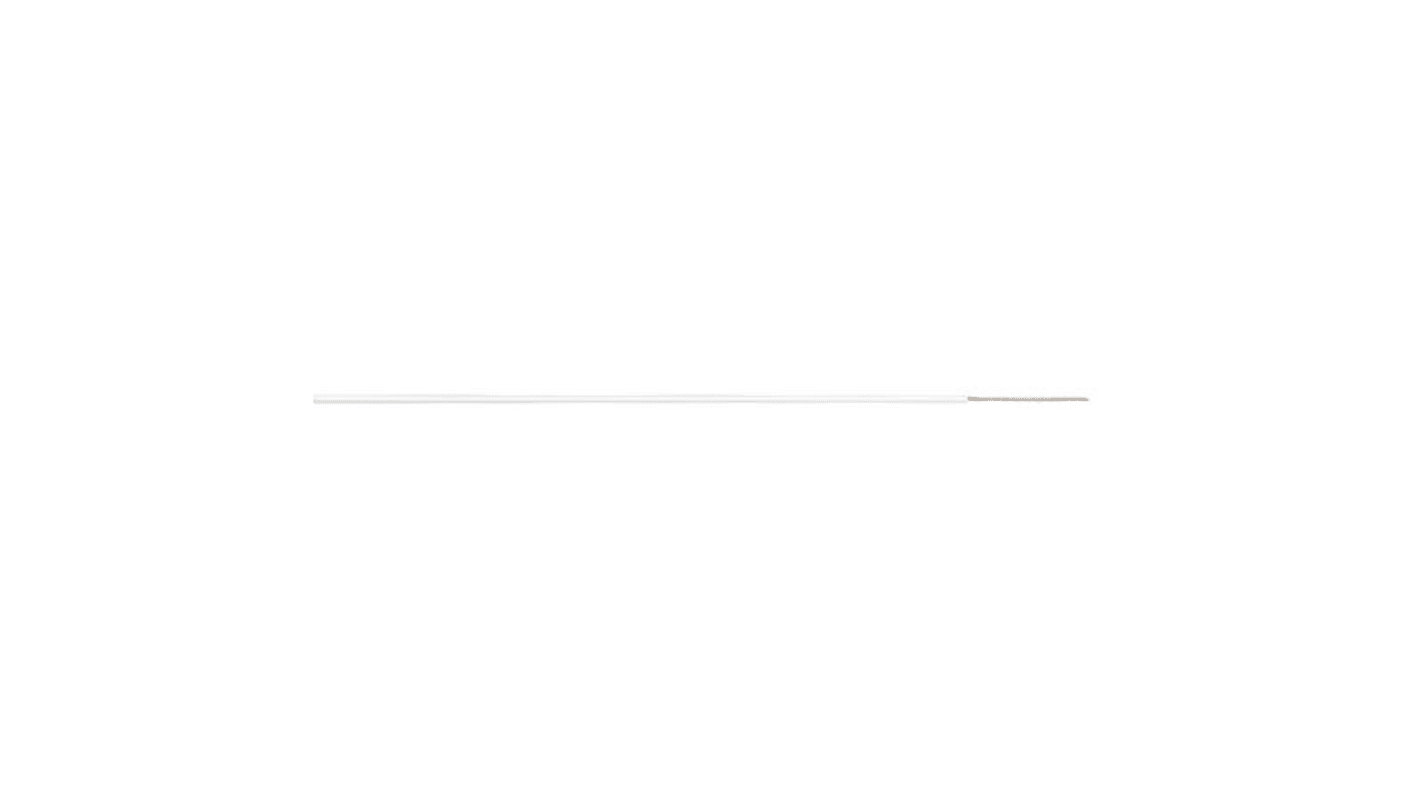

AXINDUS KZ Series White 0.34 mm² Hook Up Wire, 22 AWG, 250m, PTFE Insulation, KZ0506BL
- RS Stock No.:
- 910-7737
- Mfr. Part No.:
- KZ0506BL
- Brand:
- AXINDUS
Subtotal (1 reel of 250 metres)*
£297.95
(exc. VAT)
£357.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 23 October 2025
- Plus 5 unit(s) shipping from 27 October 2025
- Plus 15 unit(s) shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £297.95 | £1.192 |
*price indicative
- RS Stock No.:
- 910-7737
- Mfr. Part No.:
- KZ0506BL
- Brand:
- AXINDUS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AXINDUS | |
| Cross Sectional Area | 0.34 mm² | |
| Sheath Colour | White | |
| Cable Shape | Wire/Single Core | |
| American Wire Gauge | 22 AWG | |
| Length | 250m | |
| Insulation Material | PTFE | |
| Outer Diameter | 1.27mm | |
| Voltage Rating | 600 V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +200°C | |
| Conductor Material | Silver Plated Copper | |
| Cable Type | Harsh Environment | |
| Standards Met | IEC 60332-1, NF C 32070/C2, NF C 93-523 | |
| Fire Behaviour | Flame Retardant | |
| Series | KZ | |
| Shield Type | Unshielded | |
| Resistant To | Acids, Hydrocarbons, Mould, Oils, Solvents | |
Select all | ||
|---|---|---|
Brand AXINDUS | ||
Cross Sectional Area 0.34 mm² | ||
Sheath Colour White | ||
Cable Shape Wire/Single Core | ||
American Wire Gauge 22 AWG | ||
Length 250m | ||
Insulation Material PTFE | ||
Outer Diameter 1.27mm | ||
Voltage Rating 600 V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +200°C | ||
Conductor Material Silver Plated Copper | ||
Cable Type Harsh Environment | ||
Standards Met IEC 60332-1, NF C 32070/C2, NF C 93-523 | ||
Fire Behaviour Flame Retardant | ||
Series KZ | ||
Shield Type Unshielded | ||
Resistant To Acids, Hydrocarbons, Mould, Oils, Solvents | ||
- COO (Country of Origin):
- FR
CAE KZ04, 05 Equipment Wire
CAE KZ04 & 05 equipment wire can be used in high temperature applications requiring chemical and mechanical stress resistance.
Features & Benefits
• PTFE Sheath: +260°C
• Resistance to acids, oils, hydrocarbons, solvents and mould
• PTFE Sheath: +260°C
• Resistance to acids, oils, hydrocarbons, solvents and mould
Standards
NF C 32-070/C2 or IEC 60332-1, NF C 93-523
