- RS Stock No.:
- 873-9945
- Brand:
- RS PRO
51 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 100 Metre(s)
£15.54
(exc. VAT)
£18.65
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 - 4 | £15.54 | £0.155 |
5 - 9 | £14.79 | £0.148 |
10 + | £13.99 | £0.14 |
*price indicative |
- RS Stock No.:
- 873-9945
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

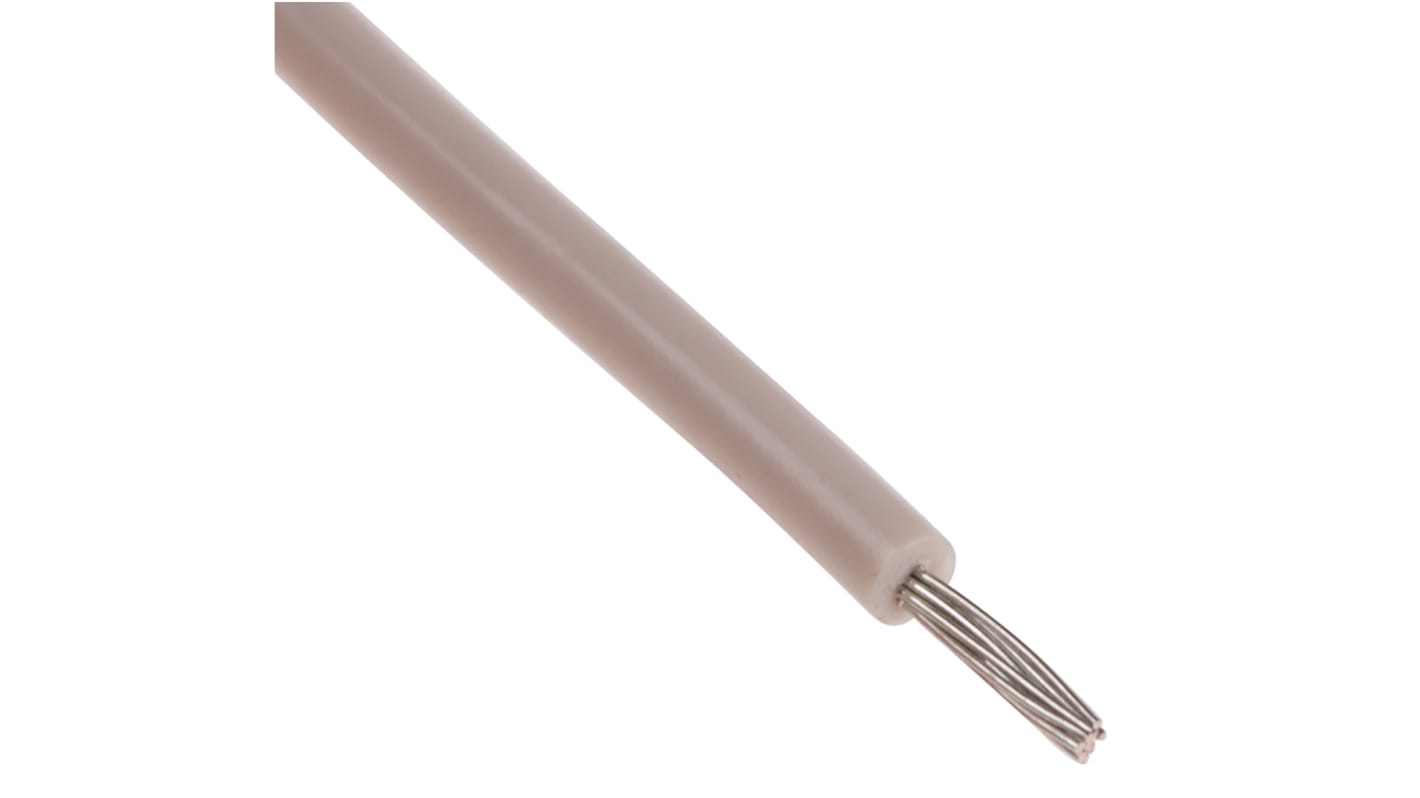

RS UL 1430 Hook-Up Wire
The UL1430 Hook up wire is used for internal wiring of electronic and electrical equipment
• 100m lengths
• Stranded tinned copper conductor
• Various colours
• 22, 24, 26, 28AWG
• XLPVC Material
• UL758, UL1581
• Stranded tinned copper conductor
• Various colours
• 22, 24, 26, 28AWG
• XLPVC Material
• UL758, UL1581
Standards
UL758, UL1581
Specifications
Attribute | Value |
---|---|
Cross Sectional Area | 0.2 mm² |
Sheath Colour | White |
American Wire Gauge | 24 AWG |
Core Strands | 11/0.16 mm |
Length | 100m |
Insulation Material | PVC |
Voltage Rating | 300 V |
Outer Diameter | 1.4mm |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +105°C |
Conductor Material | Tinned Copper |
Wire Style | UL1430 |
Standards Met | UL1430 |
Series | 1430 |
Insulation Wall Thickness | 1.4mm |
Number of Strands | 11 |
Size of Strands | 0.16 mm |
