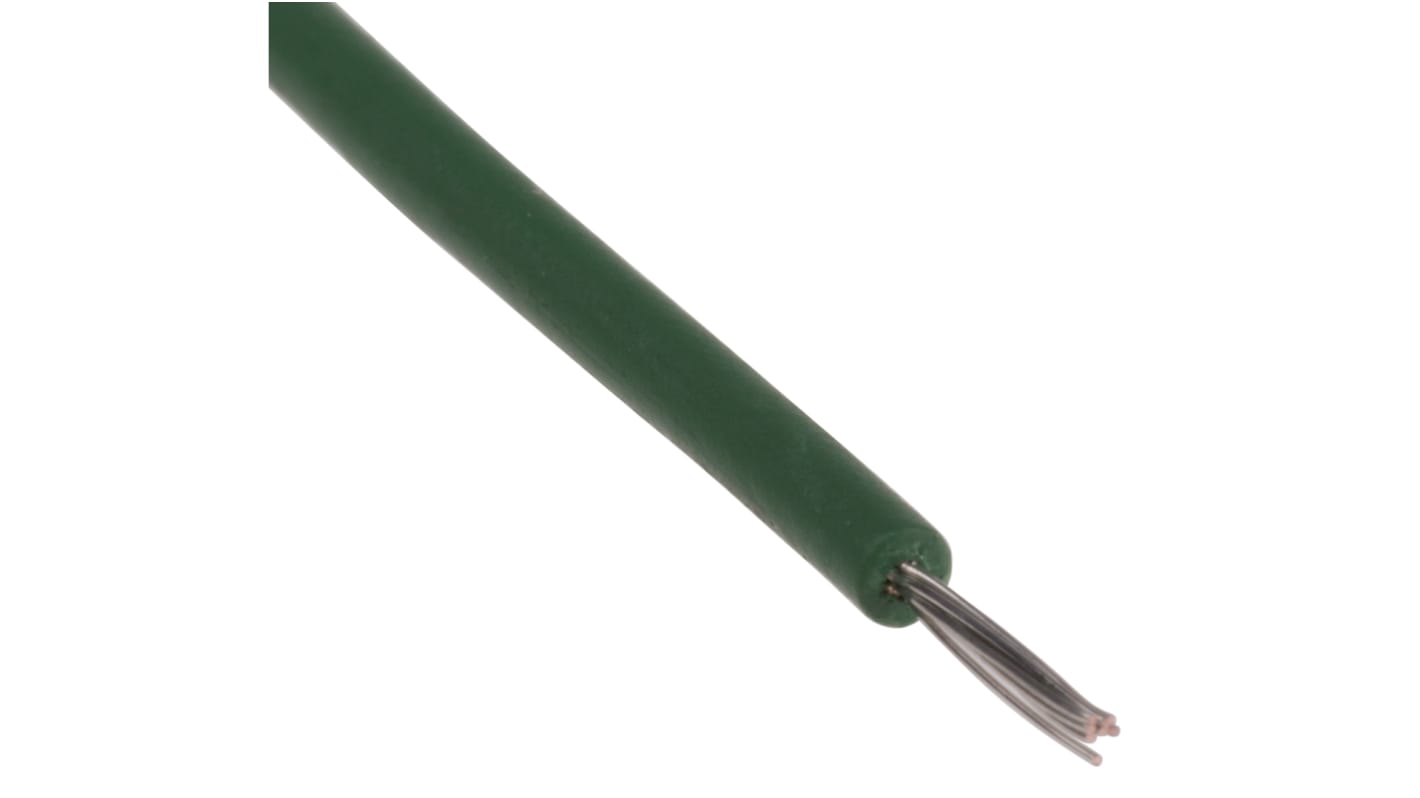

RS PRO Green 0.2 mm² Hook Up Wire, 24 AWG, 11/0.16 mm, 100m, XLPE Insulation

RS Stock No.:: 873-8958
Brand:: RS PRO

RS PRO Green 0.2 mm² Hook Up Wire, 24 AWG, 11/0.16 mm, 100m, XLPE Insulation

42 In stock - FREE next working day delivery available

3 available from Europe for delivery within 1 working day(s).

Price 1 Reel of 100 Metre(s)

£16.38

(exc. VAT)

£19.66

(inc. VAT)

Reel(s)	Per Reel	Per Metre*
1 - 4	£16.38	£0.164
5 - 9	£15.53	£0.155
10 +	£14.74	£0.147

*price indicative

RS Stock No.:: 873-8958
Brand:: RS PRO

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

RS UL 3239 Hook-up Wire

The UL3239 Hook up wire is generally used for internal wiring of TV receivers.

• Stranded tinned copper conductor
• XPLE insulation material
• Various colours
• 22,24,26 & 28 AWG
• UL758, UL1581
• Flammability Rating VW-1

Standards

UL758, UL1581, VW-1

Specifications

Attribute	Value
Cross Sectional Area	0.2 mm²
Sheath Colour	Green
American Wire Gauge	24 AWG
Core Strands	11/0.16 mm
Length	100m
Insulation Material	XLPE
Voltage Rating	6 kV dc
Outer Diameter	1.5mm
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+105°C
Conductor Material	Tinned Copper
Wire Style	UL3239
Standards Met	UL 3239
Insulation Wall Thickness	1.5mm
Number of Strands	11
Size of Strands	0.16 mm
