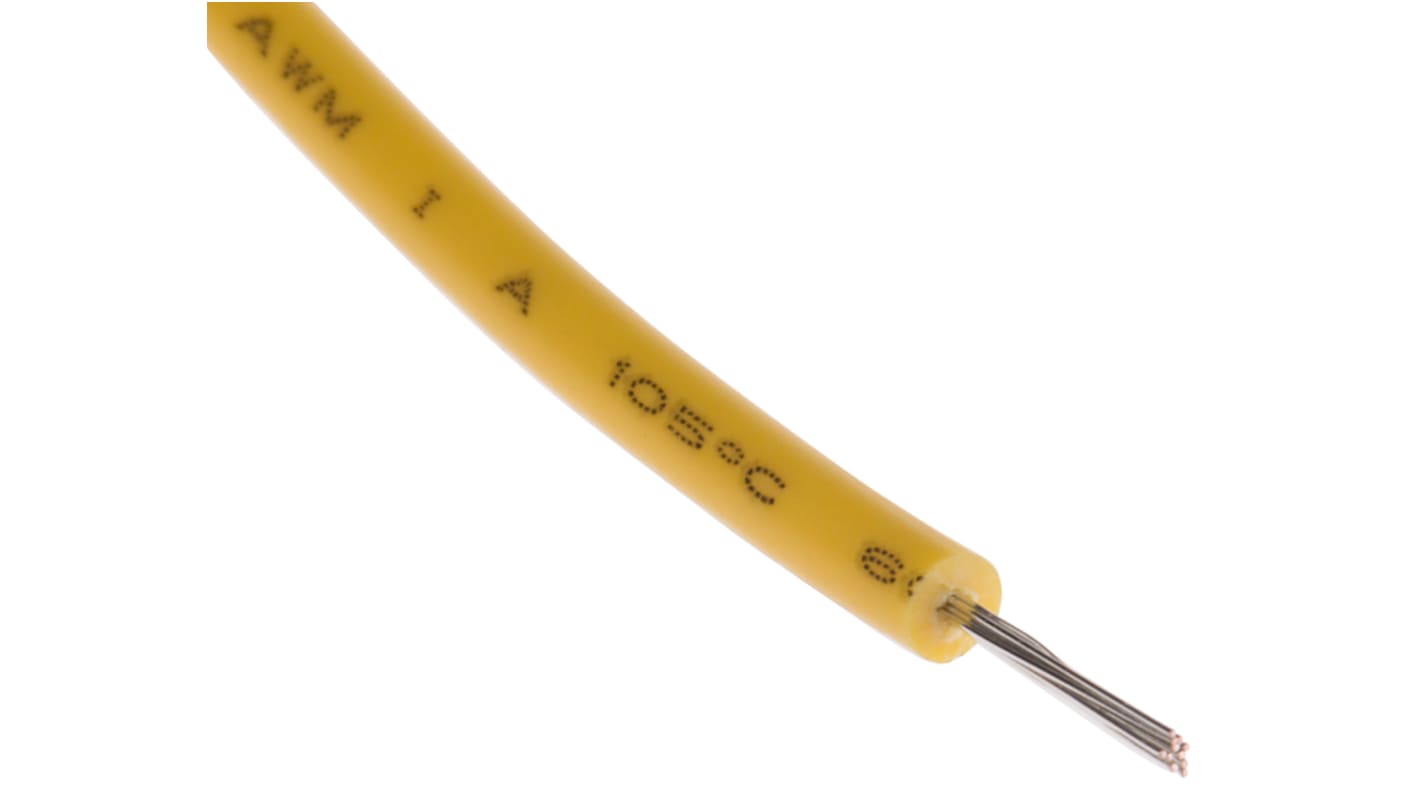

RS PRO Yellow 0.2 mm² Hook Up Wire, 24 AWG, 11/0.16 mm, 100m, PVC Insulation
- RS Stock No.:
- 872-4622
- Brand:
- RS PRO
129 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 100 Metre(s)
£10.55
(exc. VAT)
£12.66
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | £10.55 | £0.106 |
| 5 - 9 | £10.03 | £0.10 |
| 10 + | £9.49 | £0.095 |
| *price indicative | ||
- RS Stock No.:
- 872-4622
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS UL1015 Hook-up Wire
The UL1015 Hook-up wire is designed for use with internal wiring of electronic and electrical equipment.
Various colours
100m length
PVC Material
VW-1 Flammability test
Stranded tinned copper conductor
100m length
PVC Material
VW-1 Flammability test
Stranded tinned copper conductor
Note
Tags may also indicate the following: 2.500 V peak - for electronic use only.
Standards
UL758, UL1581, RoHS
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 0.2 mm² |
| Sheath Colour | Yellow |
| American Wire Gauge | 24 AWG |
| Core Strands | 11/0.16 mm |
| Length | 100m |
| Insulation Material | PVC |
| Voltage Rating | 600 V |
| Outer Diameter | 2.2mm |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +105°C |
| Conductor Material | Tinned Copper |
| Wire Style | UL1015 |
| Standards Met | UL 1581, UL 758 |
| Insulation Wall Thickness | 0.8mm |
| Size of Strands | 0.16 mm |
| Number of Strands | 11 |
