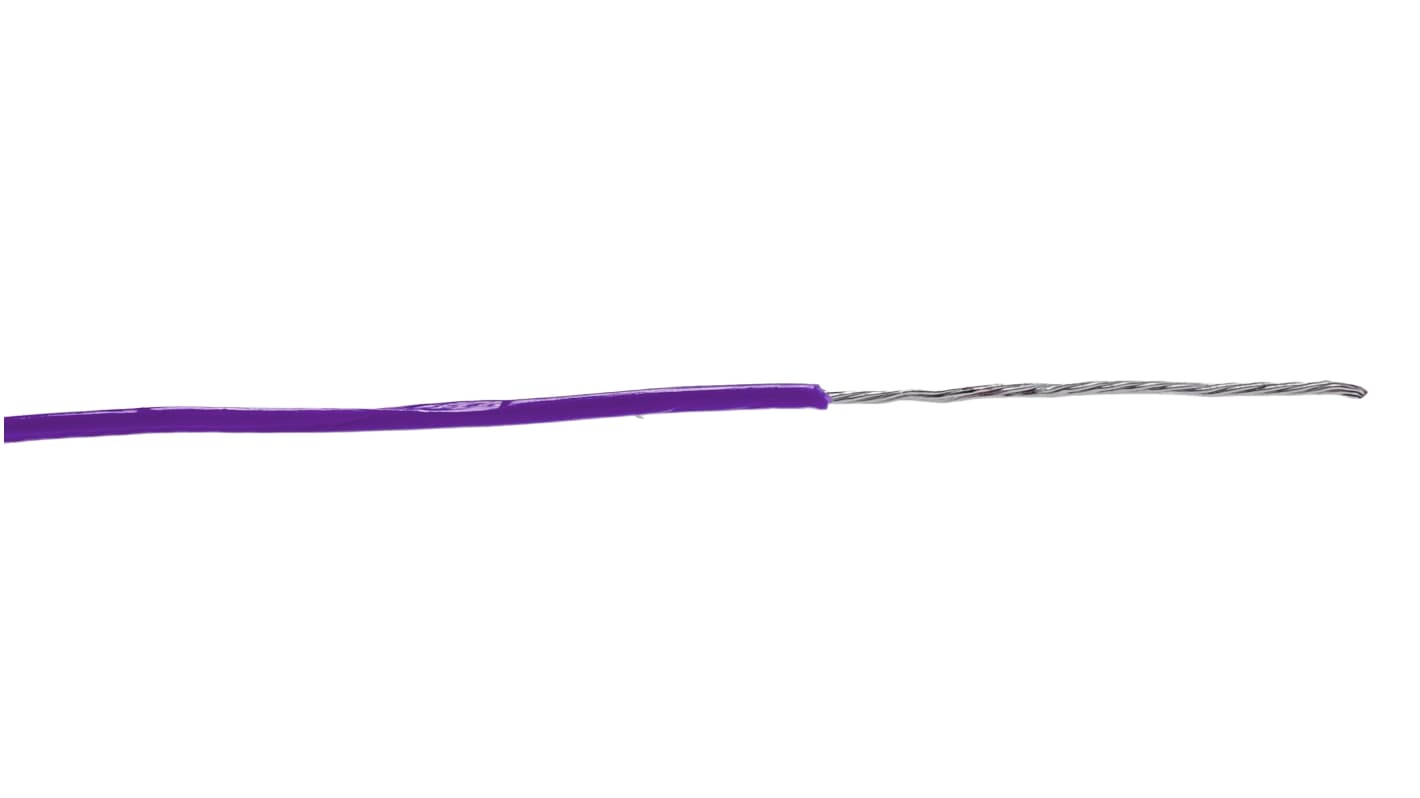

Alpha Wire Hook-up Wire PVC Series Purple 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 30m, PVC Insulation, 3049 VI005
- RS Stock No.:
- 842-5255
- Distrelec Article No.:
- 303-02-224
- Mfr. Part No.:
- 3049 VI005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£16.20
(exc. VAT)
£19.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £16.20 | £0.54 |
*price indicative
- RS Stock No.:
- 842-5255
- Distrelec Article No.:
- 303-02-224
- Mfr. Part No.:
- 3049 VI005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.13 mm² | |
| Sheath Colour | Purple | |
| Cable Shape | Wire/Single Core | |
| American Wire Gauge | 26 AWG | |
| Core Strands | 7/0.16 mm | |
| Length | 30m | |
| Insulation Material | PVC | |
| Outer Diameter | 1.3mm | |
| Voltage Rating | 300 V | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tinned Copper | |
| Wire Style | UL1007 | |
| Cable Type | High Temperature | |
| Standards Met | AWM/STYLE 1569, CSA International TR-64, FT1, UL AWM/STYLE 1007, VW-1 | |
| Fire Behaviour | Flame Retardant | |
| Series | Hook-up Wire PVC | |
| Tri-rated | No | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.4mm | |
| Hook Up Wire Type | High Temperature | |
| Resistant To | Chemicals, Oils, Solvents | |
| Number of Strands | 7 | |
| Size of Strands | 0.16 mm | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.13 mm² | ||
Sheath Colour Purple | ||
Cable Shape Wire/Single Core | ||
American Wire Gauge 26 AWG | ||
Core Strands 7/0.16 mm | ||
Length 30m | ||
Insulation Material PVC | ||
Outer Diameter 1.3mm | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tinned Copper | ||
Wire Style UL1007 | ||
Cable Type High Temperature | ||
Standards Met AWM/STYLE 1569, CSA International TR-64, FT1, UL AWM/STYLE 1007, VW-1 | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Tri-rated No | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.4mm | ||
Hook Up Wire Type High Temperature | ||
Resistant To Chemicals, Oils, Solvents | ||
Number of Strands 7 | ||
Size of Strands 0.16 mm | ||
RoHS Status: Exempt
Belden Hook-up Wire PVC Series Hook Up Wire, 0.13mm² Cross Sectional Area, 26AWG American Wire Gauge - 3049 VI005
This high temperature hook up wire is designed for a variety of electrical applications. The wire features a length of 30m and has a 26 AWG specification, making it suitable for various tasks in automation and electronics. With robust PVC insulation and a striking purple sheath colour, it is not only functional but also easy to identify in complex wiring setups. Capable of handling a voltage rating of 300V, it ensures safety and efficiency in operation.
Features & Benefits
• Constructed with tinned copper wire for enhanced conductivity
• PVC insulation provides excellent protection against environmental factors
• Rated for temperatures between -40 °C to +105 °C for versatility
• Flame retardant characteristics ensure safety in critical applications
• Unshielded single core wire simplifies installation and integration
• Chemical resistant wire withstands exposure to harsh substances
• PVC insulation provides excellent protection against environmental factors
• Rated for temperatures between -40 °C to +105 °C for versatility
• Flame retardant characteristics ensure safety in critical applications
• Unshielded single core wire simplifies installation and integration
• Chemical resistant wire withstands exposure to harsh substances
Applications
• Used for internal wiring in electrical equipment
• Ideal for control panels and industrial automation systems
• Suitable for use in both electrical and mechanical
• Employed in the wiring of appliances and lighting fixtures
• Utilised in the automotive and aerospace industries for reliable connections
• Ideal for control panels and industrial automation systems
• Suitable for use in both electrical and mechanical
• Employed in the wiring of appliances and lighting fixtures
• Utilised in the automotive and aerospace industries for reliable connections
What makes this wire suitable for high temperature applications?
The wire's construction allows it to operate safely at temperatures from -40 °C to +105 °C, making it ideal for environments where temperature fluctuations occur.
How does the insulation material contribute to the wire's performance?
The PVC insulation provides excellent protection against chemicals, oils, and solvents, enhancing the wire's durability and performance in demanding environments.
Can this wire be used in outdoor applications?
While it is designed for high temperature and chemical resistance, it is advisable to check specific environmental conditions before using it outdoors. Proper installation and protection methods should be employed.
What type of projects would benefit from using this wire?
This wire is perfect for automation, electronics, and other projects where reliability and safety are needed, particularly in control panels or machinery wiring.
