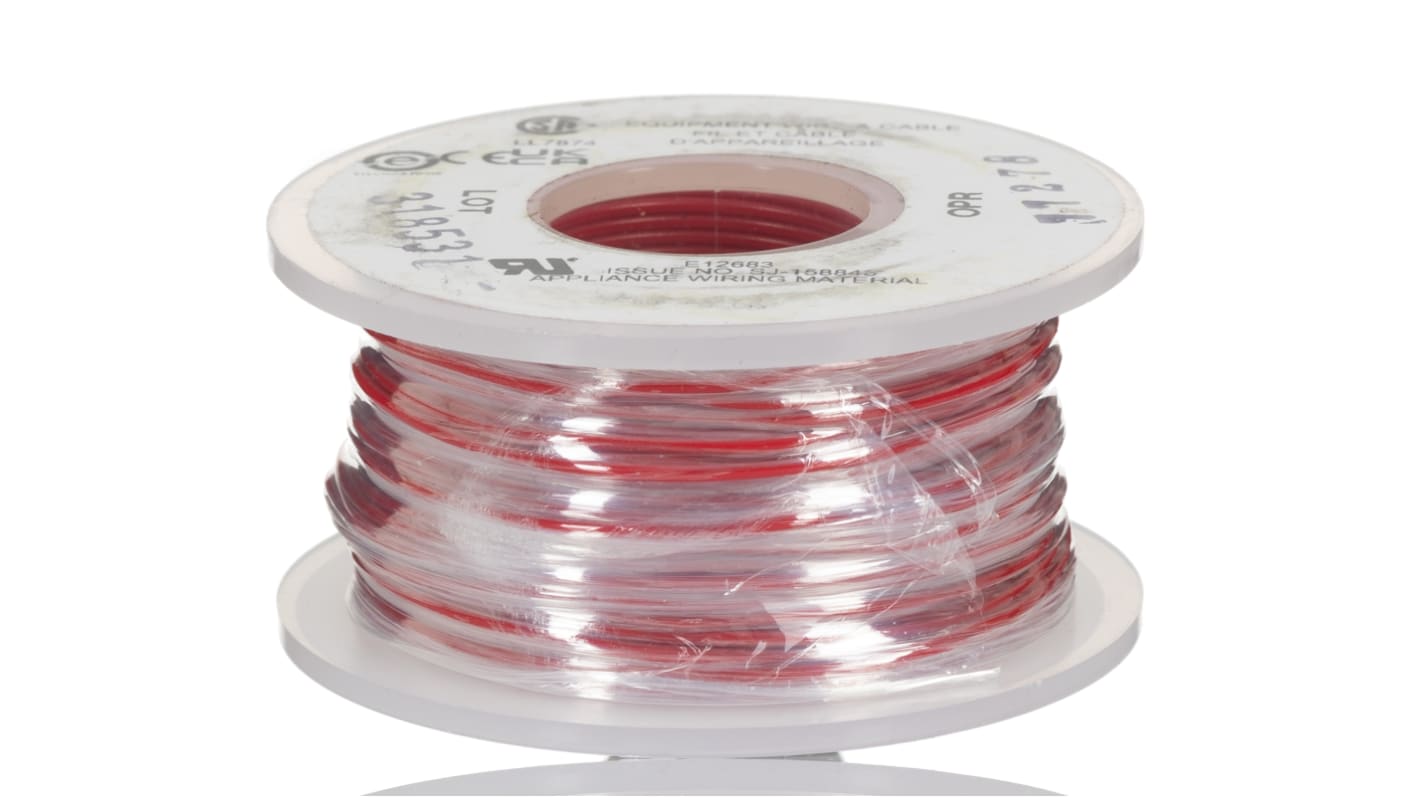

Alpha Wire Hookup Wire PVC Series Red 0.13 mm² Hook Up Wire, 26 AWG, 7 x 160 μm, 160 μm core strands, 30 m, PVC, 3049
- RS Stock No.:
- 842-5230
- Distrelec Article No.:
- 300-83-046
- Mfr. Part No.:
- 3049 RD005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£17.98
(exc. VAT)
£21.58
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
- Plus 22 unit(s) ready to ship from another location
- Plus 22 unit(s) shipping from 19 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £17.98 | £0.599 |
*price indicative
- RS Stock No.:
- 842-5230
- Distrelec Article No.:
- 300-83-046
- Mfr. Part No.:
- 3049 RD005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.13mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Red | |
| American Wire Gauge | 26AWG | |
| Core Strands | 7 x 160 μm | |
| Cable Length | 30m | |
| Voltage | 300V | |
| Outside Diameter | 1.3mm | |
| Maximum Operating Temperature | 105°C | |
| Conductor Material | Copper | |
| Sub Type | UL1007 | |
| Cable Type | Hookup | |
| Jacket Material | PVC | |
| Standards/Approvals | AWM/STYLE 1569, CSA International TR-64, FT1, UL AWM/STYLE 1007, VW-1 | |
| Minimum Operating Temperature | -40°C | |
| Fire Behaviour | Flame Retardant | |
| Series | Hookup Wire PVC | |
| Number of Strands | 7 | |
| Size of Strands | 160μm | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.13mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Red | ||
American Wire Gauge 26AWG | ||
Core Strands 7 x 160 μm | ||
Cable Length 30m | ||
Voltage 300V | ||
Outside Diameter 1.3mm | ||
Maximum Operating Temperature 105°C | ||
Conductor Material Copper | ||
Sub Type UL1007 | ||
Cable Type Hookup | ||
Jacket Material PVC | ||
Standards/Approvals AWM/STYLE 1569, CSA International TR-64, FT1, UL AWM/STYLE 1007, VW-1 | ||
Minimum Operating Temperature -40°C | ||
Fire Behaviour Flame Retardant | ||
Series Hookup Wire PVC | ||
Number of Strands 7 | ||
Size of Strands 160μm | ||
Belden Alpha Wire Hook Up Wire, Single-Core Type, PVC Insulation - 3049 Series - 3049 RD005
Looking for a general-purpose wiring solution to link components in your equipment? Grab this 30m reel of hook up wire from Belden Alpha Wire for your toolkit. It has seven copper strands to get signals from A to B in a flash while providing flexibility that makes installation straightforward. A bright red sheath makes it easy to spot when you're working on a complex arrangement.
Features & Benefits
• Reliable performance in temperatures between -40°C and +105°C, so safe for harsh environments
• Outer diameter of 1.3mm is ideal for use in tight areas or handheld devices
• PVC insulation prevents electrical leaks and resists abrasion, corrosion and impacts
Applications
• Robotics systems
• Telecommunications networks
• Power distribution services
Does this product have any fire-safety features?
Yes. This wire is made from flame-retardant material so it self-extinguishes in the event of a fire.
