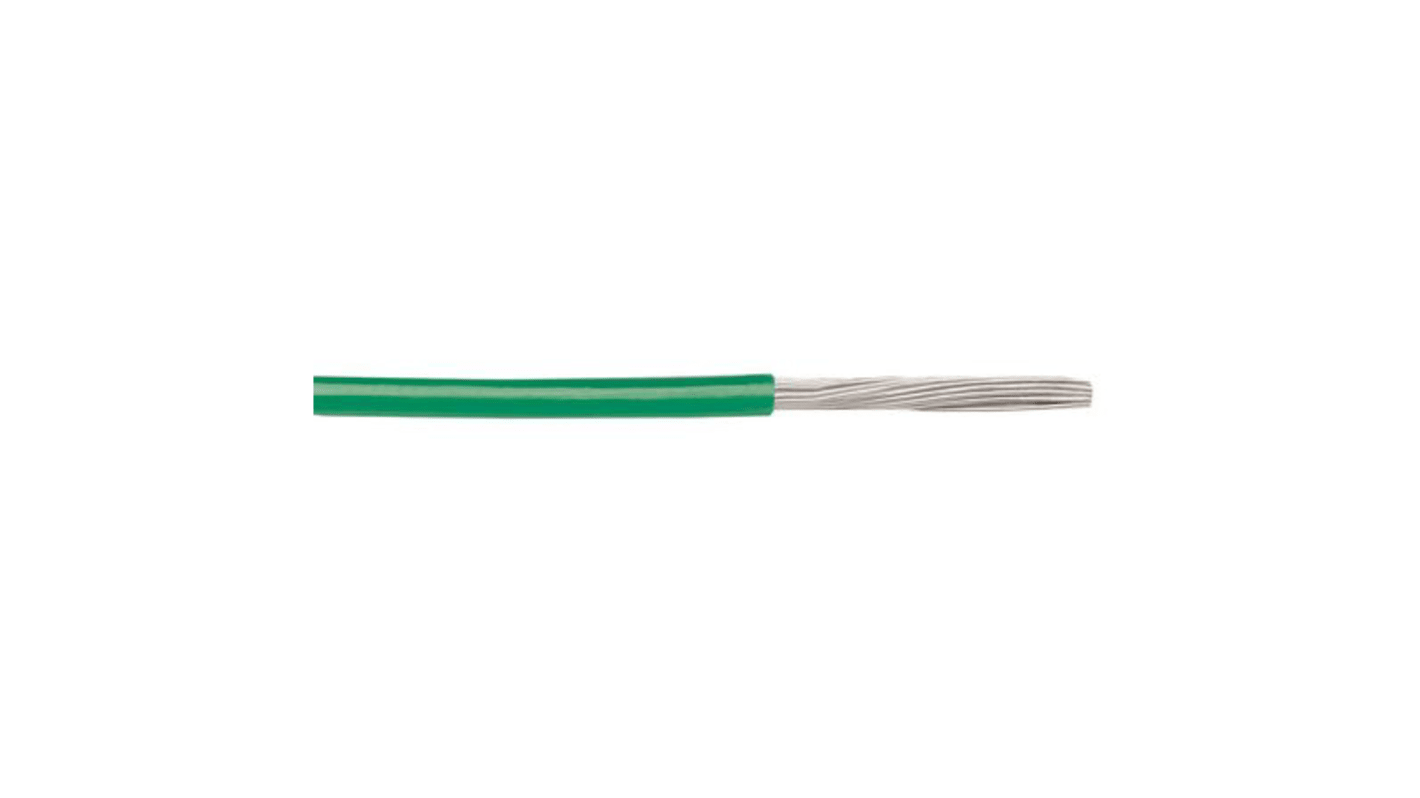

Alpha Wire Hook-up Wire PVC Series Green 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 30m, PVC Insulation, 3049 GR005
- RS Stock No.:
- 842-5220
- Distrelec Article No.:
- 300-83-045
- Mfr. Part No.:
- 3049 GR005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£16.20
(exc. VAT)
£19.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £16.20 | £0.54 |
*price indicative
- RS Stock No.:
- 842-5220
- Distrelec Article No.:
- 300-83-045
- Mfr. Part No.:
- 3049 GR005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.13 mm² | |
| Sheath Colour | Green | |
| American Wire Gauge | 26 AWG | |
| Cable Shape | Wire/Single Core | |
| Core Strands | 7/0.16 mm | |
| Length | 30m | |
| Insulation Material | PVC | |
| Outer Diameter | 1.3mm | |
| Voltage Rating | 300 V | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Copper | |
| Wire Style | UL1007 | |
| Standards Met | AWM/STYLE 1569, CSA International TR-64, FT1, UL AWM/STYLE 1007, VW-1 | |
| Fire Behaviour | Flame Retardant | |
| Series | Hook-up Wire PVC | |
| Insulation Wall Thickness | 0.4mm | |
| Number of Strands | 7 | |
| Size of Strands | 0.16 mm | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.13 mm² | ||
Sheath Colour Green | ||
American Wire Gauge 26 AWG | ||
Cable Shape Wire/Single Core | ||
Core Strands 7/0.16 mm | ||
Length 30m | ||
Insulation Material PVC | ||
Outer Diameter 1.3mm | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Copper | ||
Wire Style UL1007 | ||
Standards Met AWM/STYLE 1569, CSA International TR-64, FT1, UL AWM/STYLE 1007, VW-1 | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Insulation Wall Thickness 0.4mm | ||
Number of Strands 7 | ||
Size of Strands 0.16 mm | ||
Belden Hook-up Wire, 0.13mm² Cross Sectional Area, Green Sheath Colour - 3049 GR005
This hook-up wire is designed for high-performance electrical applications. With a tinned copper conductor and PVC insulation, it measures 30 m in length and has an outer diameter of 1.3 mm. The wire is built to withstand extreme temperatures, ranging from -40 °C to +105 °C, and is rated for a voltage of 300 V. The flame retardant properties make it suitable for various demanding environments.
Features & Benefits
• Offers excellent conductivity with tinned copper construction
• Withstands temperatures from -40 °C to +105 °C
• Manufactured with flame retardant materials for safety
• Provides reliable performance with a 300 V rating
• Insulation resistant to oil, solvents, and chemicals
• Withstands temperatures from -40 °C to +105 °C
• Manufactured with flame retardant materials for safety
• Provides reliable performance with a 300 V rating
• Insulation resistant to oil, solvents, and chemicals
Applications
• Suitable for internal wiring in electrical devices
• Ideal for automation control circuits
• Used in household appliances and electronics
• Commonly employed in mechanical engineering projects
• Utilised in custom cable assemblies for specific tasks
• Ideal for automation control circuits
• Used in household appliances and electronics
• Commonly employed in mechanical engineering projects
• Utilised in custom cable assemblies for specific tasks
What specific characteristics make this wire suitable for high-temperature applications?
The wire features high temperature ratings, allowing operation from -40 °C to +105 °C. Its PVC insulation is formulated to maintain integrity under various thermal conditions, ensuring longevity in demanding environments.
How does the oil and chemical resistance improve usability?
The resistance to oils, solvents, and chemicals ensures that this wire can be used in diverse environments without degrading over time, making it suitable for industrial applications and outdoor installations.
Can this wire be reliably used in automation systems?
Yes, the wire's compliance with UL1007 and AWM/STYLE 1569 standards supports its use in automation systems, ensuring safety and functionality in controlling devices effectively.
