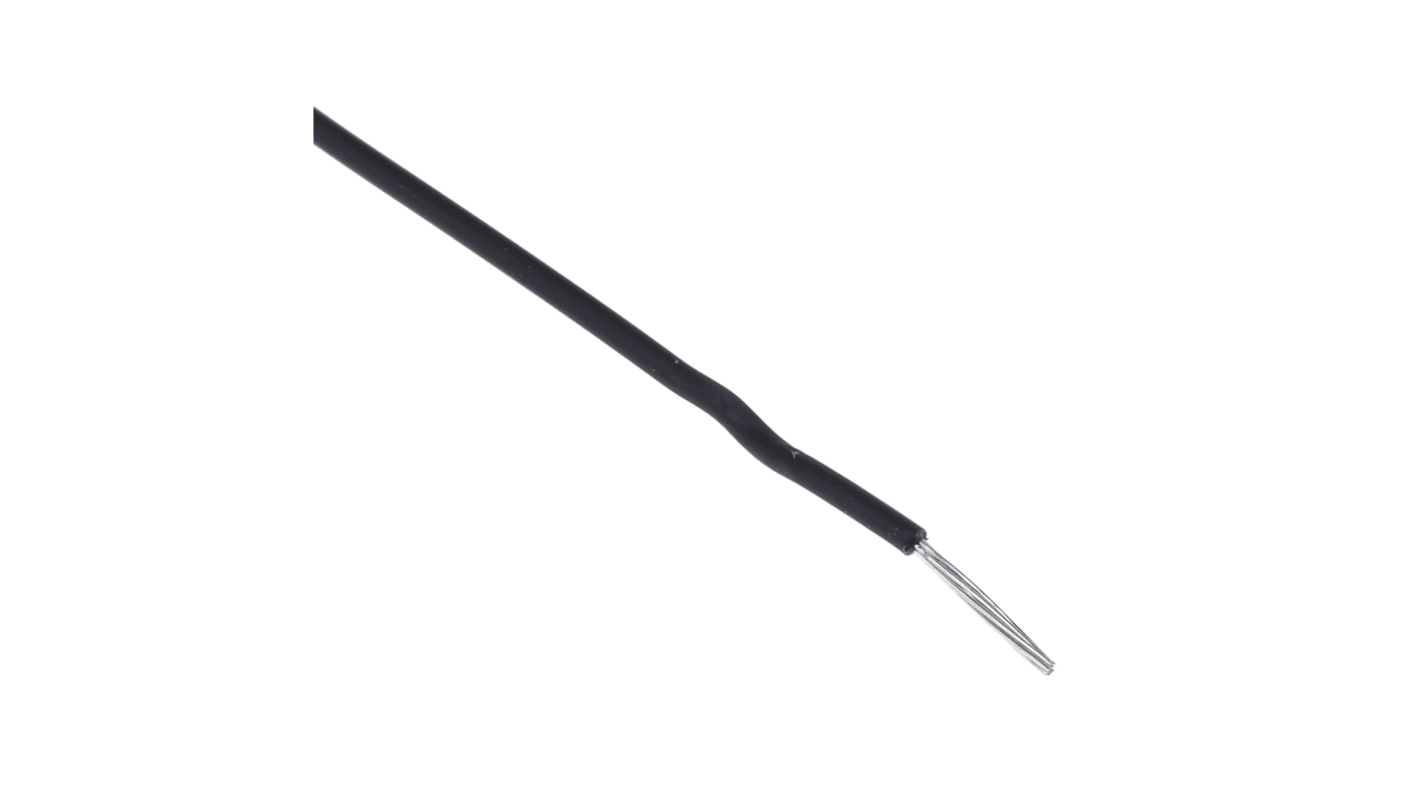

Alpha Wire Ecogen Ecowire Series Black 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 305m, MPPE Insulation, 6711 BK001
- RS Stock No.:
- 741-7979
- Distrelec Article No.:
- 300-99-393
- Mfr. Part No.:
- 6711 BK001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£119.52
(exc. VAT)
£143.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 12 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £119.52 | £0.392 |
*price indicative
- RS Stock No.:
- 741-7979
- Distrelec Article No.:
- 300-99-393
- Mfr. Part No.:
- 6711 BK001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.13 mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 26 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 7/0.16 mm | |
| Length | 305m | |
| Insulation Material | MPPE | |
| Voltage Rating | 600 V | |
| Outer Diameter | 0.97mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Tinned Copper | |
| Standards Met | CE, CSA, UL | |
| Wire Style | UL11028 | |
| Cable Type | Single Core | |
| Fire Behaviour | Flame Retardant | |
| Tri-rated | No | |
| Series | Ecogen Ecowire | |
| Hook Up Wire Type | High Temperature | |
| Insulation Wall Thickness | 0.3mm | |
| Shield Type | Unshielded | |
| Number of Strands | 7 | |
| Size of Strands | 0.16 mm | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.13 mm² | ||
Sheath Colour Black | ||
American Wire Gauge 26 AWG | ||
Cable Shape Single Core | ||
Core Strands 7/0.16 mm | ||
Length 305m | ||
Insulation Material MPPE | ||
Voltage Rating 600 V | ||
Outer Diameter 0.97mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Tinned Copper | ||
Standards Met CE, CSA, UL | ||
Wire Style UL11028 | ||
Cable Type Single Core | ||
Fire Behaviour Flame Retardant | ||
Tri-rated No | ||
Series Ecogen Ecowire | ||
Hook Up Wire Type High Temperature | ||
Insulation Wall Thickness 0.3mm | ||
Shield Type Unshielded | ||
Number of Strands 7 | ||
Size of Strands 0.16 mm | ||
Belden Ecogen Ecowire Series Hook Up Wire, 0.13mm² Cross Sectional Area, 26 AWG American Wire Gauge - 6711 BK001
This hook up wire is a high-temperature, single core, unshielded cable designed for versatile applications in the automation and electrical industries. Measuring 305m in length, the wire features a black MPPE insulation that withstands a broad temperature range from -40 °C to +105 °C. It is compliant with international standards including CE, CSA, and UL, ensuring safety and reliability for users demanding quality.
Features & Benefits
• Made with tinned copper for reliable conductivity
• High-temperature rating ensures performance in extreme conditions
• Rated for 600V, suitable for industrial applications
• Flame retardant properties enhance safety
• Complies with UL11028 standards for additional quality
• 7 strands of 0.16mm core ensure flexibility and strength
• High-temperature rating ensures performance in extreme conditions
• Rated for 600V, suitable for industrial applications
• Flame retardant properties enhance safety
• Complies with UL11028 standards for additional quality
• 7 strands of 0.16mm core ensure flexibility and strength
Applications
• Ideal for wiring in harsh environmental conditions
• Commonly used in automation controls and machinery
• Suitable for connections in electrical and electronic devices
• Works effectively in homes and commercial installations
• Utilised for custom wiring jobs where flexibility is essential
• Commonly used in automation controls and machinery
• Suitable for connections in electrical and electronic devices
• Works effectively in homes and commercial installations
• Utilised for custom wiring jobs where flexibility is essential
What are the key advantages of using this wire in high-temperature environments?
Its high-temperature resilience allows for unimpeded performance in extreme conditions, reducing the risk of insulation breakdown and ensuring the longevity of connections.
How does the cable's flame retardant property contribute to safety?
The flame retardant nature limits the spread of fire, providing an essential safety feature in environments where heat generation may occur, thereby increasing overall system reliability.
What specifications should be considered when determining the wire's compatibility with existing equipment?
The wire's voltage rating of 600 V and compliance with UL11028 are crucial for ensuring compatibility with various electrical components and systems, especially in automated environments.
