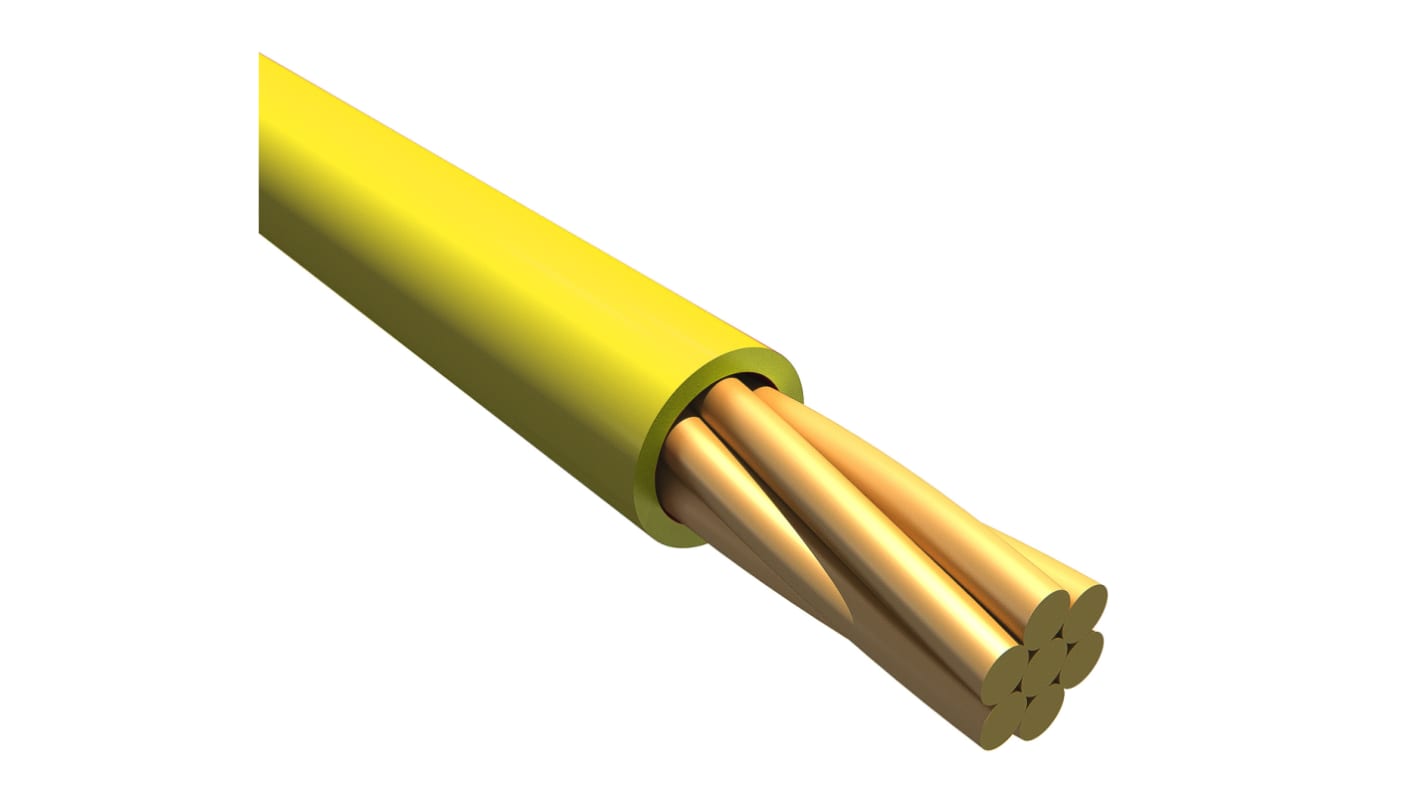

Alpha Wire Ecogen Ecowire Series Yellow 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 30m, MPPE Insulation, 6711 YL005
- RS Stock No.:
- 687-7402
- Distrelec Article No.:
- 300-59-319
- Mfr. Part No.:
- 6711 YL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£22.94
(exc. VAT)
£27.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 12 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £22.94 | £0.765 |
*price indicative
- RS Stock No.:
- 687-7402
- Distrelec Article No.:
- 300-59-319
- Mfr. Part No.:
- 6711 YL005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.13 mm² | |
| Sheath Colour | Yellow | |
| American Wire Gauge | 26 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 7/0.16 mm | |
| Length | 30m | |
| Insulation Material | MPPE | |
| Outer Diameter | 0.97mm | |
| Voltage Rating | 600 V | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tinned Copper | |
| Standards Met | CE, CSA, UL | |
| Wire Style | UL11028 | |
| Cable Type | Single Core | |
| Fire Behaviour | Flame Retardant | |
| Series | Ecogen Ecowire | |
| Tri-rated | No | |
| Hook Up Wire Type | High Temperature | |
| Insulation Wall Thickness | 0.3mm | |
| Shield Type | Unshielded | |
| Size of Strands | 0.16 mm | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.13 mm² | ||
Sheath Colour Yellow | ||
American Wire Gauge 26 AWG | ||
Cable Shape Single Core | ||
Core Strands 7/0.16 mm | ||
Length 30m | ||
Insulation Material MPPE | ||
Outer Diameter 0.97mm | ||
Voltage Rating 600 V | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tinned Copper | ||
Standards Met CE, CSA, UL | ||
Wire Style UL11028 | ||
Cable Type Single Core | ||
Fire Behaviour Flame Retardant | ||
Series Ecogen Ecowire | ||
Tri-rated No | ||
Hook Up Wire Type High Temperature | ||
Insulation Wall Thickness 0.3mm | ||
Shield Type Unshielded | ||
Size of Strands 0.16 mm | ||
Number of Strands 7 | ||
Belden Ecogen Ecowire Series Hook Up Wire, 0.13mm² Cross Sectional Area, 30 m Length - 6711 YL005
This hook up wire is a single core cable designed for electrical connections within various applications. Featuring a cross-sectional area of 0.13 mm² and a vivid yellow sheath, it ensures visibility and compliance. This high-temperature wire has a length of 30m, providing ample material for installations while maintaining performance under extreme conditions.
Features & Benefits
• High-temperature rated, suitable for up to +105 °C
• Tinned copper conductor enhances corrosion resistance
• Flame-retardant insulation ensures safety in hazardous environments
• MPPE insulated for superior mechanical and thermal stability
• Rated for 600V, accommodating various electrical systems
• 26 AWG wire offers flexibility in tight spaces
• Tinned copper conductor enhances corrosion resistance
• Flame-retardant insulation ensures safety in hazardous environments
• MPPE insulated for superior mechanical and thermal stability
• Rated for 600V, accommodating various electrical systems
• 26 AWG wire offers flexibility in tight spaces
Applications
• Ideal for internal wiring in control panels
• Suitable for automotive and transportation industry use
• Used for connections in automation systems
• Suitable for low voltage lighting installations
• Employed in electronic devices requiring compact wiring solutions
• Suitable for automotive and transportation industry use
• Used for connections in automation systems
• Suitable for low voltage lighting installations
• Employed in electronic devices requiring compact wiring solutions
What temperature range can this wire withstand?
The wire can operate effectively in temperatures ranging from -40 °C to +105 °C, making it suitable for diverse environments.
How does the insulation contribute to the wire's safety?
The MPPE insulation is flame-retardant, which significantly reduces the risk of fire hazards during electrical usage.
What materials are used in the wire's construction?
The wire features a tinned copper conductor, which increases its lifespan by preventing oxidation, alongside durable MPPE insulation.
Is this wire compliant with international safety standards?
Yes, it meets CE, CSA, and UL standards, ensuring it adheres to strict safety guidelines for use in electrical applications.
What determines the wire's flexibility for installation?
The 26 AWG gauge permits easy bending and routing, making it ideal for installations in confined spaces or intricate layouts.
EcoWire ™
