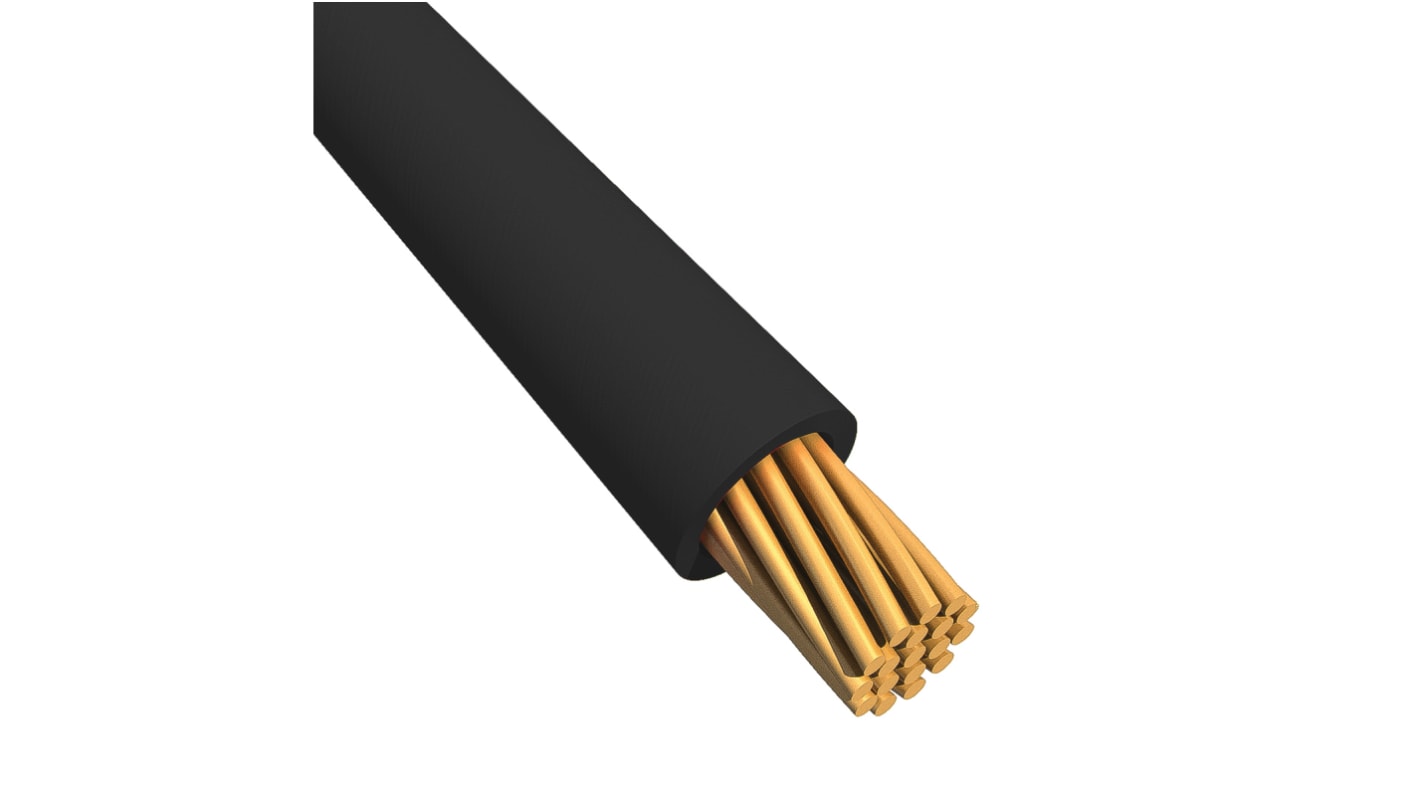

Alpha Wire Ecogen Ecowire Series Black 2.1 mm² Hook Up Wire, 14 AWG, 41/0.25 mm, 305m, MPPE Insulation, 6717 BK001
- RS Stock No.:
- 838-5122
- Mfr. Part No.:
- 6717 BK001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£480.50
(exc. VAT)
£576.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £480.50 | £1.575 |
*price indicative
- RS Stock No.:
- 838-5122
- Mfr. Part No.:
- 6717 BK001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 2.1 mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 14 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 41/0.25 mm | |
| Length | 305m | |
| Insulation Material | MPPE | |
| Voltage Rating | 600 V | |
| Outer Diameter | 2.44mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Copper | |
| Standards Met | CE, CSA, UL | |
| Wire Style | UL11028 | |
| Series | Ecogen Ecowire | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.3mm | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 41 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 2.1 mm² | ||
Sheath Colour Black | ||
American Wire Gauge 14 AWG | ||
Cable Shape Single Core | ||
Core Strands 41/0.25 mm | ||
Length 305m | ||
Insulation Material MPPE | ||
Voltage Rating 600 V | ||
Outer Diameter 2.44mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Copper | ||
Standards Met CE, CSA, UL | ||
Wire Style UL11028 | ||
Series Ecogen Ecowire | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.3mm | ||
Size of Strands 0.25 mm | ||
Number of Strands 41 | ||
Alpha Wire 600 V, mPPE Hook Up Wire, EcoWire Series
EcoWire from Alpha Wire is the latest innovation in hook-up wire. EcoWire combines increased performance with a minimal environmental impact due to it being fully recyclable.
This hook up wire is manufactured from a modified polyphenylene ether (mPPE) thermoplastic. EcoWire can be easily recycled since it does not contain hazardous materials. The enhanced dielectric properties of this hook up wire make it possible to have a reduced wall thickness while still maintaining the same electrical properties as PVC.
This hook up wire is manufactured from a modified polyphenylene ether (mPPE) thermoplastic. EcoWire can be easily recycled since it does not contain hazardous materials. The enhanced dielectric properties of this hook up wire make it possible to have a reduced wall thickness while still maintaining the same electrical properties as PVC.
Features and Benefits
• Fully recyclable
• Up to 45% smaller diameter than PVC
• Up to 40% lighter than other insulation materials
• Excellent dielectric strength
• Low specific gravity
• Flame retardant to UL VW-1 rating
• EcoWire Plus range available with excellent resistance to hazardous oils and chemicals
• Stranded or solid tinned copper conductors
• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
• Up to 45% smaller diameter than PVC
• Up to 40% lighter than other insulation materials
• Excellent dielectric strength
• Low specific gravity
• Flame retardant to UL VW-1 rating
• EcoWire Plus range available with excellent resistance to hazardous oils and chemicals
• Stranded or solid tinned copper conductors
• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
What is UL/CSA standard?
The UL standard (Underwriters Laboratories) is a recognised certificate that requires the rigorous testing of product samples to determine whether the product meets specific, defined requirements. These requirements are often based on UL's published and nationally recognised Standards for Safety.
CSA approval (Canadian Standards Association) provides product testing and certification for electrical, mechanical, plumbing, gas and various other products. This approval is recognised in Canada, the U.S and various countries around the world. It includes a stringent series of flame tests on wires and cables.
Product Application Information
Hook up wire is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances.
Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.
Standards
UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS/RoHS2 Compliant, IEC 60332-2 Flame Behavior, REACH Compliant, CE Compliant
Belden Alpha Wire Hook Up Wire, Single Core, 600V Voltage Rating - EcoWire Series - 6717 BK005
For high-performance connections with a low environmental impact, choose this hook up wire from Belden Alpha Wire. The innovative mPPE insulator's superior dielectric properties make it effective at a reduced thickness, so it offers a reduction in diameter of up to 45% over traditional PVC wires. Plus, as it contains no hazardous chemicals, it's easily recyclable, giving you a reliable power solution that meets your sustainability targets.
Features & Benefits
• Flame-retardant jacket material self-extinguishes in under 60 seconds to help stop the spread of fire
• 600V voltage rating is compatible with high-powered machinery
• Wide operating temperature range of -40°C to +105°C means it's up to the task in extreme conditions
• 600V voltage rating is compatible with high-powered machinery
• Wide operating temperature range of -40°C to +105°C means it's up to the task in extreme conditions
Applications
• Control panels
• IT networks
• HVAC systems
• IT networks
• HVAC systems
Is this hook up wire flexible?
Yes – with a bend radius of 10 times the 2.44mm cable diameter, you can install this pliable product in awkward spaces.
EcoWire ™
