Lapp ÖLFLEX® H05V-K Series Grey 0.75 mm² Hook Up Wire, 18AWG, 24/32, 100m, PVC Insulation, 4510062

View all Hook Up Wire

Subtotal (1 reel of 100 metres)*

£41.91

(exc. VAT)

£50.29

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 19 unit(s) ready to ship
  • Plus 2 unit(s) ready to ship from another location
  • Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£41.91£0.419

*price indicative

RS Stock No.:
724-4358
Mfr. Part No.:
4510062
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Cross Sectional Area

0.75 mm²

Sheath Colour

Grey

American Wire Gauge

18AWG

Cable Shape

Single Core

Core Strands

24/32

Length

100m

European Harmonised Code

H05V-K

Insulation Material

PVC

Voltage Rating

500 V

Outer Diameter

2.4mm

Minimum Operating Temperature

-30°C

CPR Certification

Eca

Maximum Operating Temperature

+80°C

Conductor Material

Bare Copper

Series

ÖLFLEX® H05V-K

Number of Strands

24

Size of Strands

32 AWG

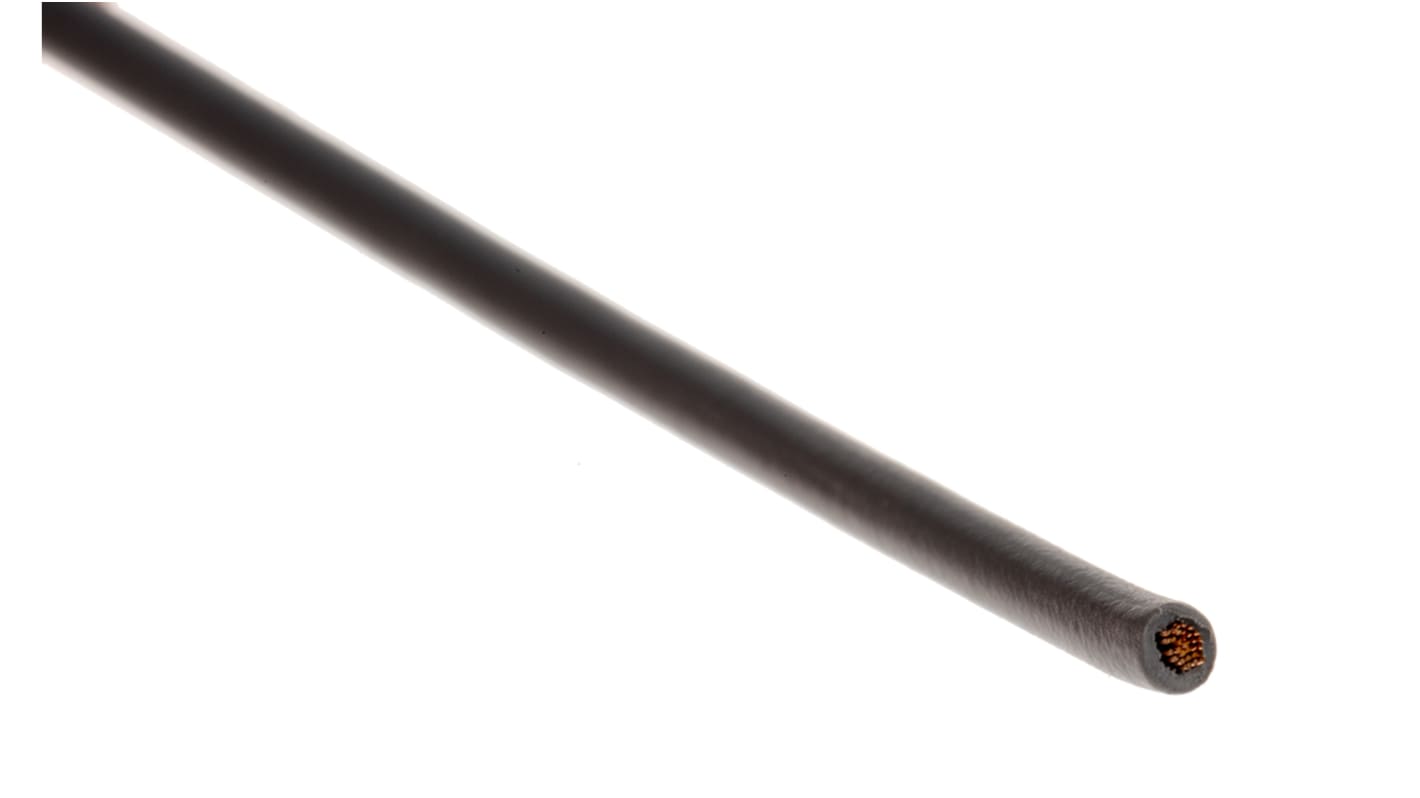

Lapp Single Core Cable - H05V-K


From Lapp, this single-core H05V-K hook-up wire is ideal for fixed installations in power and control applications. The cable features a fine-wired copper conductor with PVC based core insulation, and is flame retardant.

The H05V-K hook-up wire has European HAR cable type certification.

Features and Benefits

• Bare copper wire conductor according to VDE 0295 class 5; HD 383 S2
• Nominal working voltage 300/500V
• Minimum bending radius 6 x cable diameter
• Flame-retardant according to IEC 60332-1-2
• Operating Temperature when Fixed: -40°C to +80°C

Applications

These versatile hook-up wires are typically used in the internal wiring of devices, or for protected installations in and on lighting equipment. This hook-up wire is often used in the following applications:

• Power Management
• Industrial Machinery
• Medical Equipment

Frequently Asked Questions

Can this wire be used outdoors?

Wires are designed to be used in indoor systems, however, the wide temperature operation resistance may allow for a short period of time outdoor operation.

Which wire types are a better choice, stranded or solid?

Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.

Note

These are supplied in boxes not reels.

Standards

EN 50525-2-31, IEC 60332-1-2
