Lapp H05V-K Series Brown 0.75 mm² Hook Up Wire, 24, 100 m, 4510032, Polyvinyl Chloride
- RS Stock No.:
- 724-4342
- Mfr. Part No.:
- 4510032
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£49.71
(exc. VAT)
£59.65
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 7 unit(s) shipping from 01 June 2026
- Plus 15 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £49.71 | £0.497 |
*price indicative
- RS Stock No.:
- 724-4342
- Mfr. Part No.:
- 4510032
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Cross Sectional Area | 0.75mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Brown | |
| Core Strands | 24 | |
| Cable Length | 100m | |
| Voltage | 500V | |
| Outside Diameter | 2.4mm | |
| Maximum Operating Temperature | +70°C | |
| Conductor Material | Copper | |
| Sub Type | Power and Control Cable | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | EN 50525-2-31, CE, EAC | |
| Fire Behaviour | Flame Retardant | |
| Series | H05V-K | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Cross Sectional Area 0.75mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Brown | ||
Core Strands 24 | ||
Cable Length 100m | ||
Voltage 500V | ||
Outside Diameter 2.4mm | ||
Maximum Operating Temperature +70°C | ||
Conductor Material Copper | ||
Sub Type Power and Control Cable | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals EN 50525-2-31, CE, EAC | ||
Fire Behaviour Flame Retardant | ||
Series H05V-K | ||
Hazardous Area Certification No | ||

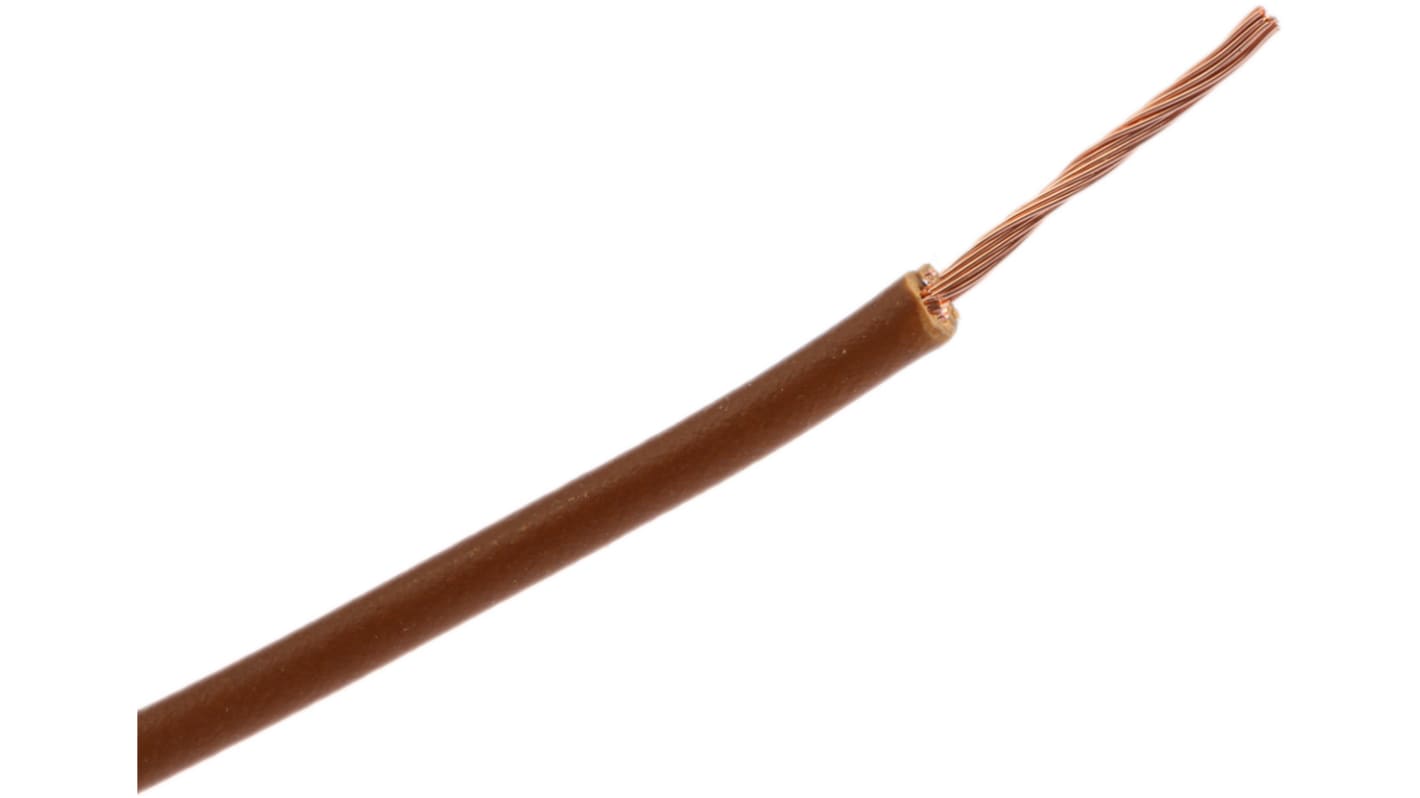

LAPP ÖLFLEX H05V-K Series Hook Up Wire, 100m Cable Length, 0.75mm² Cross Sectional Area - 4510032
This hookup wire is designed for internal wiring and protected installations, providing a flexible connection option for power and control tasks within electrical and electronic assemblies. It is intended for use where a single insulated conductor is required for wiring inside devices, lighting equipment and signalling systems, offering a practical solution for industrial and automation environments.
Features & Benefits
• Flame-retardant construction improves safety in confined installations
• PVC insulation ensures chemical and mechanical resistance
• 24-strand bare copper gives high flexural performance
• Rated for 500V to support moderate-voltage circuits
• Usable between -40°C and +70°C for varied ambient conditions
• PVC insulation ensures chemical and mechanical resistance
• 24-strand bare copper gives high flexural performance
• Rated for 500V to support moderate-voltage circuits
• Usable between -40°C and +70°C for varied ambient conditions
**Applications**
• Suitable for internal device wiring in control panels
• Ideal for protected installation inside luminaires and lighting gear
• Used with signalling systems laid in plaster or conduit
• Can be used for point-to-point connections in automation cabinets
• Ideal for protected installation inside luminaires and lighting gear
• Used with signalling systems laid in plaster or conduit
• Can be used for point-to-point connections in automation cabinets
What conductor construction enables its flexibility?
The conductor consists of numerous fine bare copper strands conforming to conductor class 5 which increases pliability for repeated bending.
How is the product supplied for installers?
It is supplied on a 100m reel enabling continuous runs and reduced jointing during installation.
What are the insulation material and its thermal limits during moving installations?
Insulation is PVC-based and the cable is suitable for moved use down to +5 °C and up to +70 °C.
Note
These are supplied in boxes not reels.
Standards
EN 50525-2-31, IEC 60332-1-2
