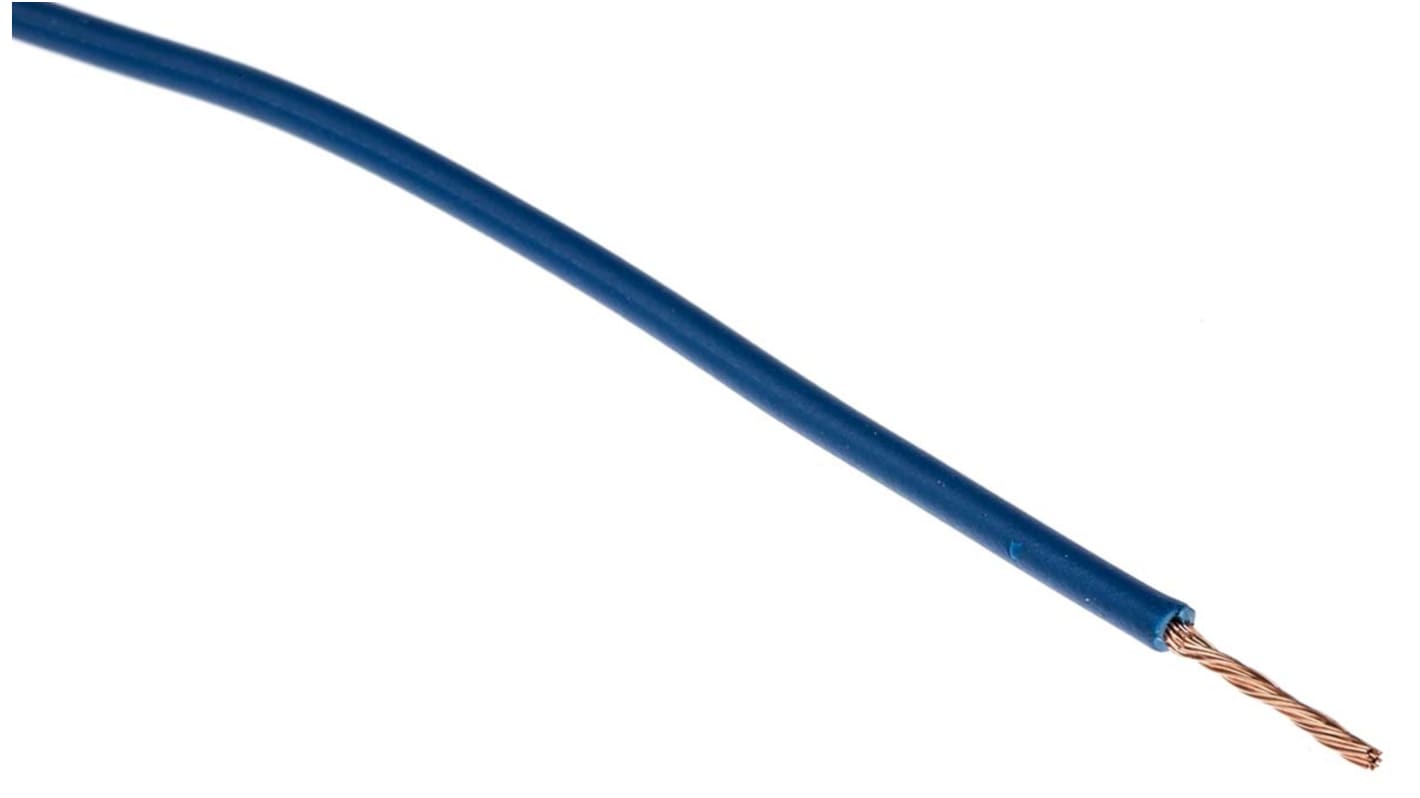

Lapp Dark Blue 0.75 mm² Hook Up Wire, 18AWG, 24/32, 100m, PVC Insulation, 4510142
- RS Stock No.:
- 724-4351
- Distrelec Article No.:
- 300-49-620
- Mfr. Part No.:
- 4510142
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£38.93
(exc. VAT)
£46.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 75 unit(s) ready to ship
- Plus 32 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £38.93 | £0.389 |
*price indicative
- RS Stock No.:
- 724-4351
- Distrelec Article No.:
- 300-49-620
- Mfr. Part No.:
- 4510142
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Cross Sectional Area | 0.75 mm² | |
Sheath Colour | Dark Blue | |
Cable Shape | Single Core | |
American Wire Gauge | 18AWG | |
Core Strands | 24/32 | |
Length | 100m | |
European Harmonised Code | H05V-K | |
Insulation Material | PVC | |
Voltage Rating | 500 V | |
Outer Diameter | 2.4mm | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -30°C | |
CPR Certification | Eca | |
Conductor Material | Bare Copper | |
Size of Strands | 32 AWG | |
Number of Strands | 24 | |
Select all | ||
---|---|---|
Brand Lapp | ||
Cross Sectional Area 0.75 mm² | ||
Sheath Colour Dark Blue | ||
Cable Shape Single Core | ||
American Wire Gauge 18AWG | ||
Core Strands 24/32 | ||
Length 100m | ||
European Harmonised Code H05V-K | ||
Insulation Material PVC | ||
Voltage Rating 500 V | ||
Outer Diameter 2.4mm | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -30°C | ||
CPR Certification Eca | ||
Conductor Material Bare Copper | ||
Size of Strands 32 AWG | ||
Number of Strands 24 | ||
- COO (Country of Origin):
- DE
LAPP Hook-Up Wire, 24/32 Core Strands,100m Length - 4510142
For reliable internal wiring in your devices, turn to this hook-up wire from LAPP. Its bare copper conductor material combines high conductivity with flexibility, so it's an effective choice for use in small setups. Protected by a resilient PVC sheath, the cable is flame-retardant and oil-resistant to keep your wires secure even in demanding industrial applications. The wire's stranded core design means it easily adapts to bending and reshaping, making it suitable for installation in high-traffic systems.
Features & Benefits
• Operates between -30°C and +80°C for safe industrial use
• Supplied on a 100m reel for neat storage and easy handling
• Voltage rating of 500V, making it suitable for commercial and light-industrial applications
• Supplied on a 100m reel for neat storage and easy handling
• Voltage rating of 500V, making it suitable for commercial and light-industrial applications
Applications
• Power management
• Fixed lighting installations
• Signalling systems
• Fixed lighting installations
• Signalling systems
What's a stranded-core cable and how does it benefit my wiring setup?
Wire cores come in solid and stranded types. Stranded cores consist of multiple lengths of wire wrapped around each other, meaning they're more flexible than solid cores and can be bent and reshaped without losing conductivity. As they have a higher attenuation rate, stranded cables are best used to support signal strength over shorter distances.
