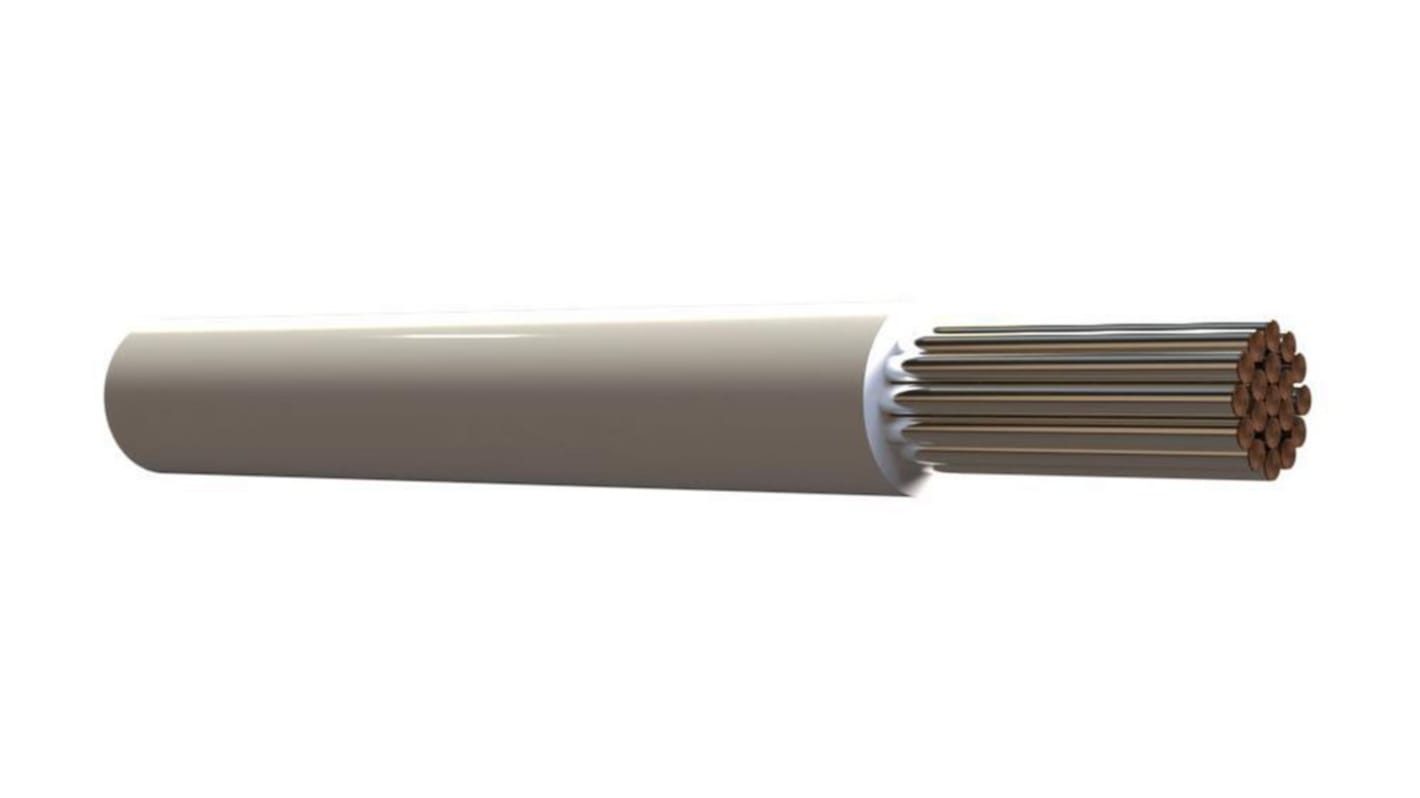

Habia E1619 Series White 0.96 mm² Hook Up Wire, 18 AWG, 100 m, Polytetrafluoroethylene, E 1819 WHITE
- RS Stock No.:
- 284-4350
- Distrelec Article No.:
- 301-25-983
- Mfr. Part No.:
- E 1819 WHITE
- Brand:
- Habia
Subtotal (1 reel of 100 metres)*
£181.00
(exc. VAT)
£217.00
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 200 unit(s), ready to ship from another location
Units | Per unit | Per Reel* |
|---|---|---|
| 100 + | £1.81 | £181.00 |
*price indicative
- RS Stock No.:
- 284-4350
- Distrelec Article No.:
- 301-25-983
- Mfr. Part No.:
- E 1819 WHITE
- Brand:
- Habia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Habia | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 0.96 mm² | |
| Jacket Colour | White | |
| American Wire Gauge | 18AWG | |
| Cable Length | 100m | |
| Voltage | 3400V | |
| Maximum Operating Temperature | 200°C | |
| Conductor Material | Silver Plated Copper | |
| Minimum Operating Temperature | -65°C | |
| Cable Type | Stranded | |
| Jacket Material | Polytetrafluoroethylene | |
| Standards/Approvals | RoHS | |
| Sub Type | Hookup Wire | |
| Fire Behaviour | Flame Retardant | |
| Series | E1619 | |
| Select all | ||
|---|---|---|
Brand Habia | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 0.96 mm² | ||
Jacket Colour White | ||
American Wire Gauge 18AWG | ||
Cable Length 100m | ||
Voltage 3400V | ||
Maximum Operating Temperature 200°C | ||
Conductor Material Silver Plated Copper | ||
Minimum Operating Temperature -65°C | ||
Cable Type Stranded | ||
Jacket Material Polytetrafluoroethylene | ||
Standards/Approvals RoHS | ||
Sub Type Hookup Wire | ||
Fire Behaviour Flame Retardant | ||
Series E1619 | ||
- COO (Country of Origin):
- DE
The wire comprises silver-plated copper strands for flexibility and conductivity, encased in extruded PTFE insulation, ensuring robust thermal and chemical resistance. Designed for demanding environments, it is suitable for use with oils, fuels, acids, and bases. Commonly employed in industries like automotive, aerospace, and chemical processing, its durability and performance in harsh conditions make it a reliable choice for various applications.
Temperature rating -65 to 200 °C
Flame retardant
