Habia E 2419 Series Blue 0.24 mm² Hook Up Wire, 24 AWG, 100 m, Polytetrafluoroethylene, E 2419 BLUE
- RS Stock No.:
- 284-4362
- Distrelec Article No.:
- 300-93-894
- Mfr. Part No.:
- E 2419 BLUE
- Brand:
- Habia
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 284-4362
- Distrelec Article No.:
- 300-93-894
- Mfr. Part No.:
- E 2419 BLUE
- Brand:
- Habia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Habia | |
| Cross Sectional Area | 0.24 mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Blue | |
| American Wire Gauge | 24AWG | |
| Cable Length | 100m | |
| Voltage | 3400V | |
| Maximum Operating Temperature | 200°C | |
| Conductor Material | Silver Plated Copper | |
| Standards/Approvals | RoHS | |
| Sub Type | Hookup Wire | |
| Minimum Operating Temperature | -65°C | |
| Jacket Material | Polytetrafluoroethylene | |
| Cable Type | Stranded | |
| Fire Behaviour | Flame Retardant | |
| Series | E 2419 | |
| Select all | ||
|---|---|---|
Brand Habia | ||
Cross Sectional Area 0.24 mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Blue | ||
American Wire Gauge 24AWG | ||
Cable Length 100m | ||
Voltage 3400V | ||
Maximum Operating Temperature 200°C | ||
Conductor Material Silver Plated Copper | ||
Standards/Approvals RoHS | ||
Sub Type Hookup Wire | ||
Minimum Operating Temperature -65°C | ||
Jacket Material Polytetrafluoroethylene | ||
Cable Type Stranded | ||
Fire Behaviour Flame Retardant | ||
Series E 2419 | ||
- COO (Country of Origin):
- DE

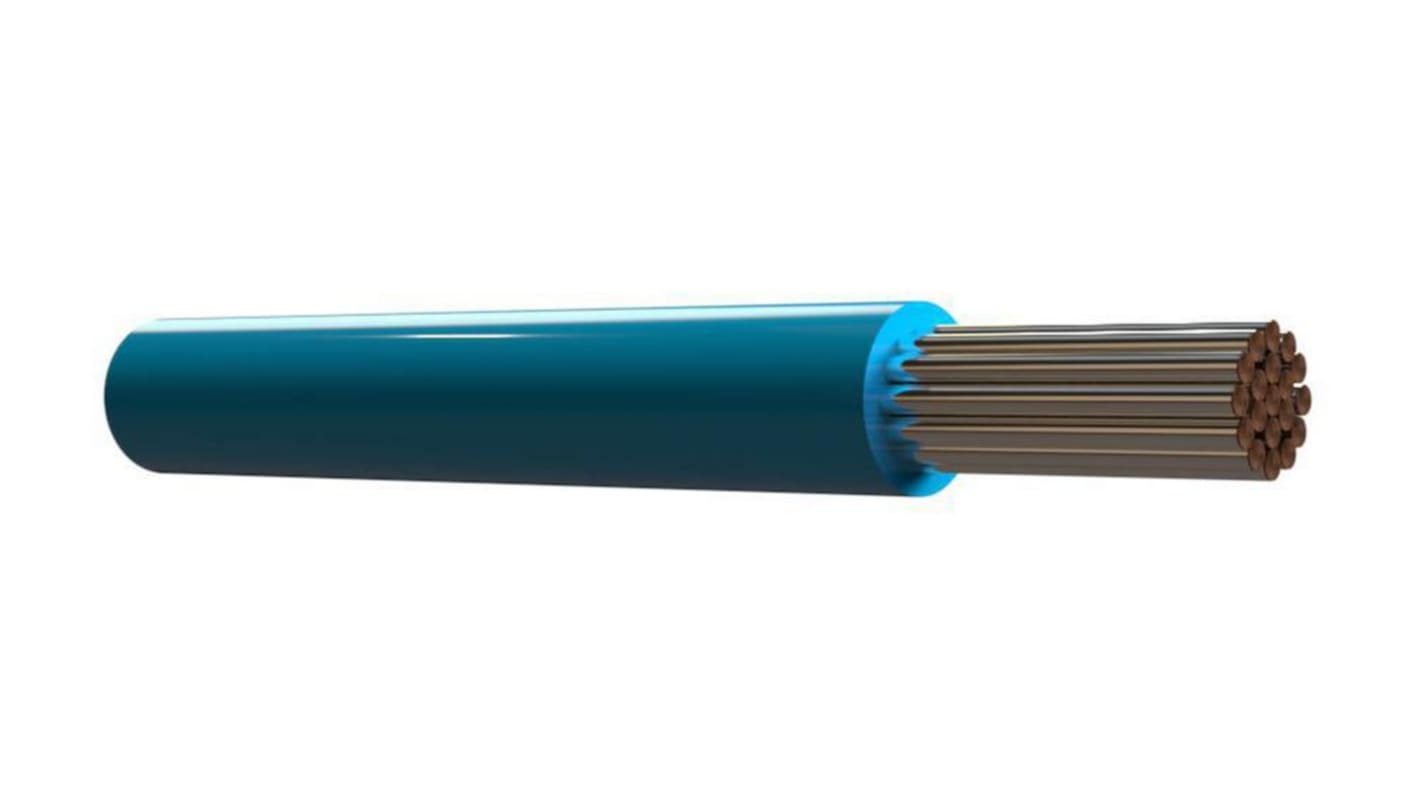

The wire comprises silver-plated copper strands for flexibility and conductivity, encased in extruded PTFE insulation, ensuring robust thermal and chemical resistance. Designed for demanding environments, it is suitable for use with oils, fuels, acids, and bases. Commonly employed in industries like automotive, aerospace, and chemical processing, its durability and performance in harsh conditions make it a reliable choice for various applications.
Temperature rating -65 to 200 °C
Flame retardant
