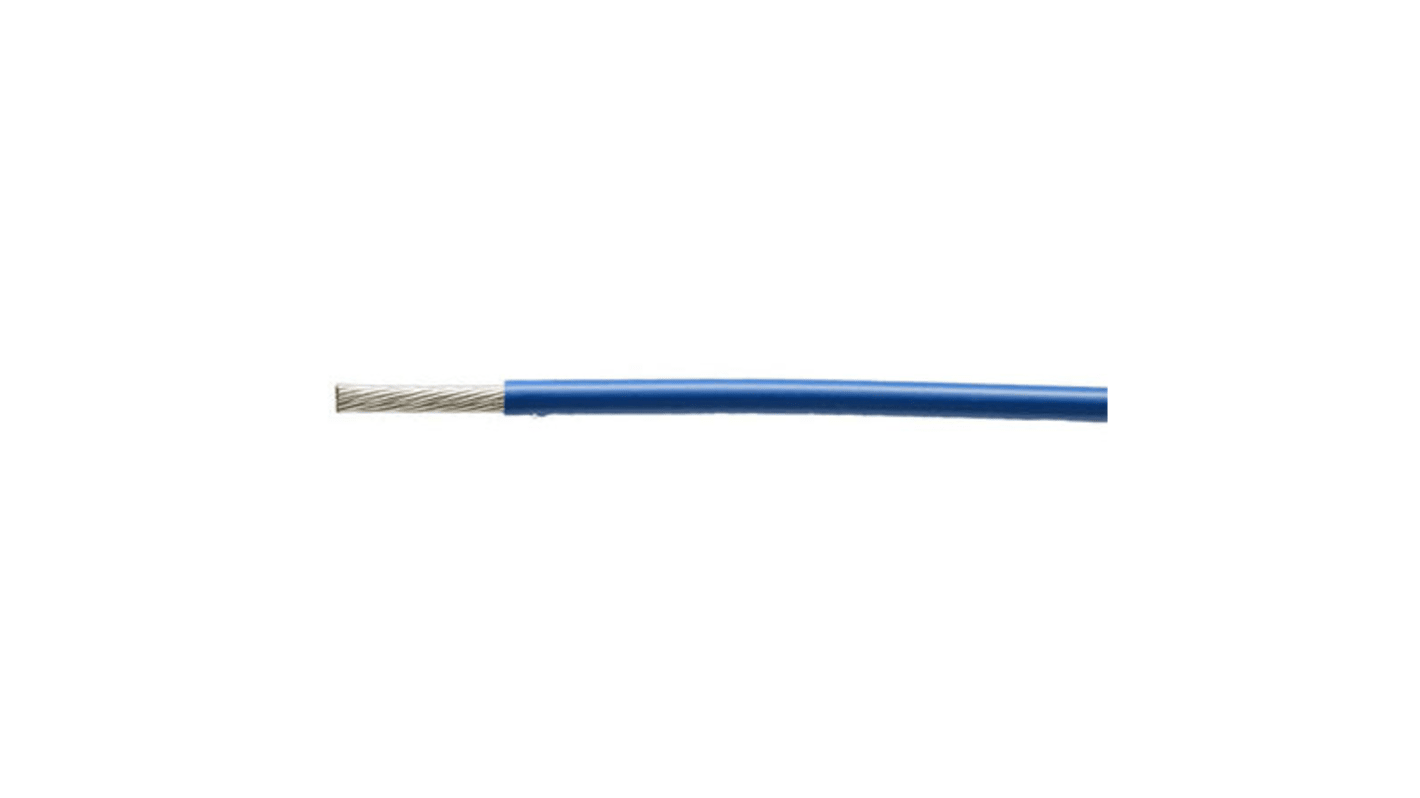

TE Connectivity 100G Series Blue 1 mm² Hook Up Wire, 17 AWG, 19/0.25 mm, 100m, LSZH Insulation, 100G0111-1.00-6
- RS Stock No.:
- 244-1403
- Mfr. Part No.:
- 100G0111-1.00-6
- Brand:
- TE Connectivity
Subtotal (1 reel of 100 metres)*
£193.04
(exc. VAT)
£231.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 58 unit(s) ready to ship
- Plus 5 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £193.04 | £1.93 |
*price indicative
- RS Stock No.:
- 244-1403
- Mfr. Part No.:
- 100G0111-1.00-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Cross Sectional Area | 1 mm² | |
| Sheath Colour | Blue | |
| Cable Shape | Single Core | |
| American Wire Gauge | 17 AWG | |
| Core Strands | 19/0.25 mm | |
| Length | 100m | |
| Insulation Material | LSZH | |
| Outer Diameter | 1.75mm | |
| Voltage Rating | 750 V | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55°C | |
| Conductor Material | Tinned Copper | |
| Standards Met | DIN-5510-2 Table 6 and Annex C Table C3 | |
| Fire Behaviour | Flame Retardant, Low Smoke Density, Low Smoke Halogen Free (LSZH), Self-extinguishing | |
| Series | 100G | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 19 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Cross Sectional Area 1 mm² | ||
Sheath Colour Blue | ||
Cable Shape Single Core | ||
American Wire Gauge 17 AWG | ||
Core Strands 19/0.25 mm | ||
Length 100m | ||
Insulation Material LSZH | ||
Outer Diameter 1.75mm | ||
Voltage Rating 750 V | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Conductor Material Tinned Copper | ||
Standards Met DIN-5510-2 Table 6 and Annex C Table C3 | ||
Fire Behaviour Flame Retardant, Low Smoke Density, Low Smoke Halogen Free (LSZH), Self-extinguishing | ||
Series 100G | ||
Size of Strands 0.25 mm | ||
Number of Strands 19 | ||
- COO (Country of Origin):
- GB
Zerohal Type 100G
100G wire features a dual wall insulation layer manufactured from a TE formulated blend of polymers over tin plated copper conductors. It is designed to meet the requirements of VG95218-20 Type-E while still being lightweight, flexible and resistant to recoil when used for harnessing.
Features & Benefits
• Halogen free, low smoke generation
• Highly flame retardant
• Flexible, easy to install
• Small size, lightweight
• Good fluid resistance
• Non-wrinkling insulation
• Lack of Recoil
• Halogen free, low smoke generation
• Highly flame retardant
• Flexible, easy to install
• Small size, lightweight
• Good fluid resistance
• Non-wrinkling insulation
• Lack of Recoil
Standards
VG 95218-20, Type E (Electrical cables and insulated wires for low frequency - Part 20: single core insulated wires).
Standards
VG-95218 Part 20 Type E; VG 95218-20; Type E (Electrical Cables and Insulated Wires for Low Frequency - Part 20 : Single-Core Insulated Wire)
