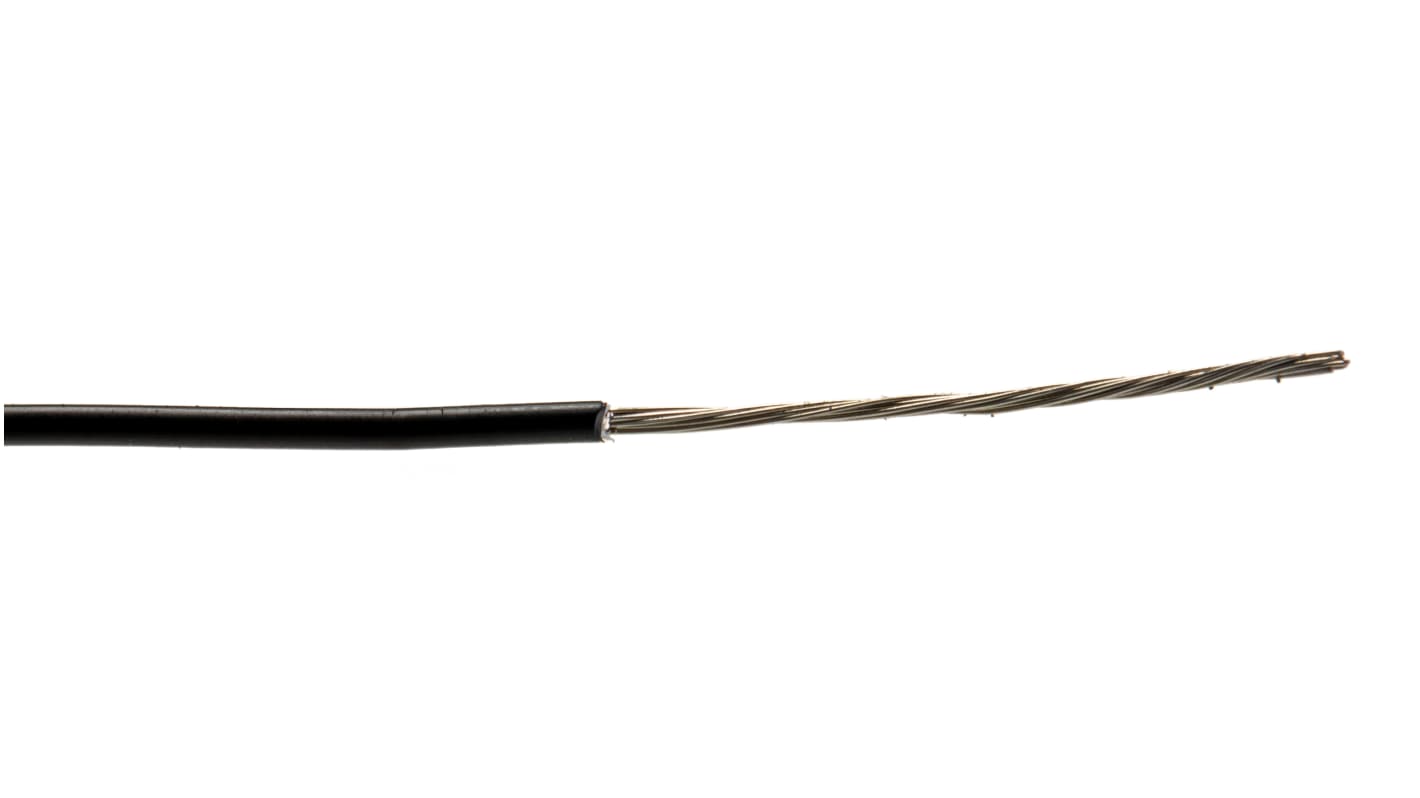

TE Connectivity Black 0.75 mm² Harsh Environment Wire, 0.23 mm, 100m, Polymer Insulation, 100G0111-0.75-0
- RS Stock No.:
- 244-1267
- Distrelec Article No.:
- 304-23-819
- Mfr. Part No.:
- 100G0111-0.75-0
- Brand:
- TE Connectivity
Subtotal (1 reel of 100 metres)*
£123.51
(exc. VAT)
£148.21
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 41 unit(s) shipping from 07 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £123.51 | £1.235 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£107.48
(exc. VAT)
£128.98
(inc. VAT)
- RS Stock No.:
- 244-1267
- Distrelec Article No.:
- 304-23-819
- Mfr. Part No.:
- 100G0111-0.75-0
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Cross Sectional Area | 0.75 mm² | |
| Sheath Colour | Black | |
| Cable Shape | Single Core | |
| Core Strands | 0.23 mm | |
| Length | 100m | |
| Insulation Material | Polymer | |
| Voltage Rating | 1.3 kV ac, 750 V ac | |
| Outer Diameter | 1.6mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
| Conductor Material | Tinned Copper | |
| Fire Behaviour | Flame Retardant, Low Smoke Density, Low Smoke Halogen Free (LSZH), Self-extinguishing | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.2mm | |
| Resistant To | Flame, Fluids | |
| Number of Strands | 19 | |
| Size of Strands | 0.23 mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Cross Sectional Area 0.75 mm² | ||
Sheath Colour Black | ||
Cable Shape Single Core | ||
Core Strands 0.23 mm | ||
Length 100m | ||
Insulation Material Polymer | ||
Voltage Rating 1.3 kV ac, 750 V ac | ||
Outer Diameter 1.6mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Conductor Material Tinned Copper | ||
Fire Behaviour Flame Retardant, Low Smoke Density, Low Smoke Halogen Free (LSZH), Self-extinguishing | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.2mm | ||
Resistant To Flame, Fluids | ||
Number of Strands 19 | ||
Size of Strands 0.23 mm | ||
