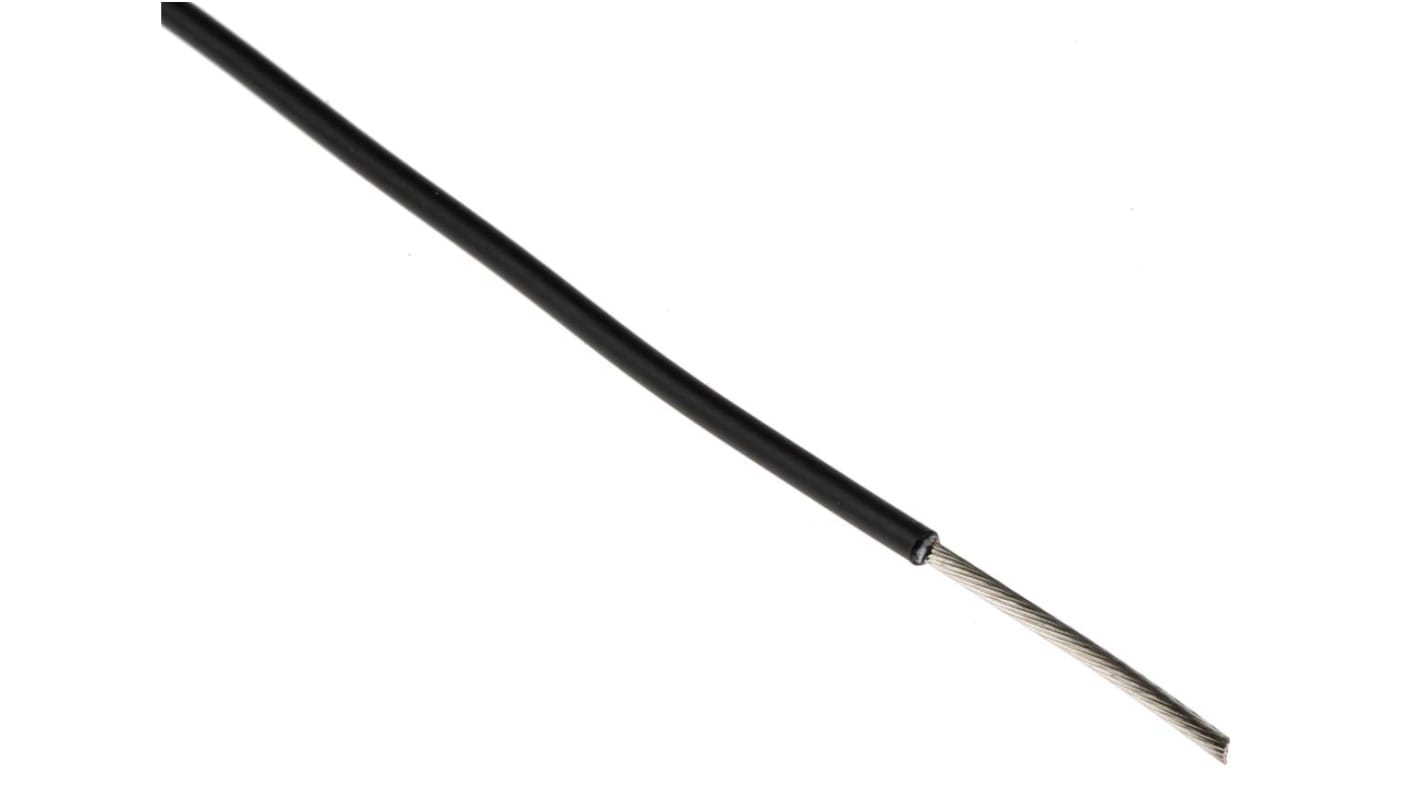

TE Connectivity Black 0.5 mm² Harsh Environment Wire, 0.18 mm, 100m, Polymer Insulation
- RS Stock No.:
- 244-1251
- Mfr. Part No.:
- 100G0111-0.50-0
- Brand:
- TE Connectivity
87 In stock - FREE next working day delivery available
Added
Price 1 Reel of 100 Metre(s)
£65.91
(exc. VAT)
£79.09
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 14 | £65.91 | £0.659 |
| 15 - 49 | £63.99 | £0.64 |
| 50 + | £62.16 | £0.622 |
| *price indicative | ||
- RS Stock No.:
- 244-1251
- Mfr. Part No.:
- 100G0111-0.50-0
- Brand:
- TE Connectivity
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Zerohal Type 100G
100G wire features a dual wall insulation layer manufactured from a TE formulated blend of polymers over tin plated copper conductors. It is designed to meet the requirements of VG95218-20 Type-E while still being lightweight, flexible and resistant to recoil when used for harnessing.
Features & Benefits
• Halogen free, low smoke generation
• Highly flame retardant
• Flexible, easy to install
• Small size, lightweight
• Good fluid resistance
• Non-wrinkling insulation
• Lack of Recoil
• Halogen free, low smoke generation
• Highly flame retardant
• Flexible, easy to install
• Small size, lightweight
• Good fluid resistance
• Non-wrinkling insulation
• Lack of Recoil
Standards
VG 95218-20, Type E (Electrical cables and insulated wires for low frequency - Part 20: single core insulated wires).
Standards
VG-95218 Part 20 Type E; VG 95218-20; Type E (Electrical Cables and Insulated Wires for Low Frequency - Part 20 : Single-Core Insulated Wire)
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 0.5 mm² |
| Sheath Colour | Black |
| Cable Shape | Single Core |
| Core Strands | 0.18 mm |
| Length | 100m |
| Insulation Material | Polymer |
| Voltage Rating | 1.3 kV ac, 750 V ac |
| Outer Diameter | 1.4mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Conductor Material | Tinned Copper |
| Fire Behaviour | Flame Retardant, Low Smoke Density, Low Smoke Halogen Free (LSZH), Self-extinguishing |
| Shield Type | Unshielded |
| Insulation Wall Thickness | 0.2mm |
| Size of Strands | 0.18 mm |
| Resistant To | Flame, Fluids |
| Number of Strands | 19 |
- RS Stock No.:
- 244-1251
- Mfr. Part No.:
- 100G0111-0.50-0
- Brand:
- TE Connectivity
