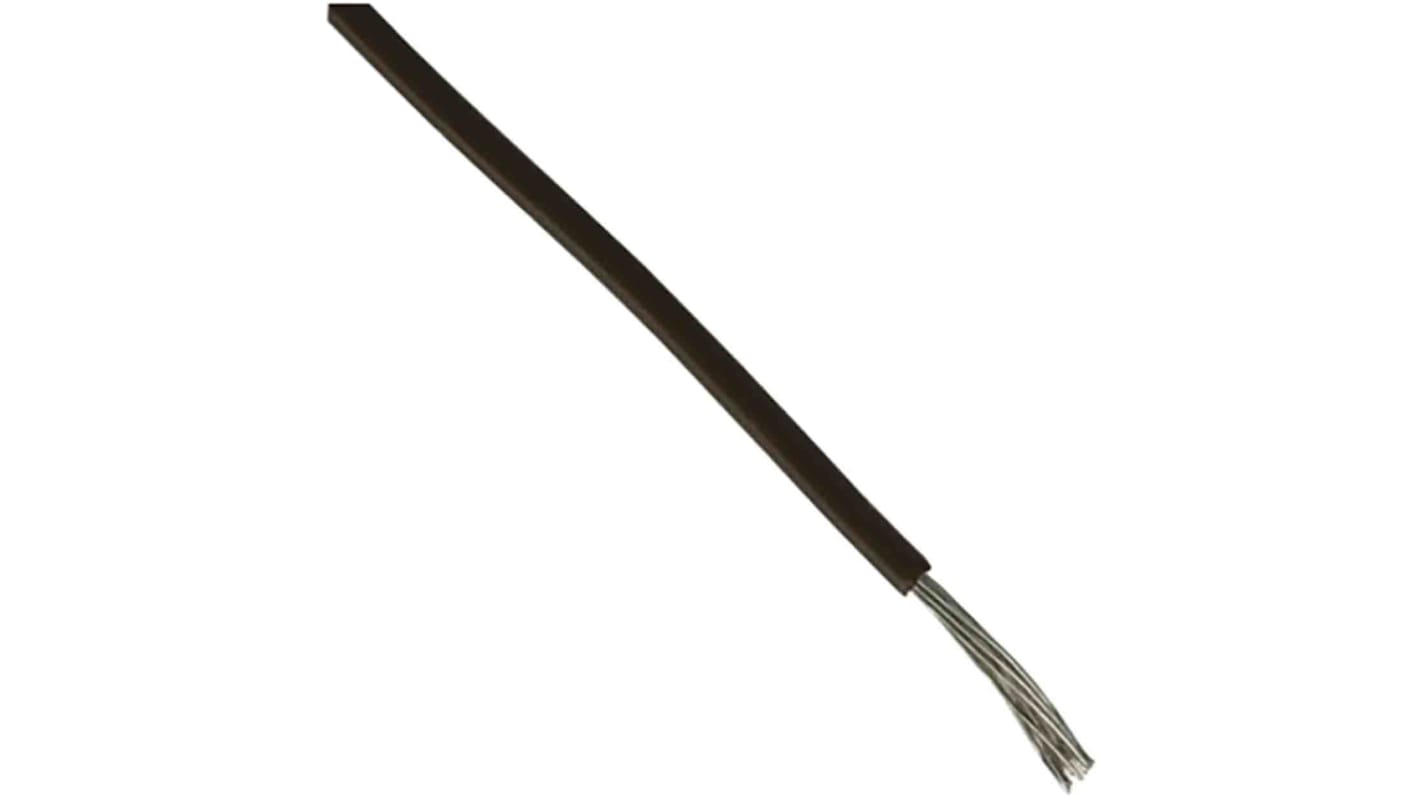

RS PRO 11028 Series Black 5.2 mm² Hook Up Wire, 20 AWG, 10, 30.5 m, Modified Polyphenylene Ether

RS Stock No.:: 208-1088
Distrelec Article No.:: 304-05-461
Brand:: RS PRO

RS PRO 11028 Series Black 5.2 mm² Hook Up Wire, 20 AWG, 10, 30.5 m, Modified Polyphenylene Ether

Subtotal (1 reel of 30 metres)*

£15.08

(exc. VAT)

£18.10

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

88 unit(s) ready to ship
Plus 5 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£15.08	£0.503

*price indicative

RS PRO Cable Ties

From electrical to industrial applications, RS Pro offers a wide selection of cable ties to suit every need. Durable, reliable, and available in multiple sizes and materials, trusted by professionals across industries.

Shop here

RS Stock No.:: 208-1088
Distrelec Article No.:: 304-05-461
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Hook Up Wire
	Cross Sectional Area	5.2 mm²
	Jacket Colour	Black
	American Wire Gauge	20AWG
	Core Strands	10
	Cable Length	30.5m
	Outside Diameter	1.4 mm
	Voltage	600 V
	Maximum Operating Temperature	105°C
	Conductor Material	Tinned Copper
	Standards/Approvals	No
	Cable Type	Single Core
	Jacket Material	Modified Polyphenylene Ether
	Minimum Operating Temperature	-40°C
	Fire Behaviour	Flammability Test: VW-1
	Series	11028

	Select all
	Brand RS PRO
	Product Type Hook Up Wire
	Cross Sectional Area 5.2 mm²
	Jacket Colour Black
	American Wire Gauge 20AWG
	Core Strands 10
	Cable Length 30.5m
	Outside Diameter 1.4 mm
	Voltage 600 V
	Maximum Operating Temperature 105°C
	Conductor Material Tinned Copper
	Standards/Approvals No
	Cable Type Single Core
	Jacket Material Modified Polyphenylene Ether
	Minimum Operating Temperature -40°C
	Fire Behaviour Flammability Test: VW-1
	Series 11028

COO (Country of Origin):: CN

RS PRO Single Core mPPE Hook-up Wire

RS PRO brings you a fantastic range of hook-up wire made from mPPE making it light and durable for all environments. This mPPE hook-up wire combines increased performance with a minimal environmental impact due to it being fully recyclable.

This hook-up wire is manufactured from a modified polyphenylene ether (mPPE) thermoplastic. This RS PRO range of wire can be easily recycled since it does not contain hazardous materials. The enhanced dielectric properties of this hook up wire make it possible to have a reduced wall thickness while still maintaining the same electrical properties as PVC.

Features and Benefits

Fully recyclable

Up to 45% smaller diameter than PVC

Up to 40% lighter than other insulation materials

Excellent dielectric strength

Flexible wire with mPPE insulation

Single-core wire

Excellent resistance to hazardous oils and chemicals

Stranded or solid tinned copper conductors

Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

Rated Voltage: 600V

Temperature Range: -40 to 105 °C

Applications

Hook up wire is a fantastic piece of equipment due to its versatility and ability to work well with connectors in electrical assemblies. It is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances.
