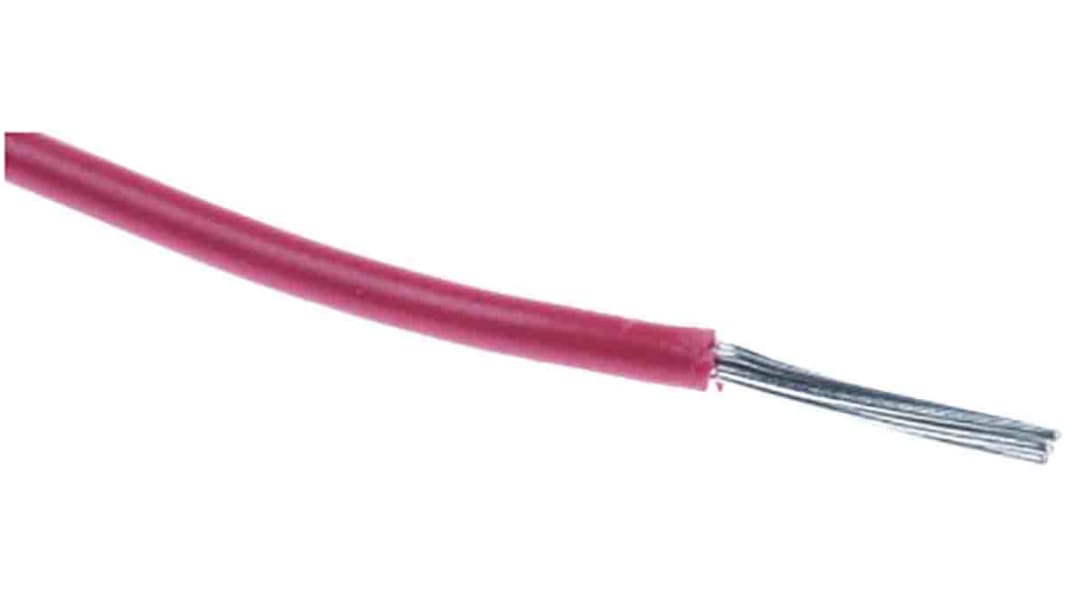

RS PRO Red 0.51 mm² Hook Up Wire, 20 AWG, 1C, 30.5m, MPPE Insulation
- RS Stock No.:
- 208-1094
- Brand:
- RS PRO
51 In stock - FREE next working day delivery available
12 available from Europe for delivery within 1 working day(s).
Price 1 Reel of 30 Metre(s)
£12.46
(exc. VAT)
£14.95
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | £12.46 | £0.415 |
| 5 - 9 | £11.84 | £0.395 |
| 10 + | £11.22 | £0.374 |
*price indicative
- RS Stock No.:
- 208-1094
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS PRO Single Core mPPE Hook-up Wire
RS PRO brings you a fantastic range of hook-up wire made from mPPE making it light and durable for all environments. This mPPE hook-up wire combines increased performance with a minimal environmental impact due to it being fully recyclable.
This hook-up wire is manufactured from a modified polyphenylene ether (mPPE) thermoplastic. This RS PRO range of wire can be easily recycled since it does not contain hazardous materials. The enhanced dielectric properties of this hook up wire make it possible to have a reduced wall thickness while still maintaining the same electrical properties as PVC.
This hook-up wire is manufactured from a modified polyphenylene ether (mPPE) thermoplastic. This RS PRO range of wire can be easily recycled since it does not contain hazardous materials. The enhanced dielectric properties of this hook up wire make it possible to have a reduced wall thickness while still maintaining the same electrical properties as PVC.
Features and Benefits
- Fully recyclable
- Up to 45% smaller diameter than PVC
- Up to 40% lighter than other insulation materials
- Excellent dielectric strength
- Flexible wire with mPPE insulation
- Single-core wire
- Excellent resistance to hazardous oils and chemicals
- Stranded or solid tinned copper conductors
- Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
- Rated Voltage: 600V
- Temperature Range: -40 to 105 °C
Applications
Hook up wire is a fantastic piece of equipment due to its versatility and ability to work well with connectors in electrical assemblies. It is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances.
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 0.51 mm² |
| Sheath Colour | Red |
| American Wire Gauge | 20 AWG |
| Core Strands | 1C |
| Length | 30.5m |
| Insulation Material | MPPE |
| Voltage Rating | 600 V |
| Series | 11028 |
