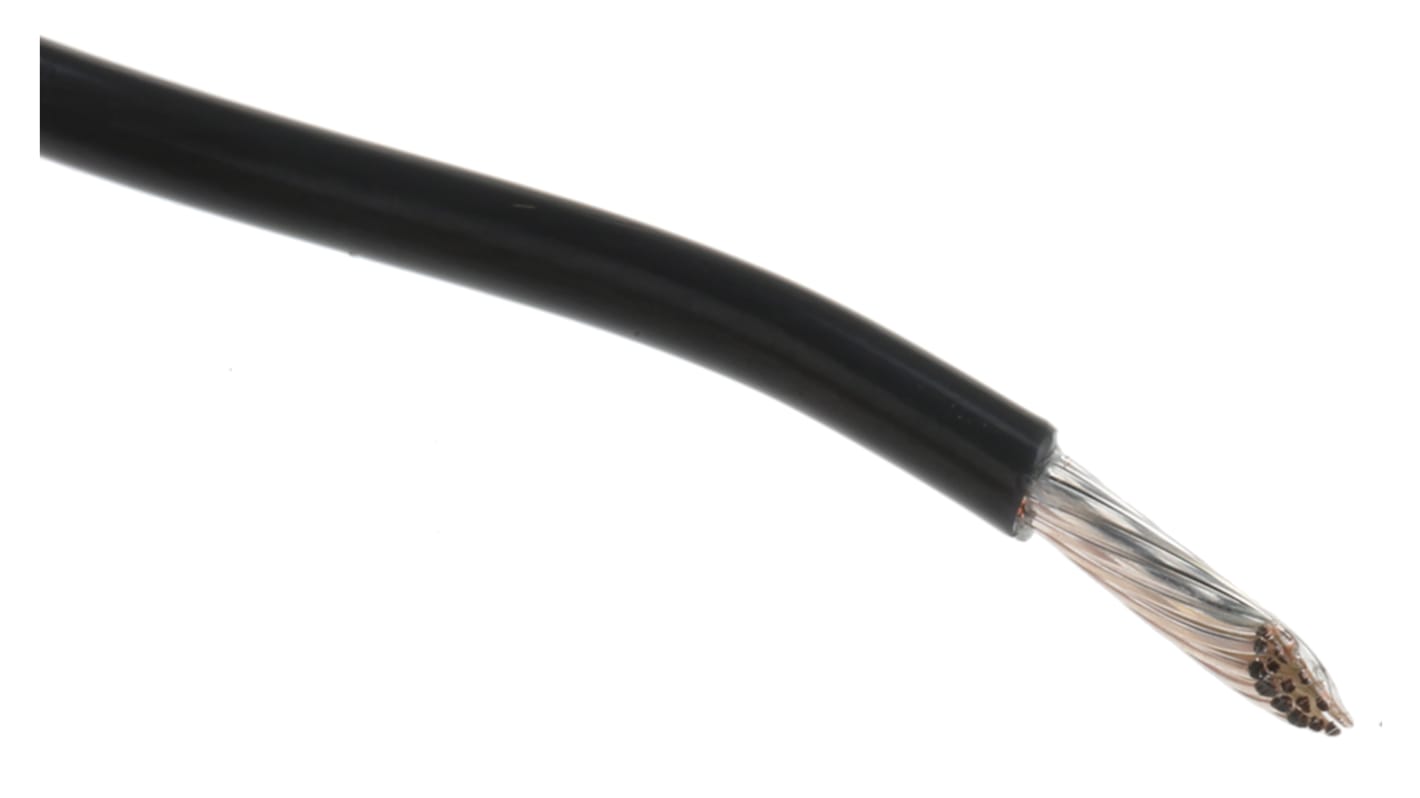

Alpha Wire Hook-up Wire TEFLON Series Black 0.96 mm² Hook Up Wire, 18 AWG, 19/0.25 mm, 30m, PTFE Insulation, 5857 BK005
- RS Stock No.:
- 177-1292
- Distrelec Article No.:
- 300-72-890
- Mfr. Part No.:
- 5857 BK005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£94.53
(exc. VAT)
£113.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 142 unit(s) shipping from 20 October 2025
- Plus 78 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £94.53 | £3.151 |
*price indicative
- RS Stock No.:
- 177-1292
- Distrelec Article No.:
- 300-72-890
- Mfr. Part No.:
- 5857 BK005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.96 mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 18 AWG | |
| Core Strands | 19/0.25 mm | |
| Length | 30m | |
| Insulation Material | PTFE | |
| Voltage Rating | 600 V | |
| Outer Diameter | 1.75mm | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +200°C | |
| Conductor Material | Silver Plated Copper | |
| Standards Met | MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1 | |
| Wire Style | UL1213 | |
| Series | Hook-up Wire TEFLON | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.3mm | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 19 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.96 mm² | ||
Sheath Colour Black | ||
American Wire Gauge 18 AWG | ||
Core Strands 19/0.25 mm | ||
Length 30m | ||
Insulation Material PTFE | ||
Voltage Rating 600 V | ||
Outer Diameter 1.75mm | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +200°C | ||
Conductor Material Silver Plated Copper | ||
Standards Met MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1 | ||
Wire Style UL1213 | ||
Series Hook-up Wire TEFLON | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.3mm | ||
Size of Strands 0.25 mm | ||
Number of Strands 19 | ||
Belden Alpha Wire Flexible Conductor Hook-Up Wire, 0.96mm² Cross-Sectional Area, 30m Length - Premium Series - 5857 BK005
Safely connect high-powered electrical equipment using this Belden hook-up wire from the Alpha Wire range. It's coated in 0.3mm-thick insulating Teflon material, which prevents overheating in extreme temperatures. The unshielded cable has an outer diameter of 1.75mm so it's very strong and resistant to impact. You can use it in a range of applications by cutting its 30m length to your desired size. Its 14.9lbs pull tension means you can stretch this wire when space is limited without breaking it.
Features & Benefits
• Operating temperature range of -60°C to +200°C for use in challenging industrial environments
• Highly conductive silver-plated copper conductor material for reliable performance
• Bend radius 10 times the cable diameter for flexible use
• Highly conductive silver-plated copper conductor material for reliable performance
• Bend radius 10 times the cable diameter for flexible use
Applications
• Robotics
• Machine prototypes
• Switch control
• Electrical plugs
• Machine prototypes
• Switch control
• Electrical plugs
How do I strip a hook-up wire?
You can use a wire stripper, which is a simple tool with several stripping holes that correspond to the wire gauge. Insert this 18 AWG (American Wire Gauge) wire into the correct hole then pull to strip off the insulation. You can also use this tool to easily cut the wire.
