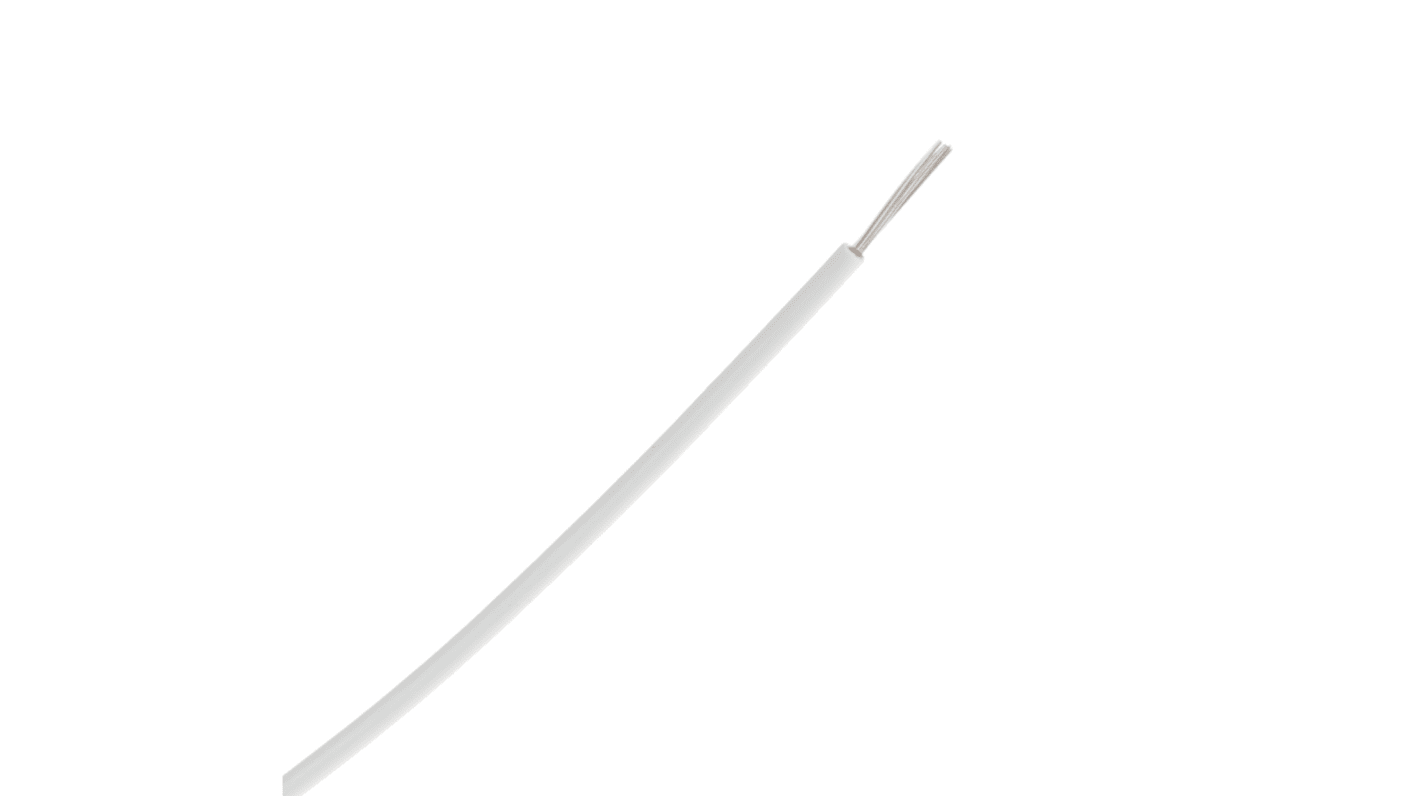

TE Connectivity M22759 Series White 0.5 mm² Hook Up Wire, 20 AWG, 19 / 32 AWG, 100m, ETFE Insulation, M22759/32-20-9
- RS Stock No.:
- 113-5784
- Mfr. Part No.:
- M22759/32-20-9
- Brand:
- TE Connectivity
Subtotal (1 reel of 100 metres)*
£85.09
(exc. VAT)
£102.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 22 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 05 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £85.09 | £0.851 |
*price indicative
- RS Stock No.:
- 113-5784
- Mfr. Part No.:
- M22759/32-20-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Cross Sectional Area | 0.5 mm² | |
| Sheath Colour | White | |
| American Wire Gauge | 20 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 19 / 32 AWG | |
| Length | 100m | |
| Insulation Material | ETFE | |
| Voltage Rating | 600 V ac | |
| Outer Diameter | 1.27mm | |
| Maximum Operating Temperature | +150°C | |
| Minimum Operating Temperature | -65°C | |
| Conductor Material | Copper | |
| Cable Type | Harsh Environment | |
| Wire Style | MIL-W-22759 | |
| Series | M22759 | |
| Size of Strands | 32 AWG | |
| Number of Strands | 19 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Cross Sectional Area 0.5 mm² | ||
Sheath Colour White | ||
American Wire Gauge 20 AWG | ||
Cable Shape Single Core | ||
Core Strands 19 / 32 AWG | ||
Length 100m | ||
Insulation Material ETFE | ||
Voltage Rating 600 V ac | ||
Outer Diameter 1.27mm | ||
Maximum Operating Temperature +150°C | ||
Minimum Operating Temperature -65°C | ||
Conductor Material Copper | ||
Cable Type Harsh Environment | ||
Wire Style MIL-W-22759 | ||
Series M22759 | ||
Size of Strands 32 AWG | ||
Number of Strands 19 | ||
- COO (Country of Origin):
- MX
TE Connectivity M22759 Harsh Environment Wire
The M22759 wire is ideal for use with a wide range of commercial and military aerospace or ground system applications. Its particular role can make this wire perfect for harsh environments. The airframe version has a dual layer insulation.
Features and Benefts
• Small diameter
• Low smoke and corrosive gas generation
• Chemiscal resistant and electrical arc tracking
• Cross linked insulation
• Tough physical characteristics
• High temperature ratings up to +150°C
• Stranded tin plated copper conductor
• Crosslinked ETFE insulation
• Low smoke and corrosive gas generation
• Chemiscal resistant and electrical arc tracking
• Cross linked insulation
• Tough physical characteristics
• High temperature ratings up to +150°C
• Stranded tin plated copper conductor
• Crosslinked ETFE insulation
