Schneider Electric USB Switch For Use With HMI HMIGTO, HMIGTW, HMIGXO, HMISCU, XBTGC, XBTGK, XBTGT
- RS Stock No.:
- 912-0314
- Mfr. Part No.:
- HMIZRA1
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£318.37
(exc. VAT)
£382.04
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £318.37 |
*price indicative
- RS Stock No.:
- 912-0314
- Mfr. Part No.:
- HMIZRA1
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Accessory Type | USB Switch | |
For Use With HMI | HMIGTO, HMIGTW, HMIGXO, HMISCU, XBTGC, XBTGK, XBTGT | |
Special Features | Switch is Illuminated | |
Supply Voltage | 5 V | |
Interface | USB | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Accessory Type USB Switch | ||
For Use With HMI HMIGTO, HMIGTW, HMIGXO, HMISCU, XBTGC, XBTGK, XBTGT | ||
Special Features Switch is Illuminated | ||
Supply Voltage 5 V | ||
Interface USB | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

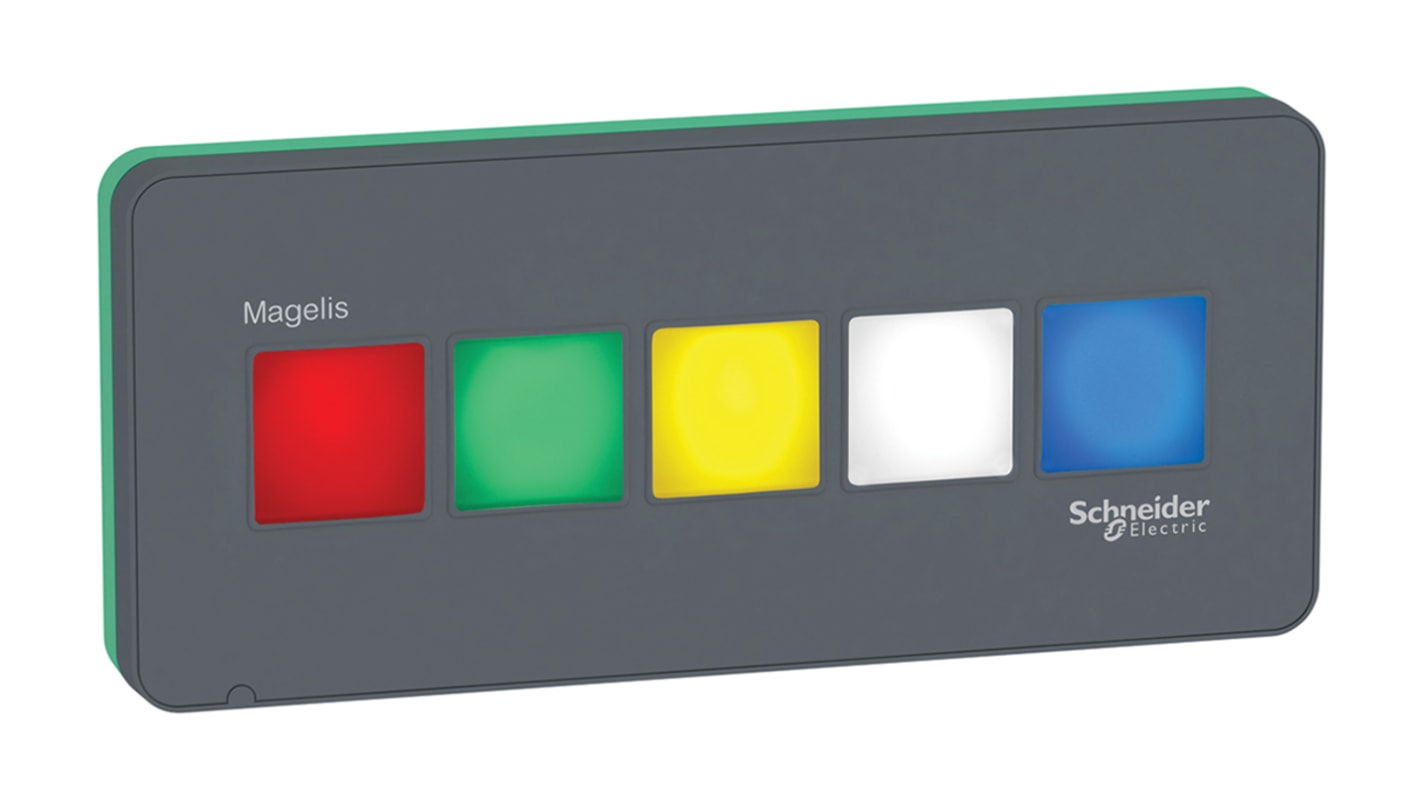

Illuminated USB Switch for Magelis HMI
The illuminated USB switch is uniquely designed for easy visualization and quick acknowledgement of alarm (wide view angle and brightness).
This switch with click sensation is also used as a function key in HMI applications where the touch panel involves repetitive and reliable operations in dirty environments. This keeps the touch panel clean and protected by avoiding continuous finger contact.
The illuminated USB switch can be easily wired, powered by the USB cable and integrated with the Magelis HMI. This range is ideal for use in industrial applications like machine tool, packaging, printing, automotive, metal processing, food and beverage, and paper.
This switch with click sensation is also used as a function key in HMI applications where the touch panel involves repetitive and reliable operations in dirty environments. This keeps the touch panel clean and protected by avoiding continuous finger contact.
The illuminated USB switch can be easily wired, powered by the USB cable and integrated with the Magelis HMI. This range is ideal for use in industrial applications like machine tool, packaging, printing, automotive, metal processing, food and beverage, and paper.
Five illuminated function keys
Alarm display and acknowledgement via 5 multi-colour LEDs
Configuration with Vijeo Designer Software
Connection by USB cable
Mounting in a standard 22 mm diameter hole
IP65 protection
Following parts are available:
Illuminated USB Switch - stock no. 912-0314
Accessories Kit - stock no. 912-0308
- Includes 5 installation nuts, 5 antirotation tees and 5 USB clamps type B
Insert Label Sheets - stock no. 912-0311
- 3 sheets with customisable labels per sheet)
Gaskets - stock no. 912-0318
- 5 gaskets in the package
Schneider Electric HMIZRA1
This illuminated USB switch accessory is connected via a USB cable and compatible with Harmony HMI range terminals. HMIZRA1 with click sensation is used as function keys with an HMI terminal where repetitive and reliable operations in dirty environments are required, while keeping the touch panel clean and protected. It is IP65 protected and has 5 switches with backlit LED. With Vijeo Desigher, the switches can be set to alarm display and acknowledgement mode or illuminated function keys mode. It is designed with wide view angle and brightness for easy visualization and quick acknowledgement of alarm. It offers water-resistance and can operate in harsh environments. The users can select and adjust the colors of the switch. It weighs 0.110Kg. It iis ideal for use in industrial applications like machine tool, packaging, printing, automotive, metal processing, food and beverage, and paper. It is compatible with Harmony Panel PC and Box PC, XBTGT, XBTGC, HMIGTO, HMIGXO, and HMISCU terminals. It is an Ideal complement to Harmony HMI series for direct access to functions without the need to touch the screen.
