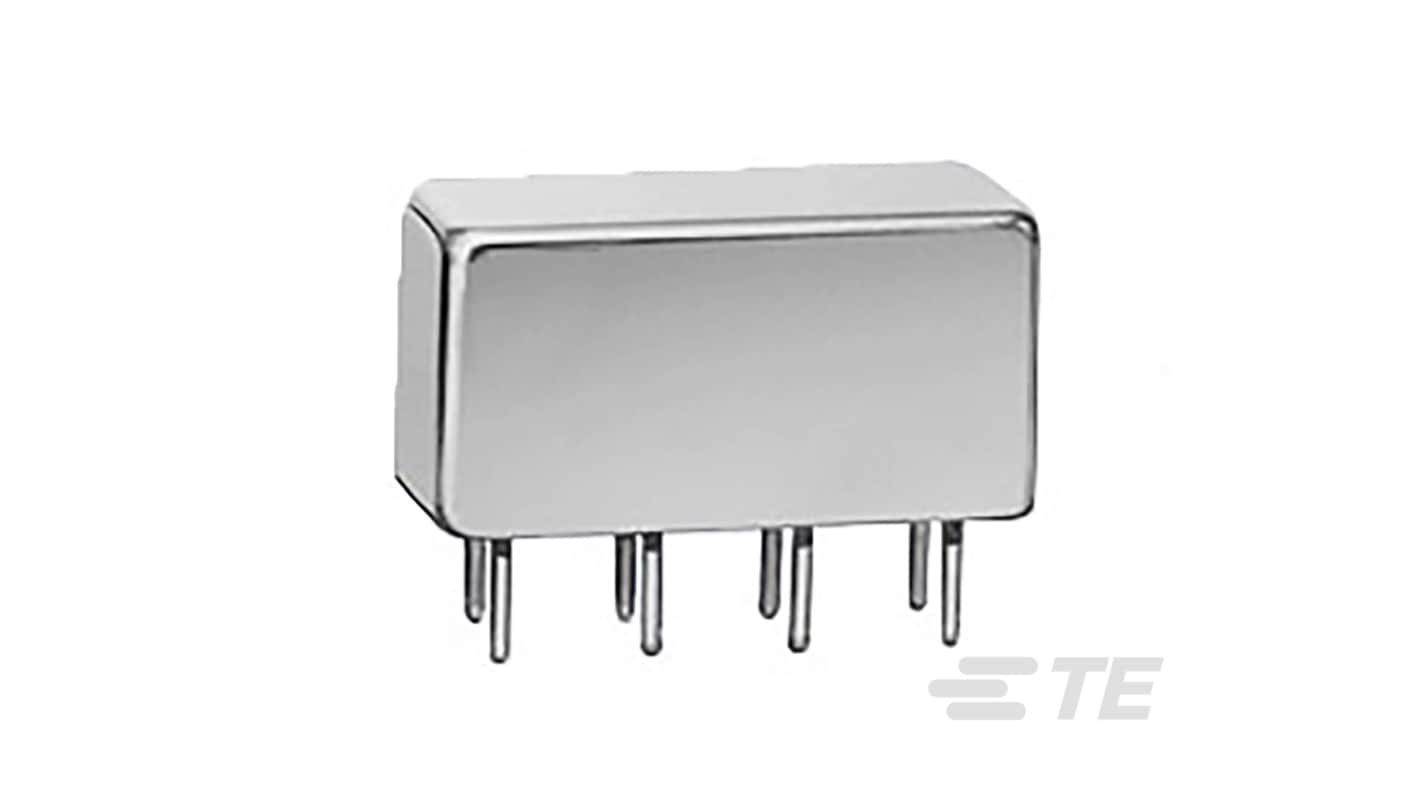

TE Connectivity Board High Frequency RF Relay, 26.5V dc, 32 V dc Coil, DPDT-CO
- RS Stock No.:
- 501-192
- Mfr. Part No.:
- 1617030-9
- Brand:
- TE Connectivity
Subtotal (1 pack of 2 units)*
£346.24
(exc. VAT)
£415.49
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £346.24 | £173.12 |
*price indicative
- RS Stock No.:
- 501-192
- Mfr. Part No.:
- 1617030-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | High Frequency RF Relay | |
| Coil Resistance | 1250Ω | |
| Contact Configuration | DPDT-CO | |
| Terminal Type | Solder Pin | |
| Mount Type | Board | |
| Contact Current | 2A | |
| Minimum Operating Temperature | 65°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Coil Power | 0.684W | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type High Frequency RF Relay | ||
Coil Resistance 1250Ω | ||
Contact Configuration DPDT-CO | ||
Terminal Type Solder Pin | ||
Mount Type Board | ||
Contact Current 2A | ||
Minimum Operating Temperature 65°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Coil Power 0.684W | ||
Non Compliant
- COO (Country of Origin):
- US
The TE Connectivity general-purpose signal relay is engineered to deliver reliable performance in various DC applications. Designed with a non-polarized, monostable coil, it ensures efficient operation under a wide range of voltages. With a robust 2 Form C DPDT-CO contact arrangement, this relay is ideal for both basic and complex circuit configurations. Its durable hermetically sealed enclosure protects against environmental factors, allowing it to function optimally even in harsh operating conditions. This relay not only meets high standards of electrical performance but also offers impressive vibration and shock resistance, making it suitable for demanding applications. Tailor-made for those requiring both flexibility and dependability, this relay stands out in the realm of electromechanical components.
Designed for general-purpose applications in DC environments
Non-polarized coil enhances installation simplicity
Durable hermetically sealed body ensures protection from contamination
Supports high reliability with excellent vibration resistance
Shock resistance capabilities allow for use in dynamic environments
Maximises circuit performance with a dependable contact arrangement
