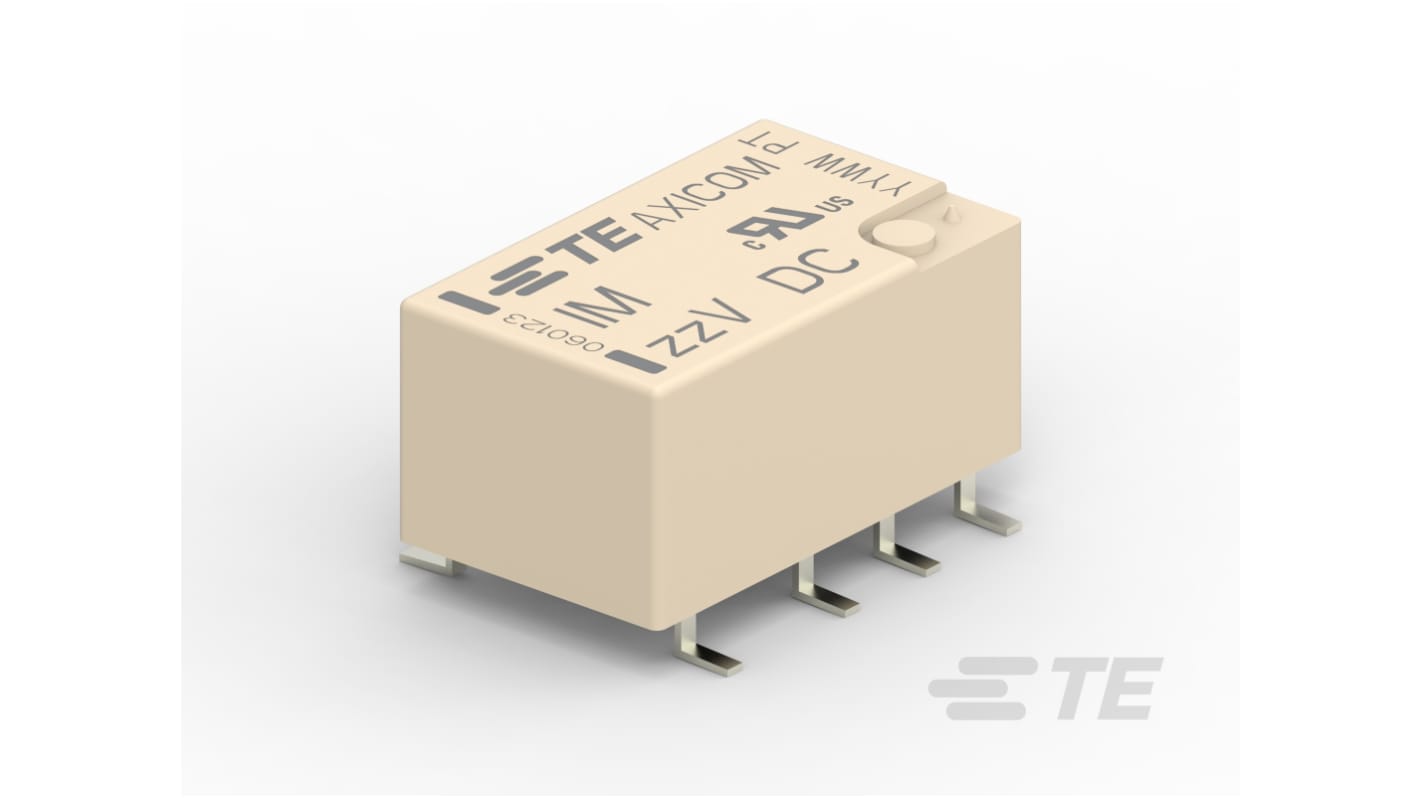

TE Connectivity Surface RF Relay, 3 V Coil, DPDT
- RS Stock No.:
- 472-358
- Distrelec Article No.:
- 304-64-472
- Mfr. Part No.:
- 1462038-4
- Brand:
- TE Connectivity
Subtotal (1 reel of 1000 units)*
£1,982.17
(exc. VAT)
£2,378.60
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,982.17 | £1.982 |
*price indicative
- RS Stock No.:
- 472-358
- Distrelec Article No.:
- 304-64-472
- Mfr. Part No.:
- 1462038-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | RF Relay | |
| Coil Resistance | 64Ω | |
| Insertion Loss | -0.03dB | |
| Contact Configuration | DPDT | |
| Terminal Type | Surface Mount | |
| Mount Type | Surface | |
| Contact Current | 2A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | Axicom IM | |
| Height | 5.65mm | |
| Length | 10mm | |
| Standards/Approvals | 2016 No Restricted Materials Above Threshold, China RoHS 2 Directive MIIT Order No 32, EU RoHS Directive 2011/65/EU Compliant, EU REACH Regulation (EC) No. 1907/2006, EU ELV Directive 2000/53/EC Compliant | |
| Coil Power | 0.14W | |
| Contact Material | Ruthenium, Palladium | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type RF Relay | ||
Coil Resistance 64Ω | ||
Insertion Loss -0.03dB | ||
Contact Configuration DPDT | ||
Terminal Type Surface Mount | ||
Mount Type Surface | ||
Contact Current 2A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series Axicom IM | ||
Height 5.65mm | ||
Length 10mm | ||
Standards/Approvals 2016 No Restricted Materials Above Threshold, China RoHS 2 Directive MIIT Order No 32, EU RoHS Directive 2011/65/EU Compliant, EU REACH Regulation (EC) No. 1907/2006, EU ELV Directive 2000/53/EC Compliant | ||
Coil Power 0.14W | ||
Contact Material Ruthenium, Palladium | ||
The TE Connectivity general purpose signal relay offers reliable performance in various applications where precise control is essential. Designed with a polarized, monostable coil magnetic system, this product ensures optimal functionality across multiple DC current scenarios. Its compact dimensions make it suitable for board mounting, while the advanced bifurcated/twin contact arrangement enhances switching reliability. Operating efficiently within a broad temperature range, this relay is particularly ideal for demanding environments, providing users with a versatile solution that guarantees durability and effectiveness. The hermetically sealed enclosure further adds to its resilience, ensuring consistent operations even in adverse conditions.
Features a polarised, monostable design for stability in operations
Offers a dual form C DPDT-CO configuration for versatile applications
Designed to maintain robust performance in temperature extremes
Includes high dielectric insulation for enhanced safety and performance
Utilises gold-plated contacts for superior conductivity and reduced wear
Manufactured to be compatible with PCB SMT, simplifying integration
Supports reflow soldering techniques for efficient assembly
Packaged in reels for convenient handling and storage
Meets stringent compliance standards for environmental safety
