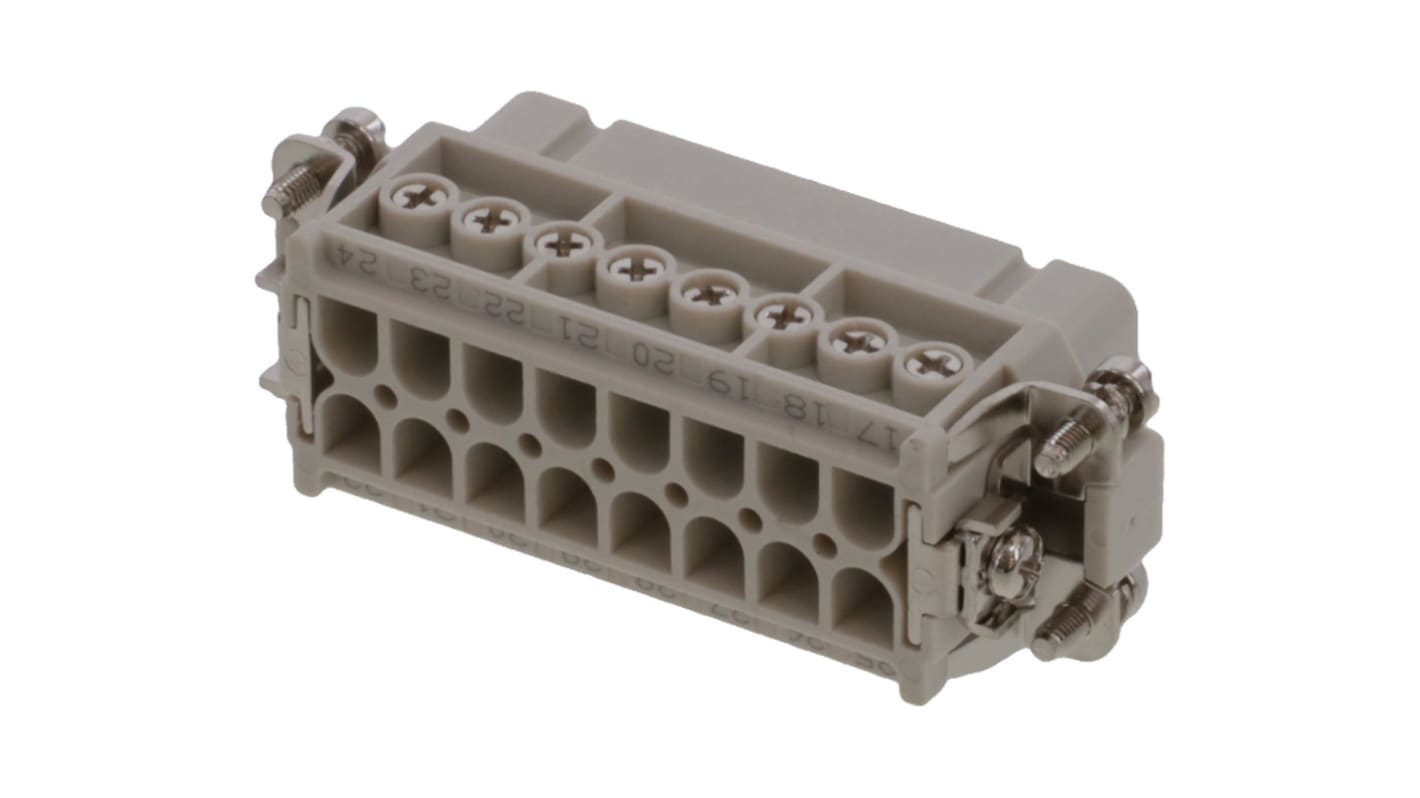

Molex Heavy Duty Power Connector Module, 16A, Female, 93601 Series, 16 Contacts

View this category
Bulk discount available

Subtotal (1 unit)*

£18.05

(exc. VAT)

£21.66

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 19 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£18.05
10 - 99£17.45
100 - 249£16.75
250 - 499£16.03
500 +£15.14

*price indicative

RS Stock No.:
250-1916
Mfr. Part No.:
936010145
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Current Rating

16A

Gender

Female

Series

93601

Type

Screw Terminal Insert

Termination Method

Screw

For Use With

Electronic Machinery

Pole Format

16P

Number of Rows

2

Voltage Rating

250 V

Number of Contacts

16

Body Orientation

Straight

Contact Material

Copper Alloy

Series Number

93601

Contact Plating

Silver

COO (Country of Origin):
CN

Molex 93601 Series Heavy Duty Power Connector Module, 16A Current Rating, 250V Voltage Rating - 936010145


This Heavy Duty Power Connector Module falls under the category of industrial connectors and boasts robust capabilities for electronic machinery. With a female configuration and 16-pole arrangement, this reliable component ensures a steady electrical connection at a maximum current rating of 16A and a voltage rating of 250V. Designed for use in challenging environments, it features a straightforward screw terminal insert for secure wiring.

Features & Benefits


• Offers a current rating of 16A for high-load usage
• Features silver-plated contacts for enhanced conductivity
• Constructed from durable copper alloy for long-term reliability
• Designed with a straight body orientation for convenient installation

Applications


• Effective in electronic machinery for power distribution
• Utilised in heavy-duty electrical systems requiring robust connections
• Ideal for use in automation and mechanical fields
• Compatible with size 16A housing and hoods for added protection

What is the maximum wire size compatible with this connector?


The connector accommodates wire sizes ranging from 0.5mm² to 2.5mm², making it versatile for various applications in electrical engineering.

What features ensure this connector can operate in extreme conditions?


It is capable of functioning within a wide temperature range of -40°C to +125°C, ensuring reliability in harsh environments and challenging conditions.

What is the expected durability in terms of mating cycles?


The connector is tested for up to 500 mating cycles, demonstrating its durability and functionality over prolonged use in industrial settings.
