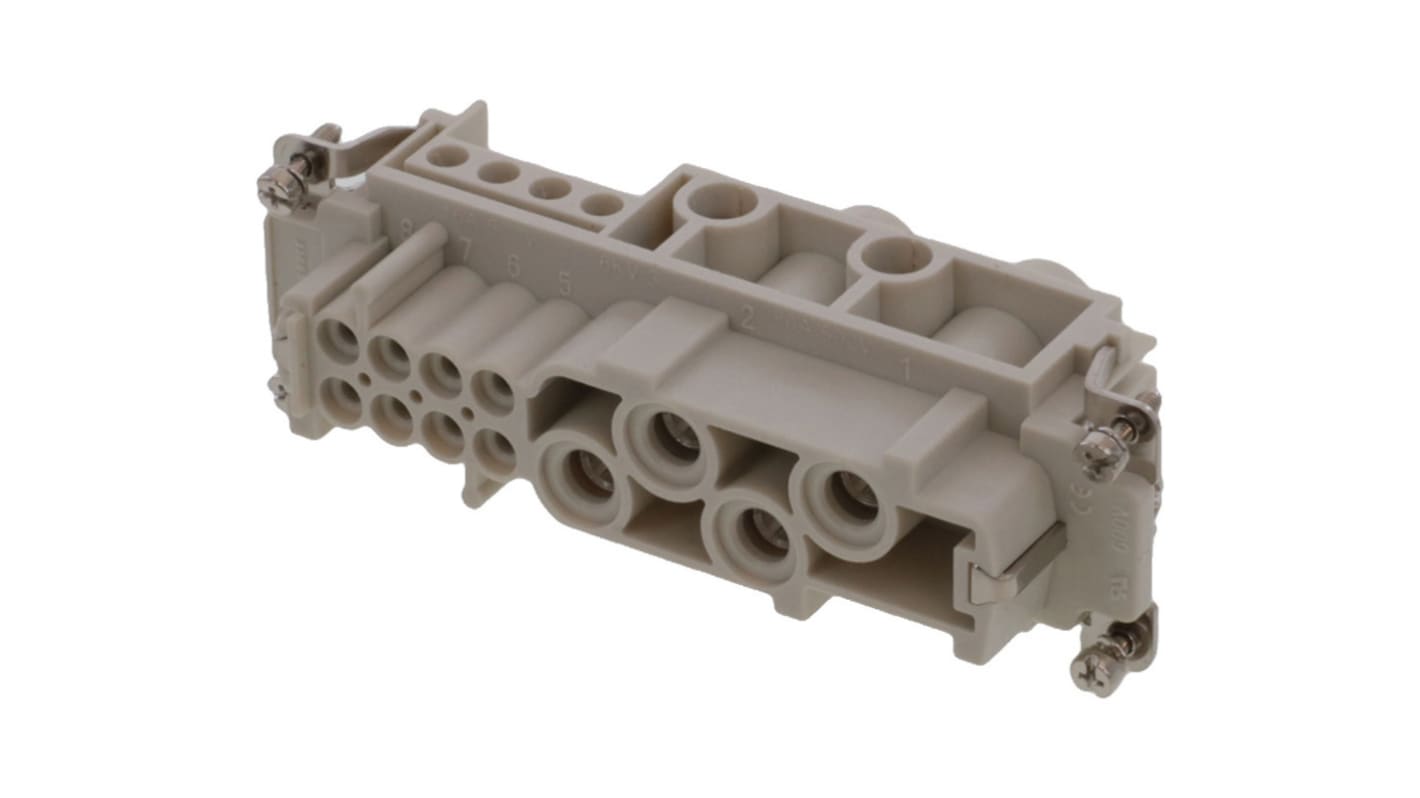

Molex Heavy Duty Power Connector Module, 16A, Female, 93601 Series, 12 Contacts

View this category
Bulk discount available

Subtotal (1 bag of 50 units)*

£1,143.70

(exc. VAT)

£1,372.45

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,950 unit(s) shipping from 28 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
50 - 50£22.874£1,143.70
100 - 200£22.074£1,103.70
250 - 450£21.685£1,084.25
500 +£20.884£1,044.20

*price indicative

RS Stock No.:
250-1945
Mfr. Part No.:
936010245
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Current Rating

16A

Gender

Female

Series

93601

Type

Screw Terminal Insert

For Use With

Electronic Machinery

Number of Contacts

12

Contact Plating

Silver

Contact Material

Copper Alloy

COO (Country of Origin):
CN

Molex 93601 Series Heavy Duty Power Connector Module, 16A Current Rating, 600V Voltage Rating - 936010245


This heavy duty power connector module is designed for reliable industrial power connections, featuring a robust screw terminal insert designed for easy installation. Constructed with a copper alloy contact material, this female power connector is suitable for electronic machinery and manages a current rating of up to 16A.

Features & Benefits


• 16A current rating supports high power demands
• 600V voltage rating ensures safe operation
• Screw terminal design for secure wire connections
• Copper alloy contacts offer excellent conductivity
• Durable design withstands up to 500 mating cycles
• Flammability rated at UL 94V-0 for safety

Applications


• Suitable for use in electronic machinery
• Ideal for industrial power connection needs
• Utilised in environments requiring high current solutions
• Compatible with size 24B hoods and housings
• Effective for various automation

What materials are used in the construction of this connector?


The connector is made from a durable polycarbonate insert with copper alloy contacts and silver plating, ensuring excellent conductivity and resistance to wear.

How does the screw terminal design benefit installation?


The screw terminal design allows for straightforward wire termination, providing a reliable and secure connection while simplifying the installation process.

What is the temperature range for operation?


This connector operates effectively within a temperature range of -40° to +125°C, making it suitable for diverse environmental conditions.

What wire sizes are compatible with the connector?


It accommodates wire sizes from AWG 14-20 and 5-16, providing flexibility for various applications in power connections.
