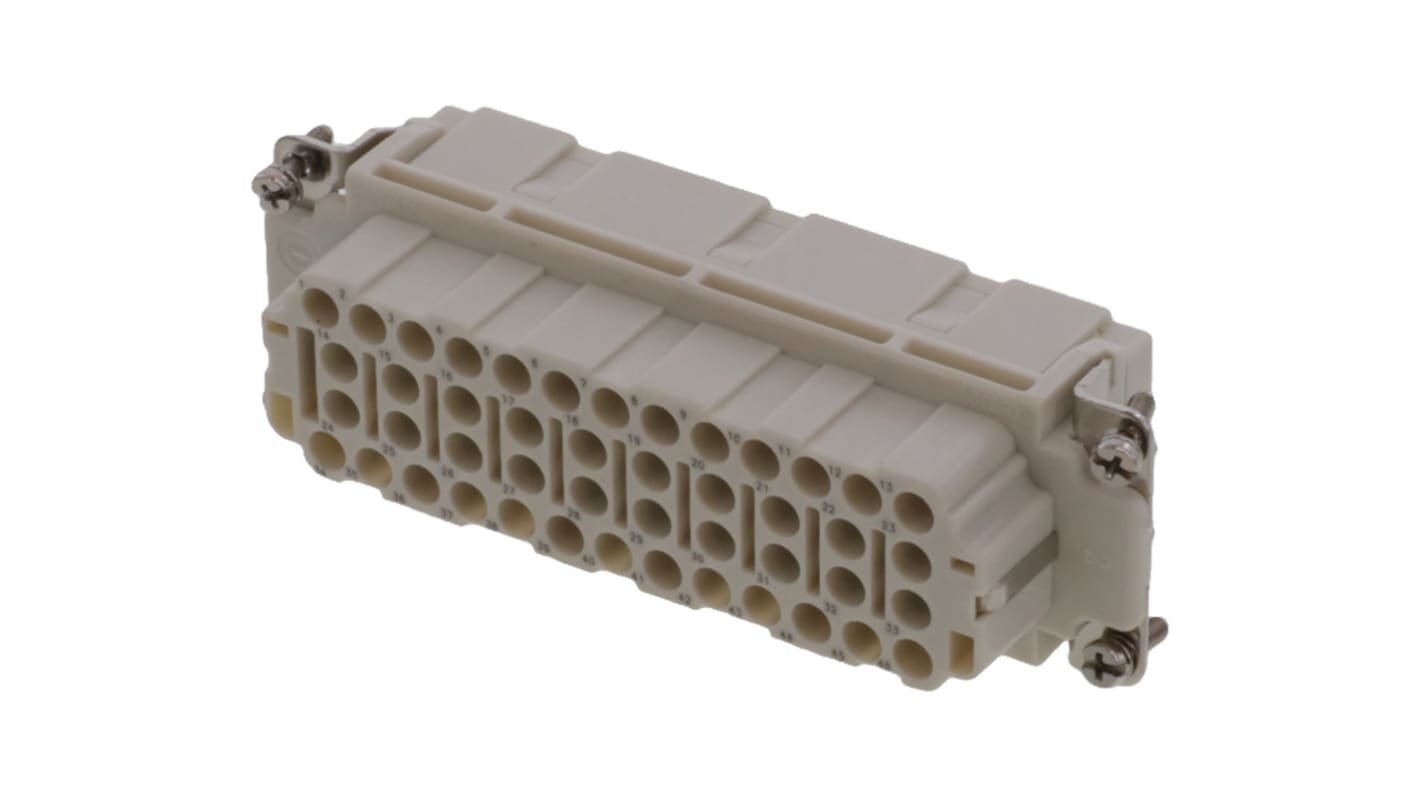

Molex Heavy Duty Power Connector Module, 16A, Female, 93601 Series, 46 Contacts
- RS Stock No.:
- 250-1966
- Mfr. Part No.:
- 936010327
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£19.24
(exc. VAT)
£23.09
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £19.24 |
10 - 99 | £18.62 |
100 - 249 | £17.85 |
250 - 499 | £17.10 |
500 + | £16.18 |
*price indicative
- RS Stock No.:
- 250-1966
- Mfr. Part No.:
- 936010327
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Current Rating | 16A | |
Gender | Female | |
Series | 93601 | |
Type | Crimp Contact Insert | |
Termination Method | Crimp | |
For Use With | Electronic Machinery | |
Pole Format | 46P | |
Number of Rows | 4 | |
Voltage Rating | 500 V | |
Number of Contacts | 46 | |
Series Number | 93601 | |
Contact Material | Polycarbonate | |
Select all | ||
---|---|---|
Brand Molex | ||
Current Rating 16A | ||
Gender Female | ||
Series 93601 | ||
Type Crimp Contact Insert | ||
Termination Method Crimp | ||
For Use With Electronic Machinery | ||
Pole Format 46P | ||
Number of Rows 4 | ||
Voltage Rating 500 V | ||
Number of Contacts 46 | ||
Series Number 93601 | ||
Contact Material Polycarbonate | ||
- COO (Country of Origin):
- CN
Molex 93601 Series Heavy Duty Power Connector Module, 16A Current Rating, 500V Voltage Rating - 936010327
This heavy-duty power connector module is designed for high-current applications. Engineered for electronic machinery, this female crimp contact insert features a unique 46-pole format. With a voltage rating of 500V and a robust crimp termination method, it offers a reliable solution for industrial connector requirements.
Features & Benefits
• Supports a maximum current of 16A per contact
• Rated for voltages up to 500V
• Constructed from durable polycarbonate material
• Accommodates up to 46 contacts for flexible connections
• Designed for reliable crimp terminations
• Rated for voltages up to 500V
• Constructed from durable polycarbonate material
• Accommodates up to 46 contacts for flexible connections
• Designed for reliable crimp terminations
Applications
• Used with electronic machinery for high current distribution
• Ideal for connecting multiple electronic components in industrial environments
• Suitable for automation systems requiring robust connections
• Mates with male crimp contact inserts for versatile
• Ideal for connecting multiple electronic components in industrial environments
• Suitable for automation systems requiring robust connections
• Mates with male crimp contact inserts for versatile
What is the temperature range for operation?
The connector operates effectively in a temperature range of -40°C to +125°C, ensuring dependable performance in various environments.
How does the connector support durability in industrial settings?
This connector is rated for up to 500 mating cycles, which reduces the risk of wear and ensures longevity in high-demand applications.
Can this connector handle specific electrical certifications?
Yes, it complies with standards such as CSA C22.2 NO. 182.3 and UL 1977, ensuring it meets necessary safety regulations for industrial use.
