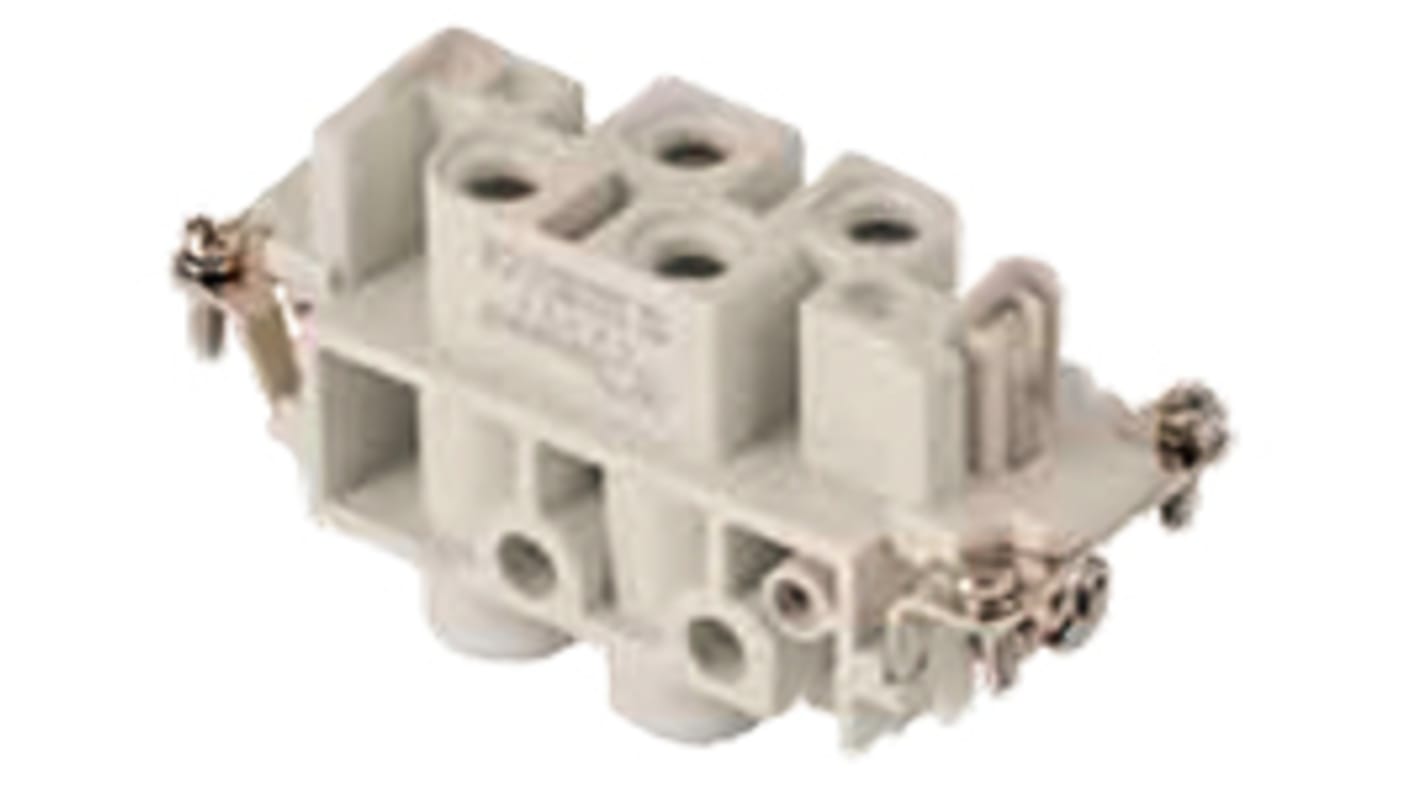

Molex Heavy Duty Power Connector Module, 16A, Female, 93601 Series, 6 Contacts

View this category
Bulk discount available

Subtotal (1 bag of 10 units)*

£269.20

(exc. VAT)

£323.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
10 - 10£26.92£269.20
20 - 40£26.14£261.40
50 - 90£24.696£246.96
100 - 240£23.916£239.16
250 +£22.804£228.04

*price indicative

RS Stock No.:
250-1930
Mfr. Part No.:
936010213
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Current Rating

16A

Gender

Female

Series

93601

Type

Screw Terminal Insert

For Use With

Electronic Machinery

Number of Contacts

6

Contact Plating

Silver

Contact Material

Copper Alloy

COO (Country of Origin):
CN

Molex 93601 Series Heavy Duty Power Connector Module, 16A Current Rating, 830V Voltage Rating - 936010213


This heavy duty power connector module is designed for robust performance in industrial applications. It features a female configuration and incorporates a screw terminal insert with a current rating of 16A, catering specifically to electronic machinery. The product is engineered for durability with its reliable copper alloy contacts and silver plating, enhancing conductivity and strength.

Features & Benefits


• Constructed from a copper alloy for enhanced conductivity
• Features silver-plated contacts to resist corrosion
• Rated for up to 16A per contact for reliable power transmission
• Designed with screw terminal inserts for secure connections
• Utilises a sturdy polycarbonate body for long-lasting use
• Operates effectively in temperatures ranging from -40°C to +125°C

Applications


• Utilised in electronic machinery requiring secure power connections
• Ideal for industrial equipment needing reliable performance
• Employed in automation systems where durability is vital
• Suitable for scenarios requiring high voltage connections

What is the maximum voltage this connector can handle?


The connector is rated for a maximum voltage of 830V, providing ample capacity for high-voltage applications in various industrial settings.

How do the materials used in this connector enhance its performance?


The use of copper alloy for contacts ensures high electrical conductivity, while silver plating protects against oxidation, resulting in a reliable and lasting connection.

Can it accommodate multiple wire sizes?


Yes, it supports wire sizes ranging from AWG 14-20, making it versatile for different electrical configurations in industrial machinery.

How does the design promote ease of installation?


Featuring screw terminal inserts allows for straightforward and secure installation, simplifying the process of connecting wires and ensuring a stable connection.

What maintenance practices are recommended for this connector?


Regular inspections for wear and ensuring clean mating surfaces will help maintain optimal performance and longevity, particularly in high-use environments.
