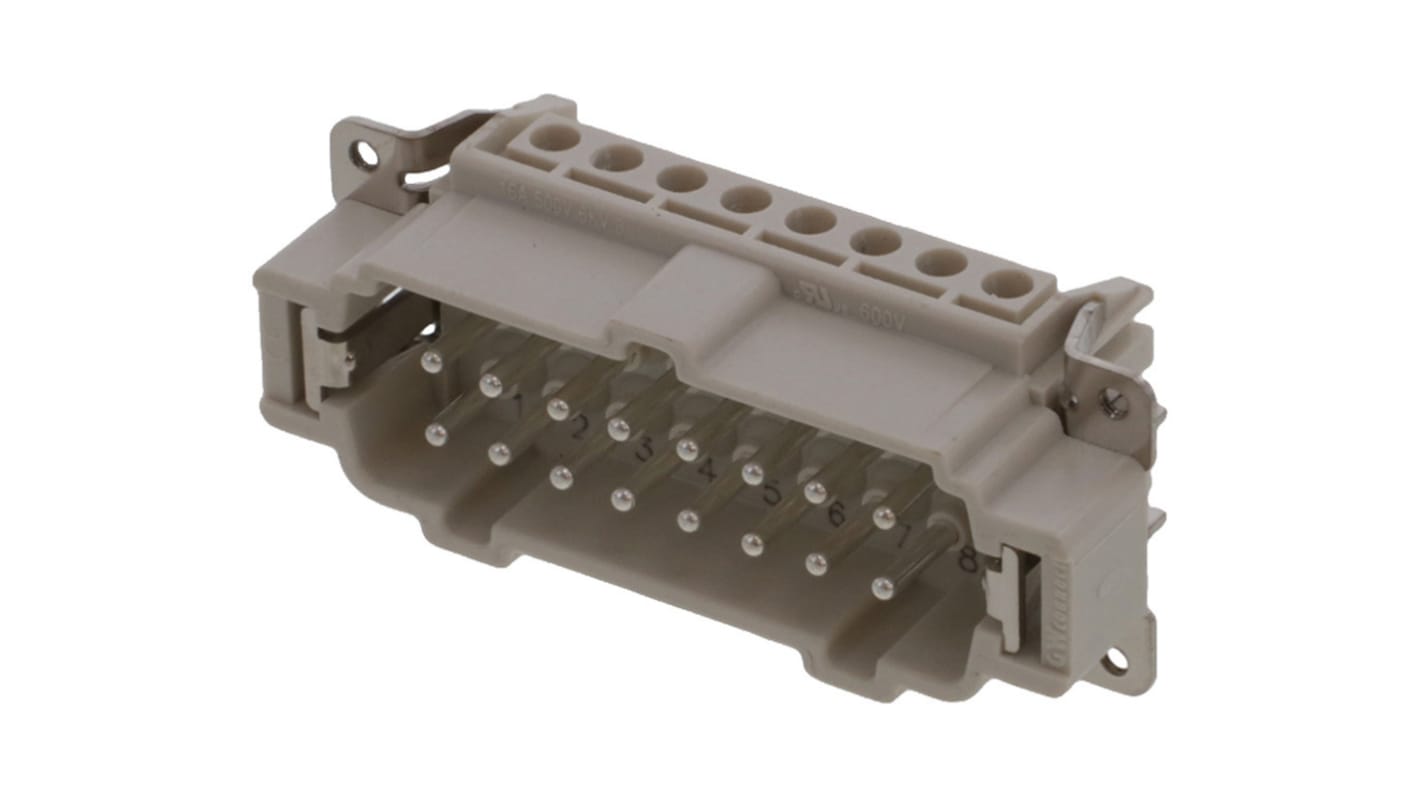

Molex Heavy Duty Power Connector Module, 16A, Male, 93601 Series, 16 Contacts

View this category
Bulk discount available

Subtotal (1 bag of 100 units)*

£920.30

(exc. VAT)

£1,104.40

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
100 - 100£9.203£920.30
200 - 400£9.037£903.70
500 +£8.706£870.60

*price indicative

RS Stock No.:
250-1957
Mfr. Part No.:
936010273
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Current Rating

16A

Gender

Male

Series

93601

Type

Screw Terminal Insert

For Use With

Electronic Machinery

Number of Contacts

16

Contact Material

Copper Alloy

Contact Plating

Silver

COO (Country of Origin):
CN

Molex 93601 Series Heavy Duty Power Connector Module, 16A Current Rating, 500V Voltage Rating - 936010273


This heavy-duty power connector module is designed to meet the demands of high-performance electronic machinery. It features a robust screw terminal insert with a male configuration and accommodates dimensions of size 16B «77x27». Designed for durability and reliability, it caters to various applications requiring substantial electrical connectivity.

Features & Benefits


• Handles a maximum current of 16A for powerful performance
• Accepts wire sizes between 0.5mm² and 2.5mm² for versatile connections
• Rated for a maximum voltage of 500V for high voltage applications
• Constructed with silver-plated contacts for excellent conductivity
• Features a durable polycarbonate body for lasting use
• Offers numbered terminals for straightforward wiring and installation

Applications


• Ideal for connecting electronic machinery in industrial settings
• Utilised in environments requiring high voltage connectivity
• Suitable for use with devices needing robust electrical connections
• Commonly implemented in automation and mechanical

What are the mating cycles this connector can withstand?


It can endure up to 700 mating cycles, ensuring long-term usability without frequent replacements.

How does the screw terminal design benefit installation?


The screw terminal design allows for secure and reliable connections, making installations straightforward and minimising the risk of accidental disconnections.

What operating temperature range can this connector handle?


It operates effectively within a temperature range from -40°C to +125°C, suitable for various environmental conditions.

Can it be used with hoods and housings?


Yes, it is specifically designed to be used with size 16B «77x27» hoods and housings for enhanced protection and organisation.

What is the significance of the wire protection feature?


The wire protection feature helps prevent damage to the wiring, improving safety and reliability in electrical systems.
