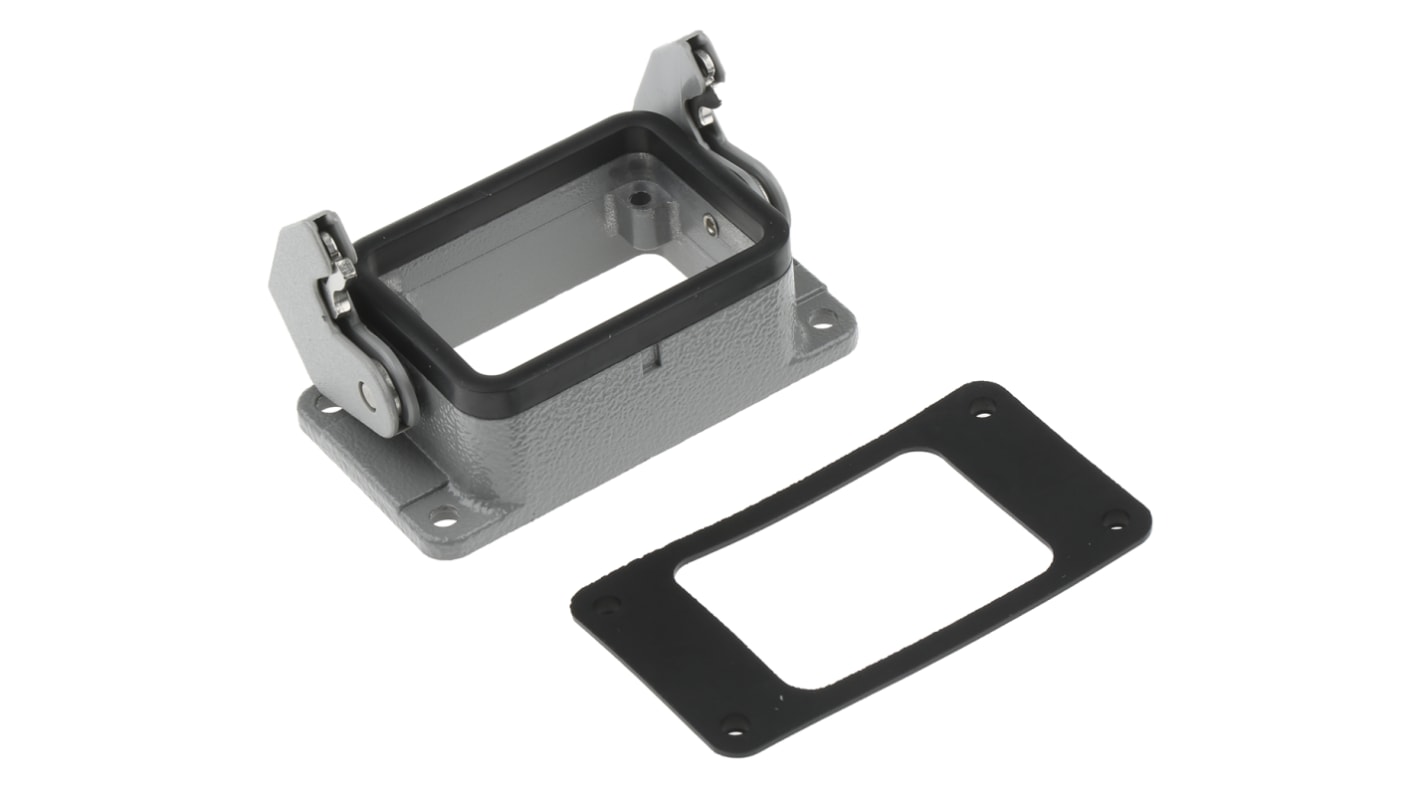

HARTING Han B Heavy Duty Power Connector Housing

Metal or Polycarbonate bodied
Single lever functionality for housing and hoods
Hoods available in high or low types, and options of top or side entry. Bulkhead and surface mounting housings are also available with protective (metal or plastic) covers

Only the Housing stock no. 114-7958 can be used with the Han E AV series. If selecting inserts from the Modular series, please note that two inserts are accommodated within these 6B housings.

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

UL, CSA, SEV

This heavy duty power connector housing is designed for robust applications within the industrial sector. This connector housing features a bulkhead mounting type that provides stability and reliability for electrical connections. With a size classification of 6B and a protective IP rating of IP65, it ensures durability in various environments. Suitable for a wide range of automation, electronics, and mechanical applications, this product offers an efficient solution for your connection needs.

• Provides IP65 protection against dust and water exposure
• Single lever mechanism simplifies connection and disconnection
• Suitable for bulkhead mounting enhancing structural integrity
• Designed for the Han B series ensuring compatibility with other components
• Manufactured with quality materials for long-lasting performance
• size 6B supports high-performance electrical applications

• Used in heavy machinery wiring setups for enhanced stability
• Ideal for automation systems requiring strong and weatherproof connections
• Utilised in outdoor electrical installations needing dependable protection
• Suitable for integration within complex industrial equipment

It supports bulkhead mounting, which ensures secure installation in various applications.

The IP65 rating provides resistance to dust and water, making it ideal for challenging environments.

The size code 6B indicates compatibility with larger components, facilitating high-performance electrical connections.

Yes, its weatherproof design makes it suitable for outdoor electrical installations.

DNV GL
UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076

Range 5 - (Harting Size 6B)

These hoods and housings are compatible with appropriate inserts from the Han® DD, E, ES, EE, EAV, and Modular series.
